Creality ENDER-3 V2 User Manual

06

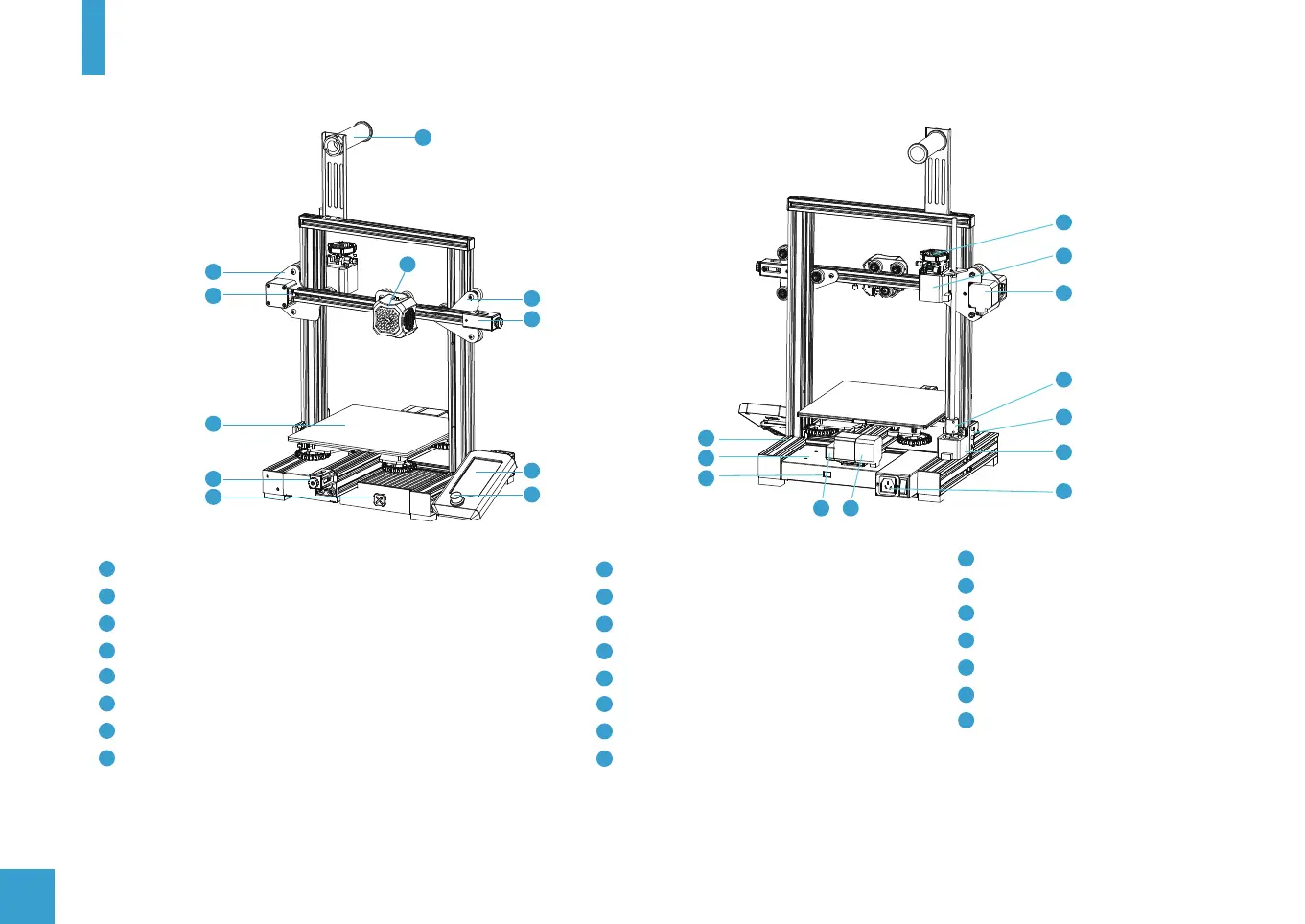

III. Printer Components
1
1
2
3
4
5
6
7
8
9
2
3
4
5
6
7
8
9
10
11
12
13
14
17
18
19
20
21
22
23
15 16
X and E-axis Assembly
X-axis Limit Switch
Printing Platform with Glass Bed and clips.
Y-axis belt Tensioner
Tool Box
Nozzle Assembly
Filament Spool Holder
Z-axis Roller Bracket Assembly
10
11
12
13
14
15
16
17
19
20
21
22
23
18
X-axis belt Tensioner
Screen
Rotary and press Switch
Machine Base
Power Supply
Voltage Selector
Y-axis Limit Switch
Y-axis Motor
Extruder Knob
E-axis Motor
X-axis Motor
Coupling
Z-axis Limit Switch
Z-axis Motor
Power Switch and Socket

Creality ENDER-3 V2 Specifications

General

Build Volume	220 x 220 x 250 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Bed Leveling	Manual
Extruder Type	Bowden
Power Supply	MeanWell 350W
Build Surface	Carborundum Glass
Printing Technology	FDM (Fused Deposition Modeling)
Max. Nozzle Temperature	255°C
Max. Bed Temperature	100°C
Machine Dimensions	475 x 470 x 620 mm
Machine Weight	7.8 kg
Connectivity	USB, SD Card
Supported Materials	PLA, ABS, TPU, PETG
Display Screen	4.3-inch Color LCD
Print Speed	180 mm/s
