18

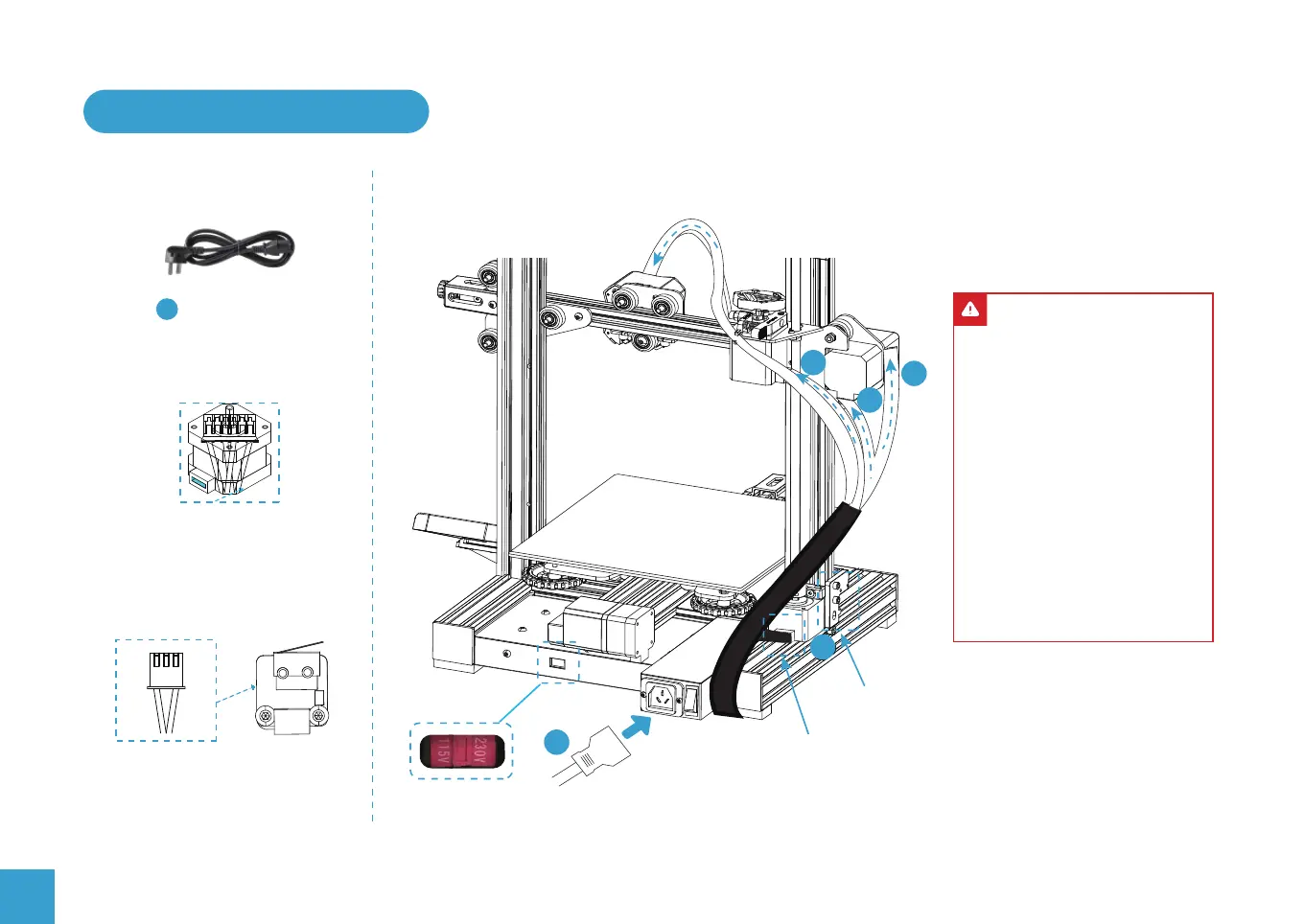

10. Electrical Connections
X, E, Z-axis motor port
X, Z-axis limit switch
Z-axis motor port
Z轴电机接口
Z-axis limit switch
Z轴限位开关
24
X
z
X
E
24
Power Cable x 1
● Select the correct input voltage
to match your local supply
(115/230V)
● Damage can occur if the
voltage is set incorrectly.
● Connect the power cord and
set the power switch to 1 to
turn it on.
● Do not unplug or connect any
cables when the machine is
turned on.
Caution
To Next Page
