60 DM-NVX-36x(C) Encoders/Decoders Product Manual DOC. 8879C

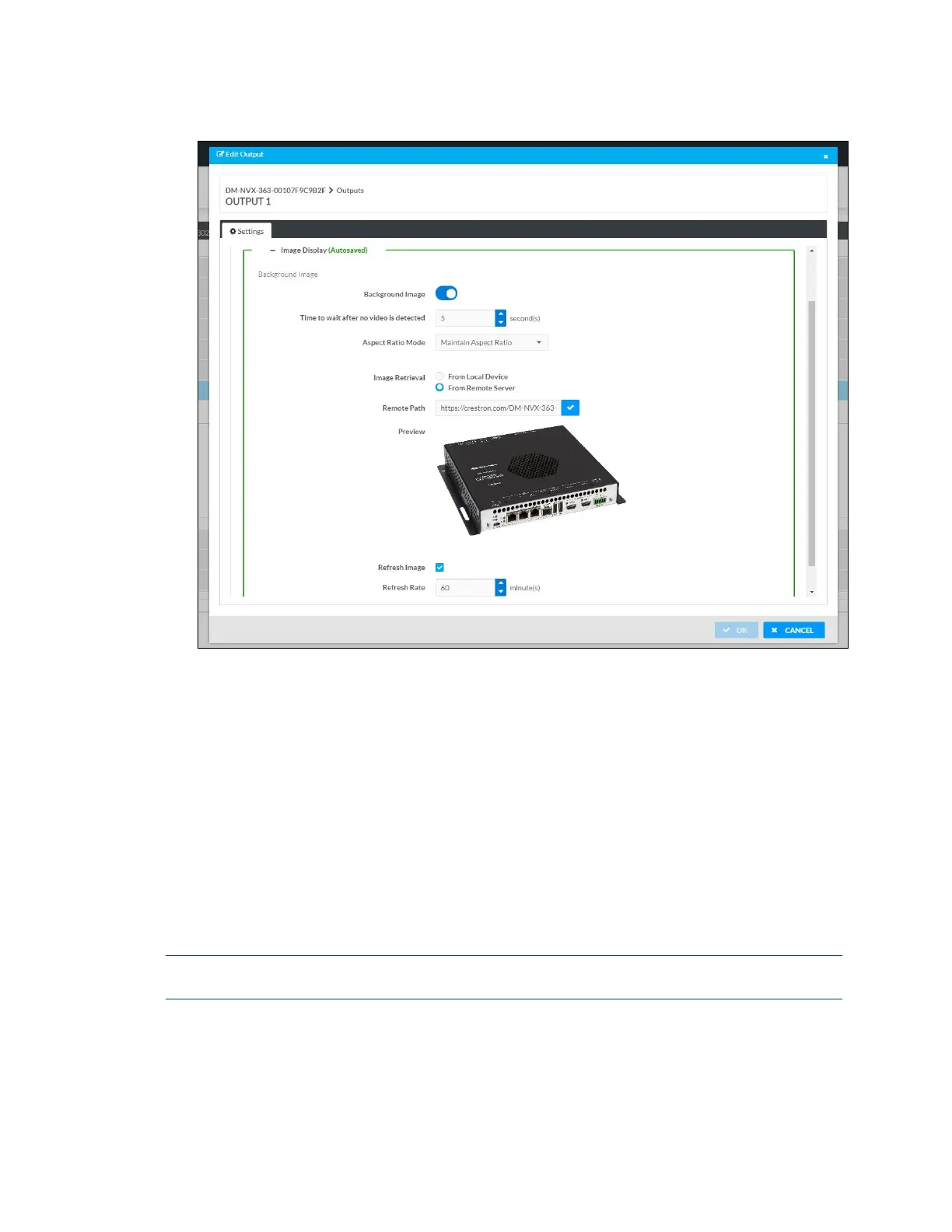

Settings Tab, Outputs, Background Image Retrieval from Remote Server
Using SIMPL Windows
Enable or disable background image functionality in Slot-06-05: Background Image.
Trigger the <Enable> digital input join to enable background image functionality. To
disable background image functionality, trigger the
<Disable> digital input join. For
additional information, refer to the SIMPL Windows help file.
Still Image Detection
Still image detection enables a DM NVX endpoint to detect a still image and pass the
information to a control system. Still image detection occurs when a sync is detected at
the HDMI input (encoder only) or at the HDMI input or stream that is routed to the
HDMI output (decoder only) and 5 seconds have elapsed in which no motion occurred
within the image.
NOTE: Detection of still images is not supported for certain sources in which pixel
changing is occurring within the images but is not visible in the images.
Still image detection is reported in the top-level programming slot of SIMPL Windows
via the
<StillImageDetection_F> analog output join.
