Crestron DM NVX Series User Manual

34 • DM-NVX-36x(C) Encoders/Decoders Product Manual – DOC. 8879C
Using the Web Interface
Configure analog audio by clicking the Settings tab and then configuring routing and
output settings:
1. In the Routing section:
• Set Analog Audio Mode to Insert or Extract.

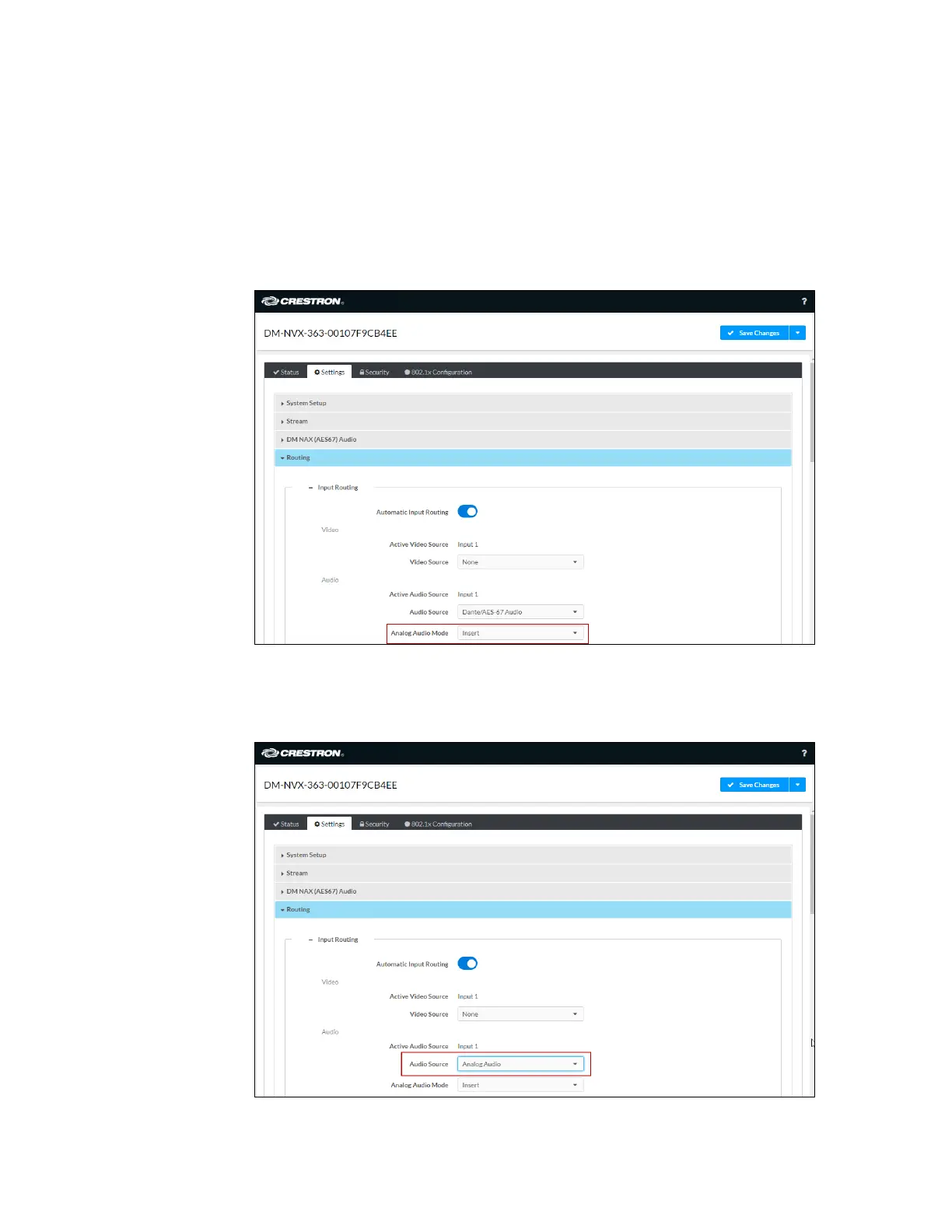

Settings Tab – Routing, Analog Audio Mode Configuration
• (Applicable only when Audio Mode is set to Insert) Set Audio Source to
Analog Audio.
Settings Tab – Routing, Analog Audio Source Configuration

Crestron DM NVX Series Specifications

General

Latency	<1 Frame
Dimensions	Varies by model
Weight	Varies by model
Video Input	HDMI
Video Output	HDMI
Audio Formats	PCM, Dolby Digital, DTS
Audio Inputs	HDMI, Analog
Audio Outputs	HDMI, Analog
Control	Crestron Control System
HDCP	HDCP 2.2
Security	AES encryption
