Physical Description
The following sections provide information about the connectors, controls, and indicators
that are available on the DM-NVX-36x(C) devices.
DM-NVX-363 and DM-NVX-360
This section provides information about the front and rear panels of the DM-NVX-363
and DM-NVX-360.
Front Panel

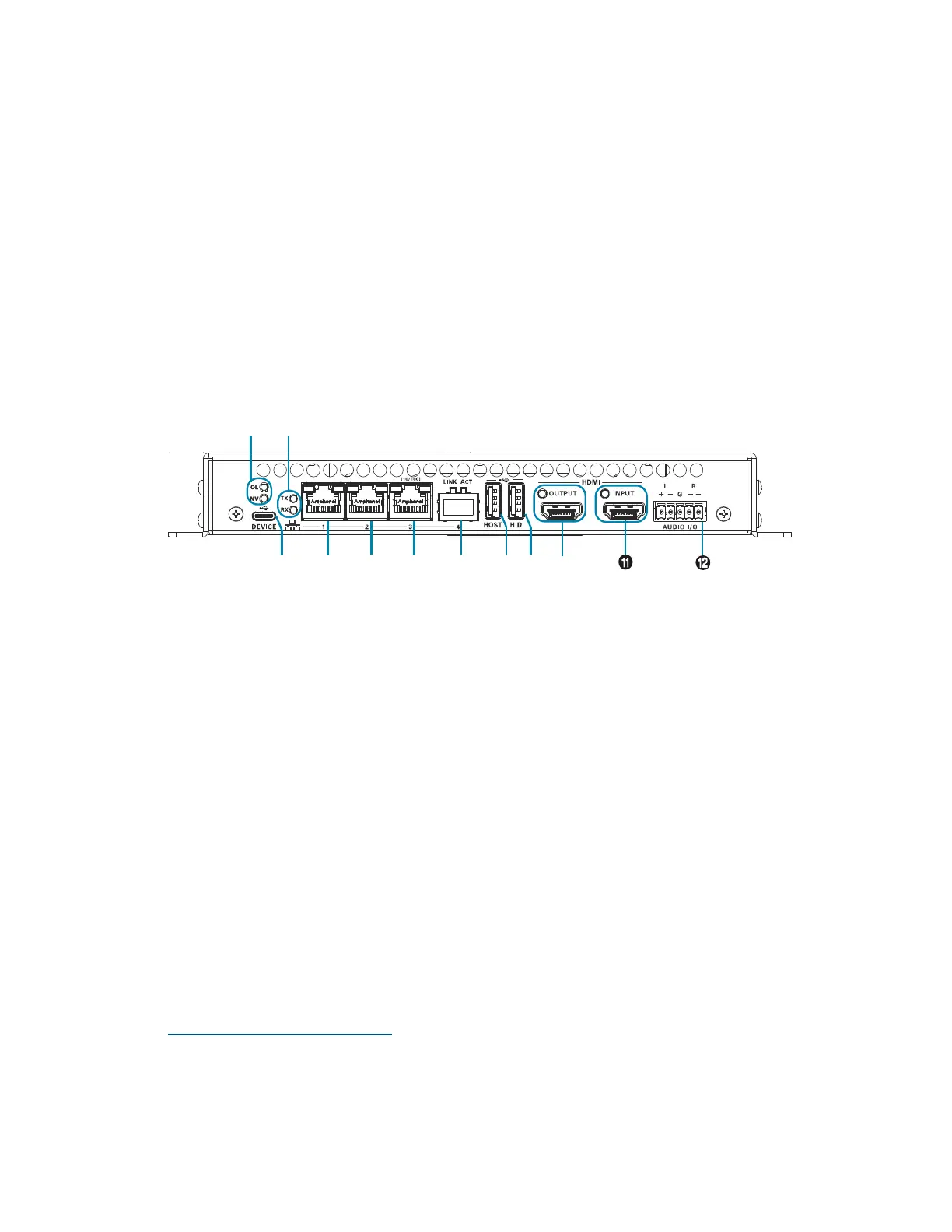

The following illustration shows the front panel of the DM-NVX-363 and DM-NVX-360.
DM-NVX-363 and DM-NVX-360 Front Panel
OL and NV LEDs: Green OL LED indicates that the device is online with a control
system.
Green NV LED indicates that the device is encoding (transmitting) or decoding
(receiving) network video.
TX and RX LEDs: Green TX LED indicates that the device is in transmitter (encoder)
mode.
Green RX LED indicates that the device is in receiver (decoder) mode.
USB DEVICE: USB 2.0 Type-C™ connector, female;
USB 2.0 device port;
USB signal extender port for connection to a computer or other USB 2.0 host
1
Ethernet 1: 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port;
PoE+ PD (powered device) port,
IEEE 802.3at Type 2 PoE+ Class 4 (25.5 W) compliant
2
Green LED indicates Ethernet link status;
Flashing amber LED indicates Ethernet activity
1
The USB DEVICE and USB HOST ports cannot be used simultaneously.
2
In order for Ethernet port 1 to receive PoE+, the port requires connection to a PoE+ compliant Ethernet switch
or other equipment that has a PoE+ PSE port. Ethernet port 1 is compatible with the Crestron DM-PSU-
ULTRA-MIDSPAN, PoE+ compliant Ethernet switch, or third-party IEEE 802.3at compliant PSE. Cabling that
connects to a PoE+ PSE port is designed for intrabuilding use only.
