Product Manual – DOC. 8879C DM-NVX-36x(C) Encoders/Decoders • 29
Configuring DM NAX (AES67) Audio Routing
To configure DM NAX (AES67) audio routing:
1. Click the Settings tab and then clicking Routing.
2. In the Input Routing section:
a. Set Audio Source to DM NAX (AES-67) Audio.
b. Set Analog Audio Mode to Insert or Extract.
c. Set DM NAX (AES-67) Transmit Audio Source to the desired audio source for
the DM NAX (AES67) audio output.

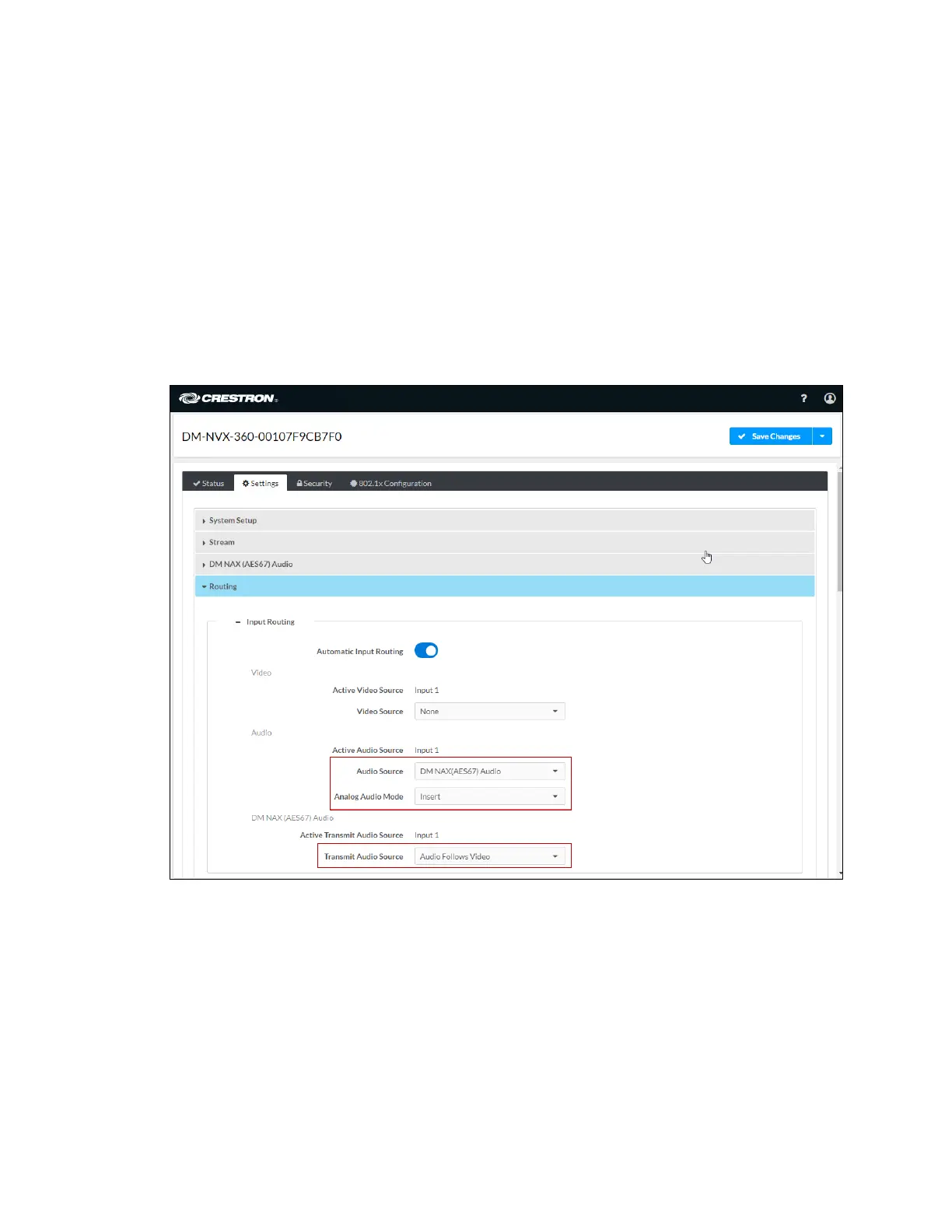

Settings Tab – Routing, DM NAX (AES67) Routing
Using SIMPL Windows
Using the top-level programming slot for the DM-NVX-36x(C) device:
• Set the <AudioSource> analog input join to DM NAX (AES67) audio as the audio
source for the network video stream or HDMI output.
• Set the <DM NAX(AES67)AudioSource> analog input join to the desired value for
the audio source of the DM NAX (AES67) audio output.

Crestron DM NVX Series Specifications

General

Latency	<1 Frame
Dimensions	Varies by model
Weight	Varies by model
Video Input	HDMI
Video Output	HDMI
Audio Formats	PCM, Dolby Digital, DTS
Audio Inputs	HDMI, Analog
Audio Outputs	HDMI, Analog
Control	Crestron Control System
HDCP	HDCP 2.2
Security	AES encryption
