6 • DM-NVX-36x(C) Encoders/Decoders Product Manual – DOC. 8879C
DM-NVX-363C and DM-NVX-360C

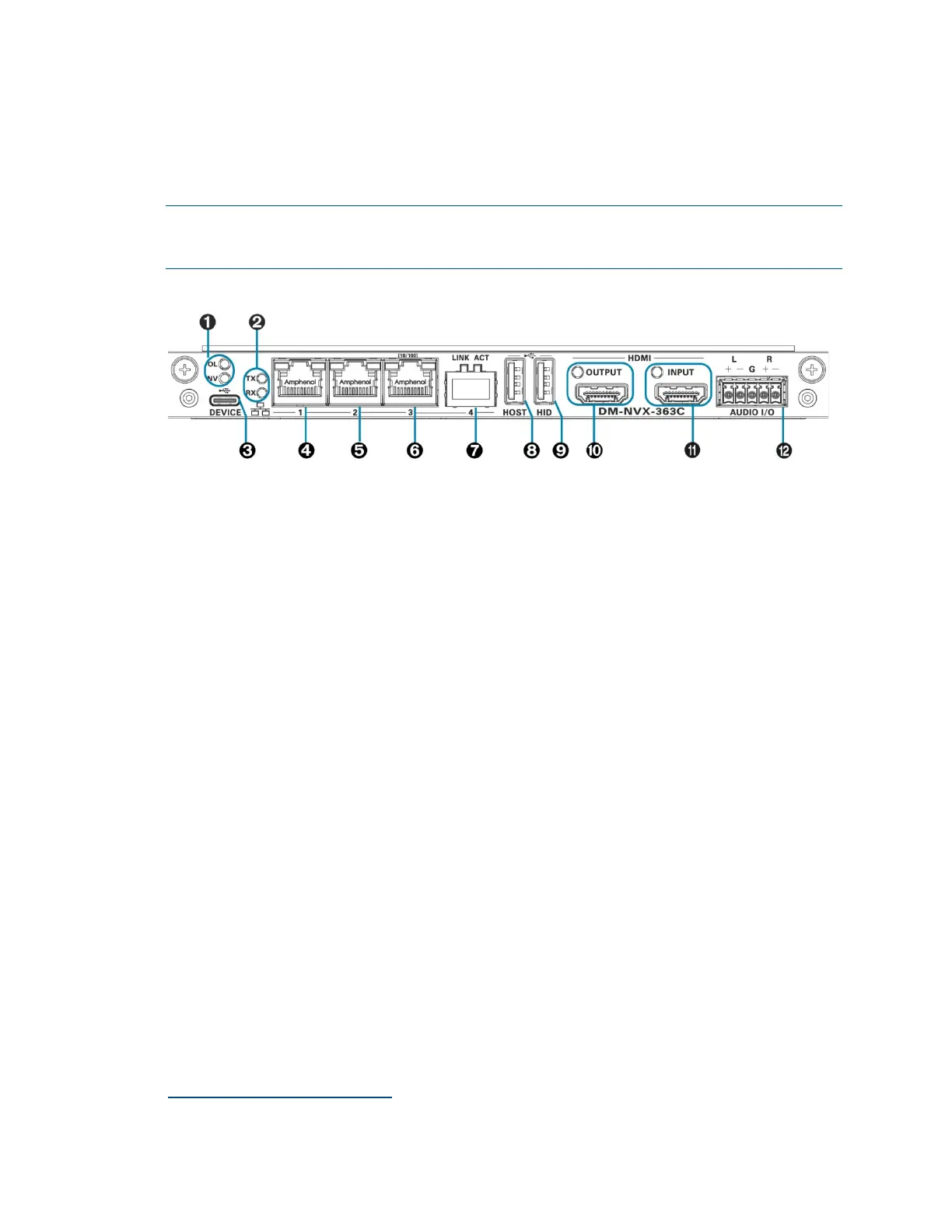

The following illustration shows the connectors, controls, and indicators that are
available on the DM-NVX-363C and DM-NVX-360C.
NOTE: The DM-NVX-363C and DM-NVX-360C contain the same connectors, controls,
and indicators. For illustrative purposes, only the card named DM-NVX-363C is
shown below.
DM-NVX-363C
 OL and NV LEDs: Green OL LED indicates that the device is online with a control
system.
Green NV LED indicates that the device is encoding (transmitting) or decoding
(receiving) network video.
 TX and RX LEDs: Green TX LED indicates that the device is in transmitter (encoder)
mode.
Green RX LED indicates that the device is in receiver (decoder) mode.
 USB DEVICE: USB 2.0 Type-C™ connector, female;
USB 2.0 device port;
USB signal extender port for connection to a computer or other USB 2.0 host
1
 Ethernet 1: 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port;
Green LED indicates Ethernet link status;
Flashing amber LED indicates Ethernet activity
 Ethernet 2: 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port;
Green LED indicates Ethernet link status;
Flashing amber LED indicates Ethernet activity
 Ethernet 3: 8-pin RJ-45 connector, female;
100BASE-TX Ethernet port;
Green LED indicates Ethernet link status;
Flashing green LED indicates Ethernet activity;
Amber LED indicates 100BASE-TX link status
1
The USB DEVICE and USB HOST ports cannot be used simultaneously.

Crestron DM NVX Series Specifications

General

Latency	<1 Frame
Dimensions	Varies by model
Weight	Varies by model
Video Input	HDMI
Video Output	HDMI
Audio Formats	PCM, Dolby Digital, DTS
Audio Inputs	HDMI, Analog
Audio Outputs	HDMI, Analog
Control	Crestron Control System
HDCP	HDCP 2.2
Security	AES encryption
