Test Pattern Generator
NOTE: Test pattern generator applies to a DM-NVX-36x(C) device that functions as
a transmitter.
The built-in test pattern generator can be used during setup to ensure that video
streaming is functional and can also be used as a tool for the adjustment, calibration,
and alignment of displays, projectors, and video walls.
A DM NVX encoder can send the test pattern to any routed DM NVX decoder. The test
pattern generator can be configured using the web interface or SIMPL Windows.
Using the Web Interface
Configure the test pattern generator by clicking the Settings tab and then clicking Test
Pattern Generator.

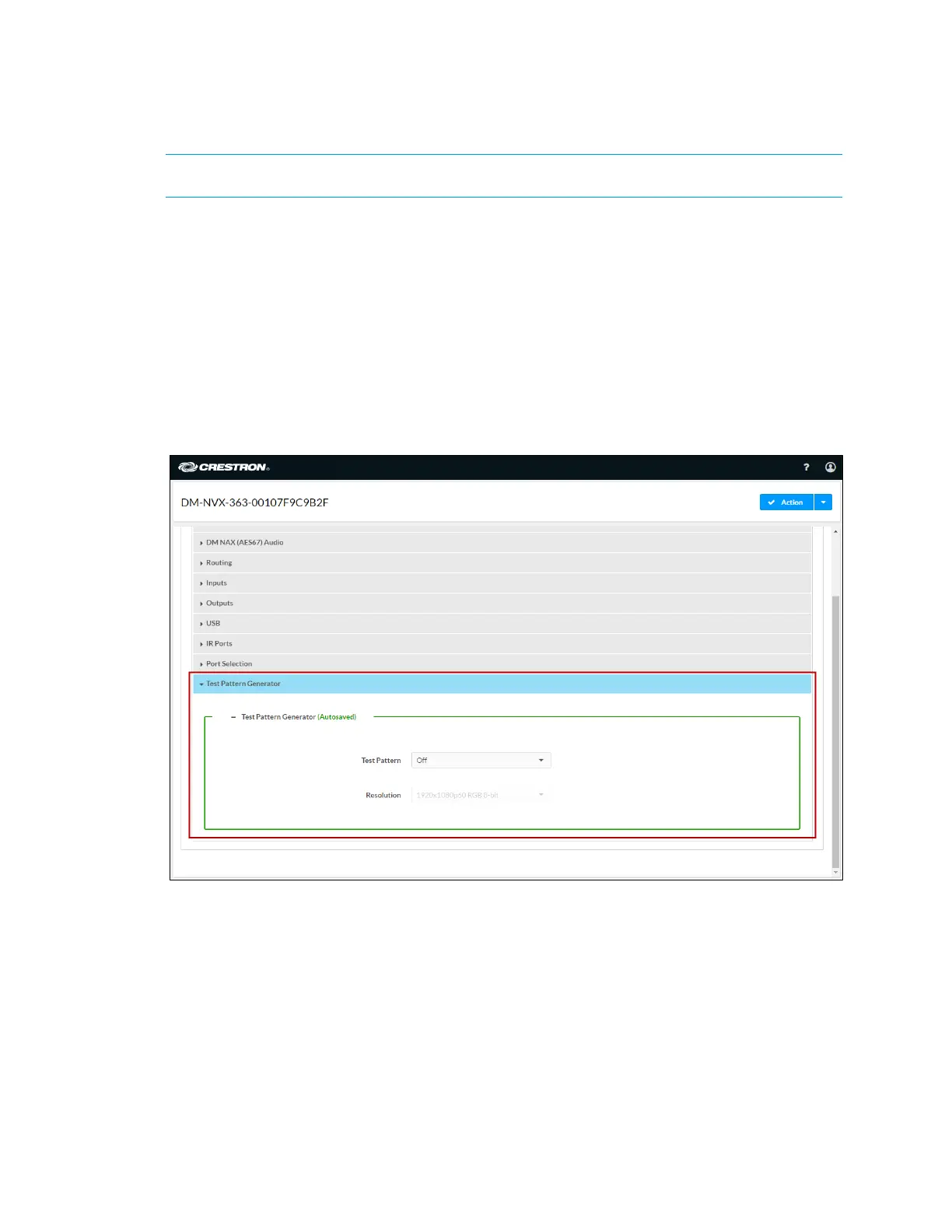

Settings Tab - Test Pattern Generator
