2. (Applicable only if Analog Audio Mode is set to Extract) Under the Settings tab:
• Click Outputs and then click the Edit button.
• In the Analog Settings section, set Analog Audio Volume to the desired
volume.

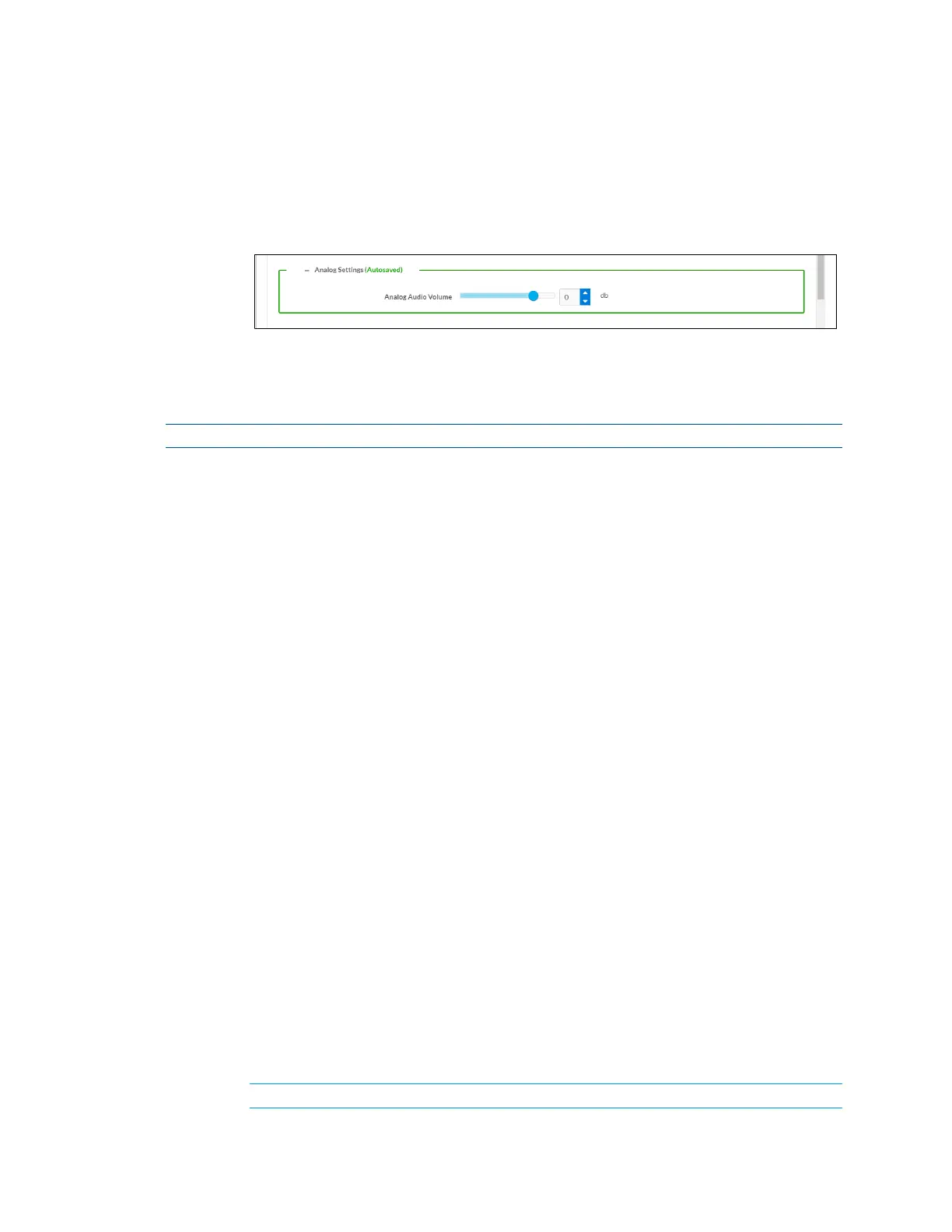

Settings Tab - Outputs - Analog Settings
For additional information, refer to the online help of the web interface.
Using SIMPL Windows
NOTE: To insert or extract analog audio, use the web interface.
Using the top-level programming slot for the DM NVX device, set the <AudioSource>
analog input join to
Analog Audio if analog audio is to be inserted into a network video
stream or the HDMI output. If analog audio is configured as an output, set the
<AnalogAudioOutputVolume> analog input join to the desired volume. For additional
information, refer to the SIMPL Windows help file.
Breakaway Audio
A DM-NVX-36x(C) decoder can select and combine separate video and audio signals
from two different inputs—even two different encoders. In receiver mode, a DM-NVX-
36x(C) device can combine separate video and audio signals from two different DM-
NVX-36x(C) transmitters. Combining audio from one transmitter with video from
another transmitter uses the secondary 2-channel audio stream. Multichannel audio
from one transmitter cannot be combined with video from another transmitter.
Using the Web Interface
To configure breakaway audio:
1. Click the Settings tab and then click Routing.
2. In the Input Routing section:
a. Set Audio Source to one of the following:
- Input 1
- Analog Audio
- Primary Stream Audio
- DM NAX (AES67) Audio
- Dante/AES-67 Audio (DM-NVX-363[C] only)
NOTE: For breakaway audio, do not set Audio Source to Audio Follows Video.
