Supplemental Guide Doc. 8327D TSS-7/TSS-10 7
l Use the keypad to make a new entry.
l Tap the clear button in the text field to clear any previous entry.
l Tap the delete button to delete the last digit.
l Tap Save to save a new entry or tap < CANCEL to discard any changes. The display
returns to the Static IP Ethernet Setup screen.
After new settings have been saved, tap APPLY CHANGES on the Static IP Ethernet Setup
screen to apply the new settings and stay in setup mode. Tap REBOOT to exit setup mode
and reboot the touch screen.
Tap < BACK to return to the Ethernet Setup screen.
Tap < BACK on the Ethernet Setup screen to return to the Setup screen.
Diagnostics &Advanced
Tap Diagnostics on the Setup screen to display the Diagnostics & Advanced screen.

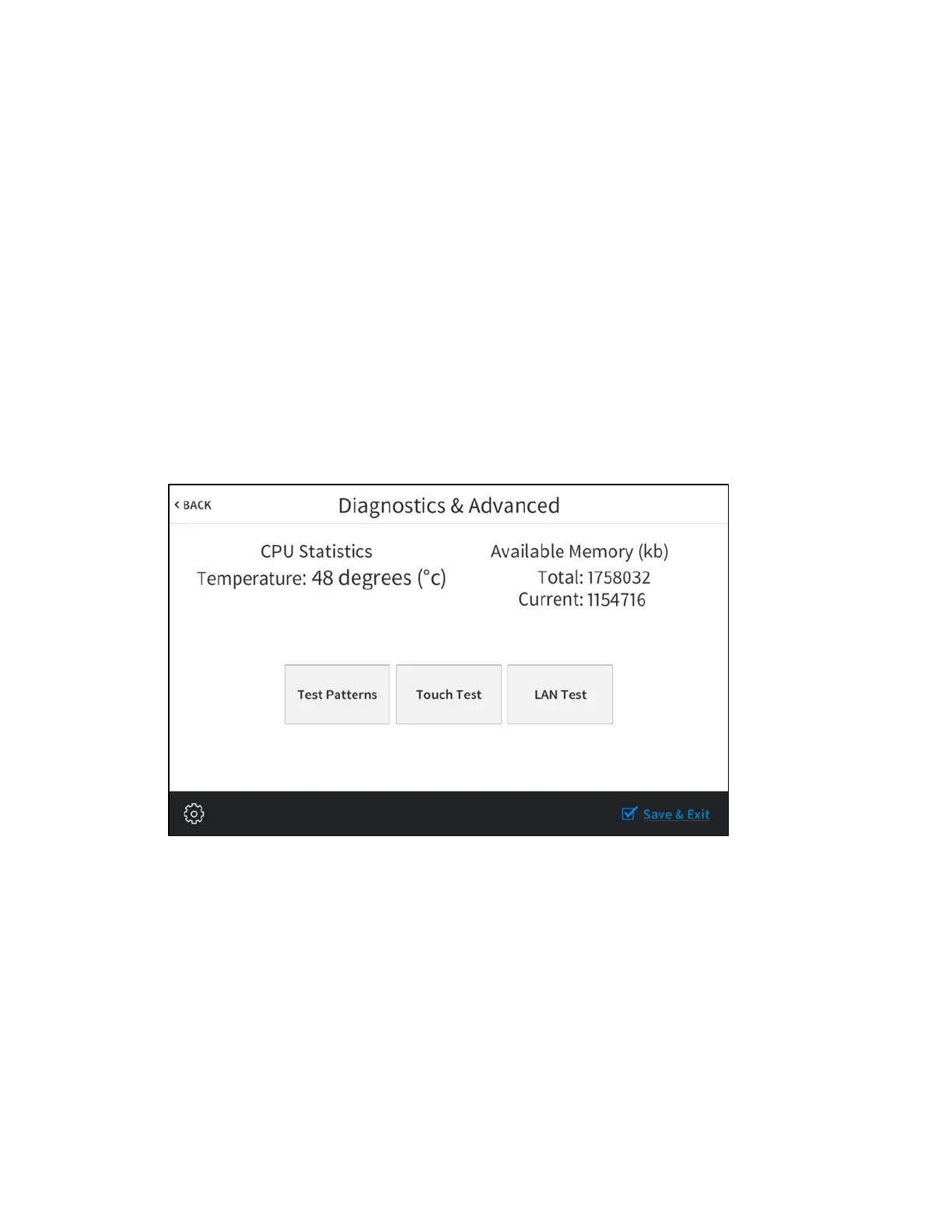

Diagnostics & Advanced Screen
Use the Diagnostics & Advanced screen to access various diagnostic test screens for the
touch screen. The Diagnostics & Advanced screen also provides the touch screen CPU
temperature and available memory.
Each test screen is described in the sections that follow.
