10 • TSS-7/TSS-10 Supplemental Guide — Doc. 8327D
LANTest
Tap LAN Test on the Diagnostics & Advanced screen to display the EthernetDiagnostics
screen.

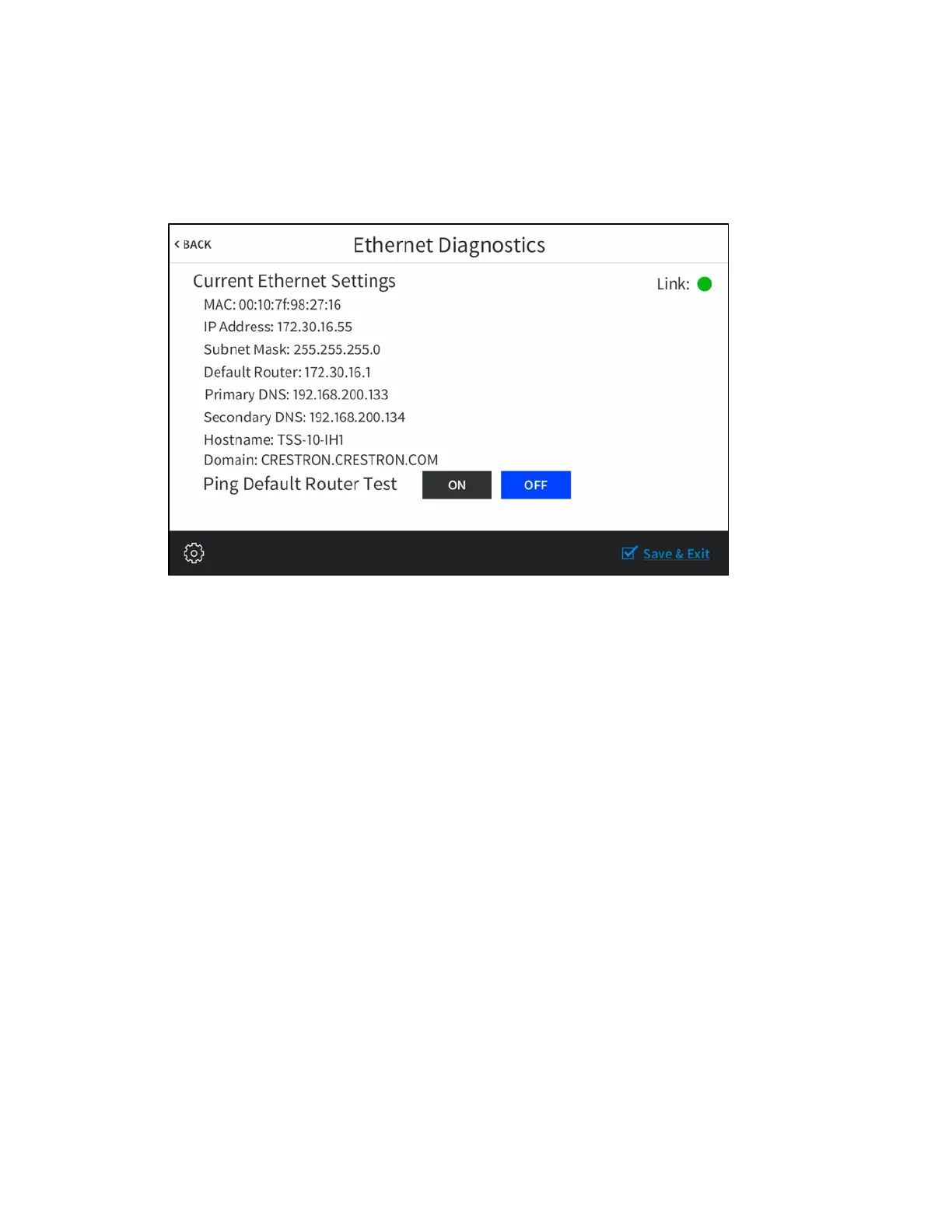

Ethernet Diagnostics Screen
Use the Ethernet Diagnostics screen to view and test the Ethernet connection. The
Ethernet Diagnostics screen displays the touch screen MAC and IP addresses, subnet
mask address, default router address, primary and secondary DNS addresses, hostname,
and domain name. A Link indicator is provided to indicate the status of the Ethernet
connection. (Green indicates that the Ethernet connection is active.)
The Ethernet Diagnostics screen also provides controls to test the connection to the
default router. Tap On to begin the test and Off to end the test.
During the router test, the touch screen pings the default router. If the router is
communicating with the touch screen, connection data is displayed below the ping test
controls within five seconds. The connection data updates after every successive ping.
Tap < BACK to return to the Diagnostics & Advanced screen.

Crestron TSS-7 Specifications

General

HD type	WSVGA
Panel type	TFT
Screen shape	Flat
LED backlight	Yes
Backlight type	Edge LED
Display diagonal	7 \
Touch technology	Multi-touch
Touchscreen type	Multi-user
Display brightness	350 cd/m²
Display resolution	1024 x 600 pixels
Display technology	LCD
Native aspect ratio	17:10
Touchscreen technology	Projected capacitive system
Contrast ratio (typical)	1100:1
Display number of colors	16.78 million colors
Display diagonal (metric)	17.8 cm
Viewing angle, horizontal	160 °
Number of simultaneous touchpoints	5
Certification	UL®, CE, IC, FCC Part 15 Class B
Product color	Black
Housing material	Plastic
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Number of OSD languages	18
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FRE, ITA, JPN, KOR, NOR, POR, SWE
Bundled software	Crestron Fusion® software, Microsoft Exchange Server® / Office 365® software, Google Calendar™ / G Suite™ software, CollegeNET® 25Live® software, Ad Astra™
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Sustainability certificates	CE
NVIDIA G-SYNC	No

Weight and Dimensions

Depth (without stand)	39 mm
Width (without stand)	194 mm
Height (without stand)	122 mm
Weight (without stand)	400 g
