8 TSS-7/TSS-10 Supplemental Guide Doc. 8327D
Test Patterns
Tap Test Patterns on the Diagnostics & Advanced screen to display the Test Pattern
Diagnostics screen.

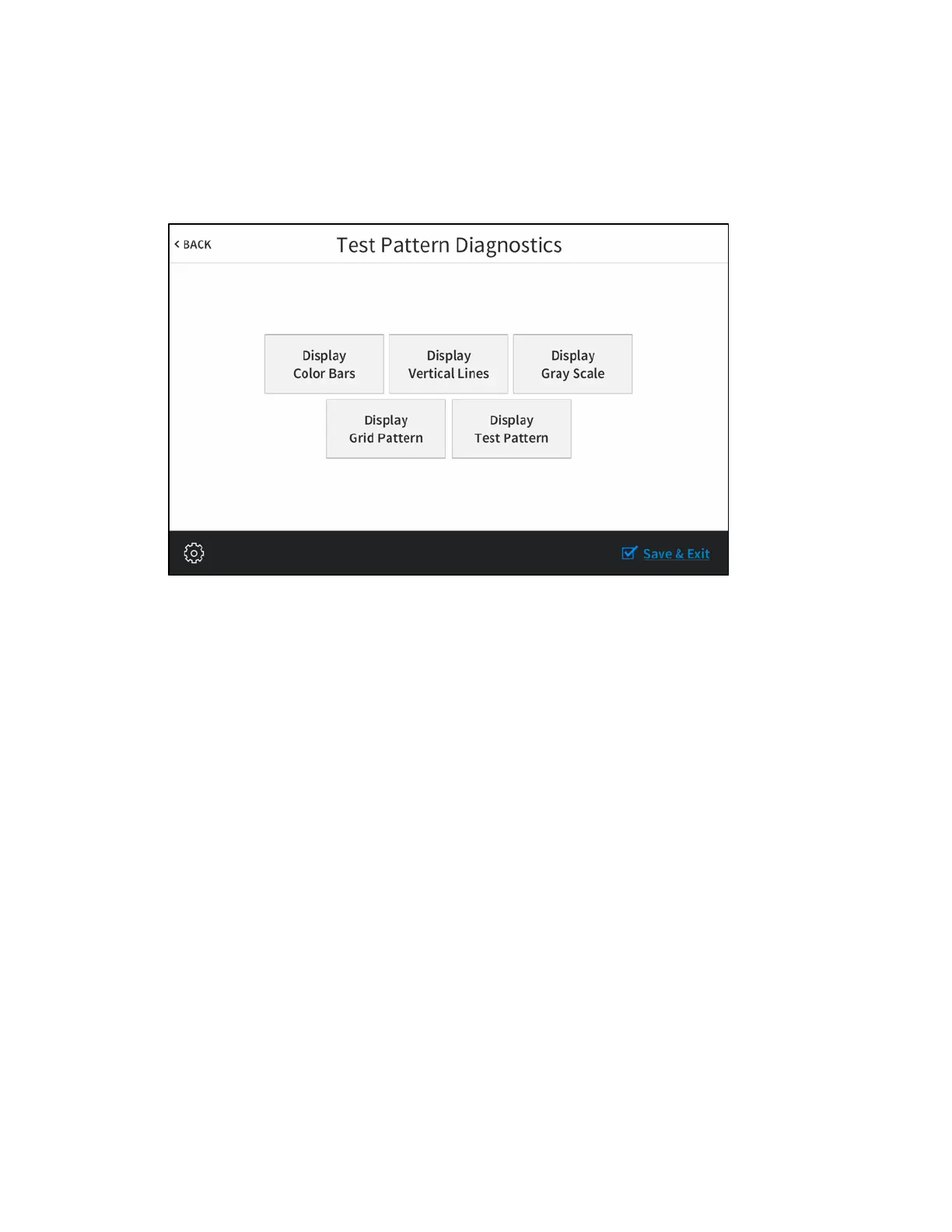

Test Pattern DiagnosticsScreen
Use the Test Pattern Diagnostics screen to display any of the available test patterns. Tap
one of the buttons on the screen to display its respective test pattern.
Tap < BACK to return to the Diagnostics & Advanced screen.
