Crestron TSS-7 User Manual

Supplemental Guide — Doc. 8327D TSS-7/TSS-10 • 29
User Details
Click the information button in the Actions column to view information for the selected
user. The User Details pop-up dialog box is displayed.

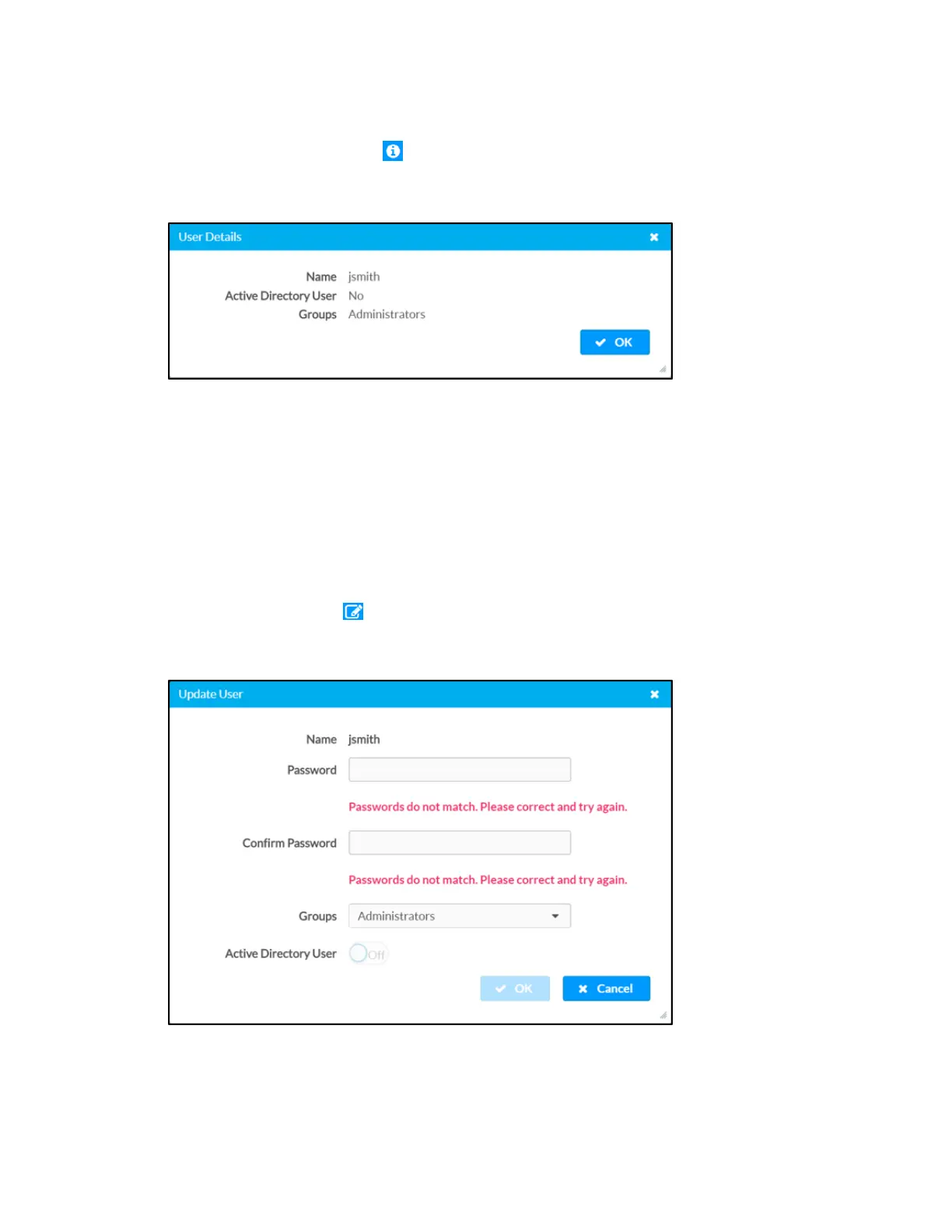

User Details Dialog Box
The following settings are displayed for the current user:
l Name: The chosen username
l Active Directory User: Reports whether the user is (Yes) or is not (No) authenticated
through Active Directory
l Groups: Lists any groups that contain the user
Click OK to return to the Authentication Management > Users page.
Update User
Click the editing button in the Actions column to edit settings for the selected user. The
Update User dialog box is displayed.
Update User Dialog Box

Crestron TSS-7 Specifications

General

HD type	WSVGA
Panel type	TFT
Screen shape	Flat
LED backlight	Yes
Backlight type	Edge LED
Display diagonal	7 \
Touch technology	Multi-touch
Touchscreen type	Multi-user
Display brightness	350 cd/m²
Display resolution	1024 x 600 pixels
Display technology	LCD
Native aspect ratio	17:10
Touchscreen technology	Projected capacitive system
Contrast ratio (typical)	1100:1
Display number of colors	16.78 million colors
Display diagonal (metric)	17.8 cm
Viewing angle, horizontal	160 °
Number of simultaneous touchpoints	5
Certification	UL®, CE, IC, FCC Part 15 Class B
Product color	Black
Housing material	Plastic
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Number of OSD languages	18
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FRE, ITA, JPN, KOR, NOR, POR, SWE
Bundled software	Crestron Fusion® software, Microsoft Exchange Server® / Office 365® software, Google Calendar™ / G Suite™ software, CollegeNET® 25Live® software, Ad Astra™
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Sustainability certificates	CE
NVIDIA G-SYNC	No

Weight and Dimensions

Depth (without stand)	39 mm
Width (without stand)	194 mm
Height (without stand)	122 mm
Weight (without stand)	400 g
