Supplemental Guide Doc. 8327D TSS-7/TSS-10 35
l Enable Authentication Server Validation: Toggle the switch to enable or disable using
server validation for increased security.
l Select Trusted Certificate Authorities: Select trusted CAs (Certificate Authorities)
from the provided CAs to be used for server validation:
o
Click the check box to the left of a CA to select it as a trusted CA.
o
Enter a search term into the text field at the top of the CA menu to search for
and display CAs that match the search term.
o
Click the check box to the left of the search field at the top of the CA menu to
select all CAs as trusted CAs.
Click Manage Certificates to add or remove CAs from the list. The Manage Certificates
dialog box is displayed with the Root tab selected.

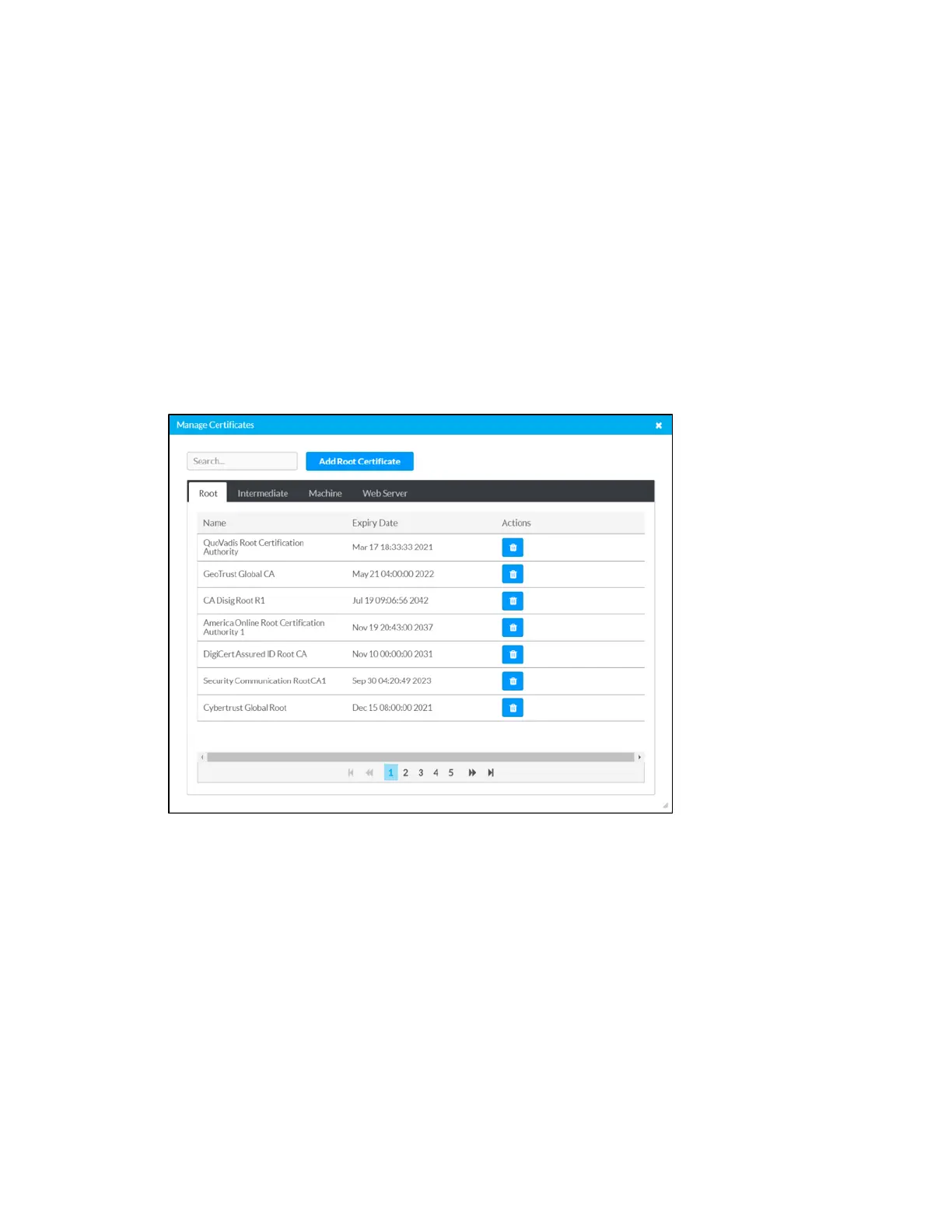

Manage Certificates Dialog Box - Root Tab
Click the tabs near the top of the page to switch between the different types of CAs (Root,
Intermediate, Machine, or Web Server). The same settings are provided for each type of
CA.
Type a search term into the Search… text field to search for and display CAs that match
the search term.
The following information is provided for each type of CA:
l Name: The CA name
l Expiry Date: The date and time that the CA is set to expire
If the CAs span multiple pages, use the navigation arrows on the bottom of the page to
move forward or backward through the pages, or select a page number to navigate to that
page.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Crestron TSS-7 and is the answer not in the manual?

Crestron TSS-7 Specifications

General IconGeneral
HD typeWSVGA
Panel typeTFT
Screen shapeFlat
LED backlightYes
Backlight typeEdge LED
Display diagonal7 \
Touch technologyMulti-touch
Touchscreen typeMulti-user
Display brightness350 cd/m²
Display resolution1024 x 600 pixels
Display technologyLCD
Native aspect ratio17:10
Touchscreen technologyProjected capacitive system
Contrast ratio (typical)1100:1
Display number of colors16.78 million colors
Display diagonal (metric)17.8 cm
Viewing angle, horizontal160 °
Number of simultaneous touchpoints5
CertificationUL®, CE, IC, FCC Part 15 Class B
Product colorBlack
Housing materialPlastic
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 - 90 %
Number of OSD languages18
On Screen Display (OSD) languagesCHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FRE, ITA, JPN, KOR, NOR, POR, SWE
Bundled softwareCrestron Fusion® software, Microsoft Exchange Server® / Office 365® software, Google Calendar™ / G Suite™ software, CollegeNET® 25Live® software, Ad Astra™
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN (RJ-45) ports1
Sustainability certificatesCE
NVIDIA G-SYNCNo
Weight and Dimensions IconWeight and Dimensions
Depth (without stand)39 mm
Width (without stand)194 mm
Height (without stand)122 mm
Weight (without stand)400 g
