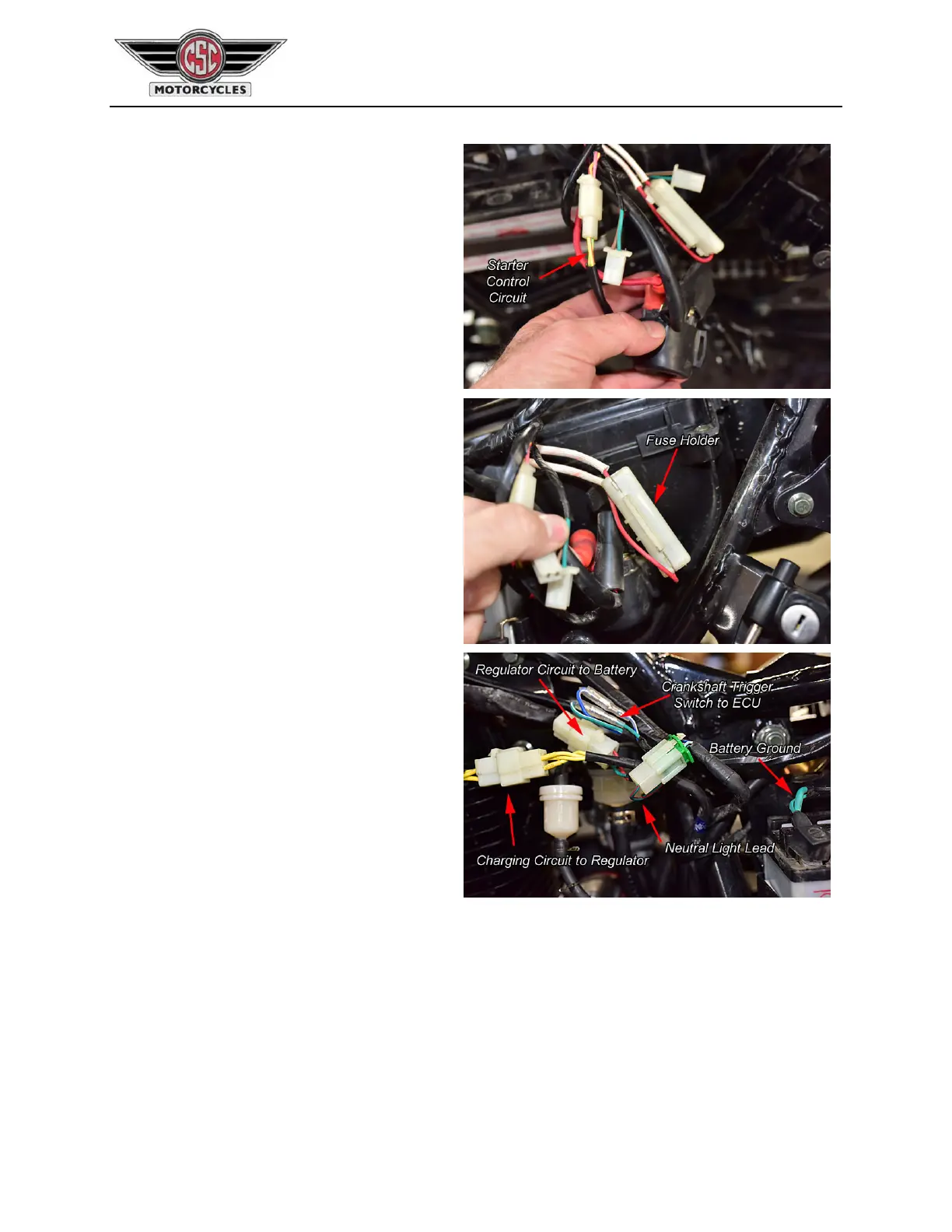

Asyoucanseeinthephoto,thestarterrelayis
attachedtotheframewitharubbercarrierthat
fitsovertabsprotrudingfromtheframe.

Themotorcycle’sonlyelectricalfuseislocated
inacarrierbehindthebattery.Thispopsopen
toprovideaccesstothefuse.

If
themotorcyclelosesallelectricalpower,
thereareseveralpotentialcauses,butthemost
likely arethatthefusehasopened,orthe
enginekillswitchisintheoffposition.
Severaloftheconnectorsandharnessesinthe
batteryarea(ontheleftsideofthemotorcycle)
areidentified
inthesephotos.

