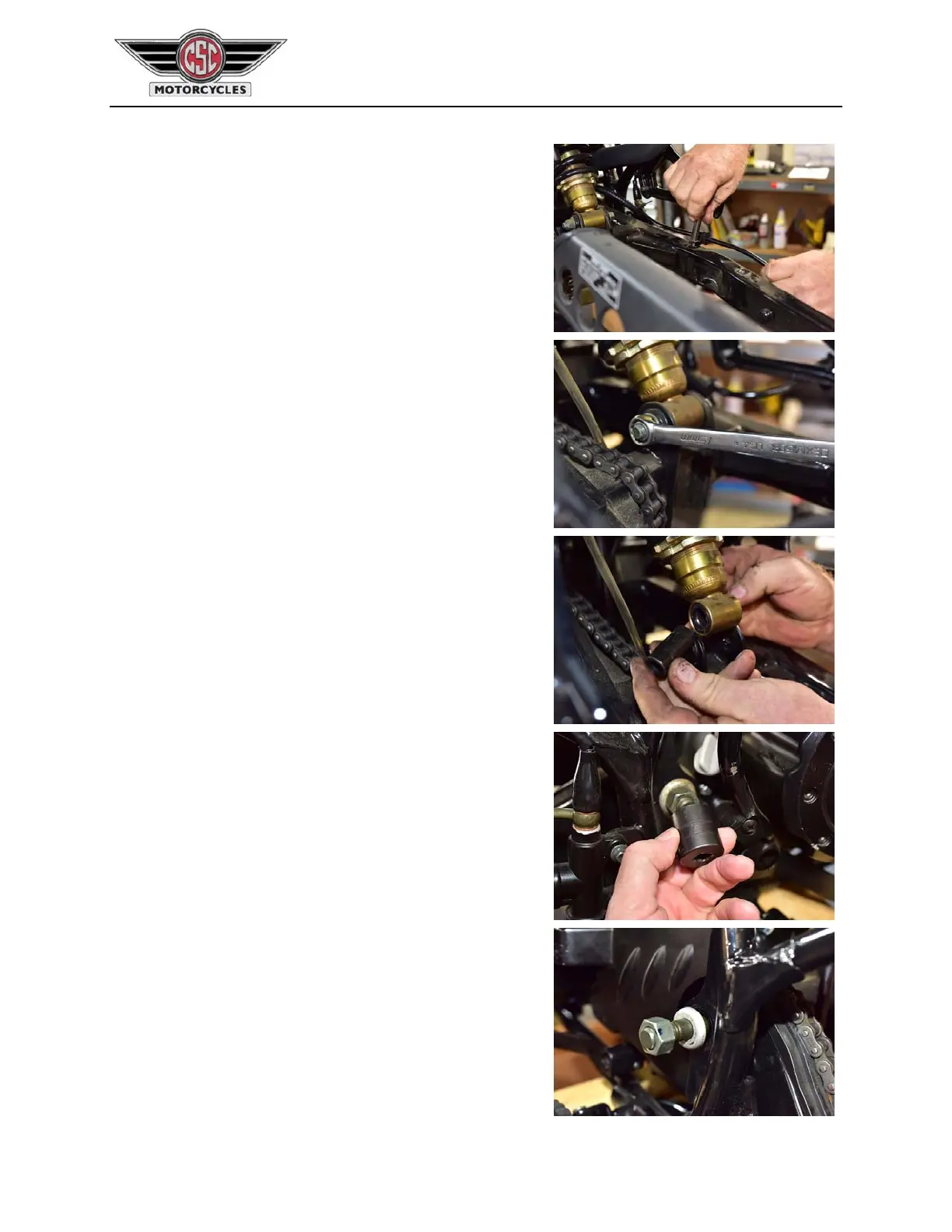

Detachtherearbrakelinekeepersfrom theswingarm.
Removethenutandboltthatat tachestherearshock
absorbertotheswingarm.
Rotatethelowerportionoftherearshockabsorbertoclear
theswingarmmountingbracket,andremovethebushing
fromtherearshockabsorber.
Unboltthenutssecuring
theswingarmpivotaxle.
Therewillbedustcaps/washersontheframebetweenthe
swingarmaxlenutsand theframe.Removetheseandset
themaside.
