97


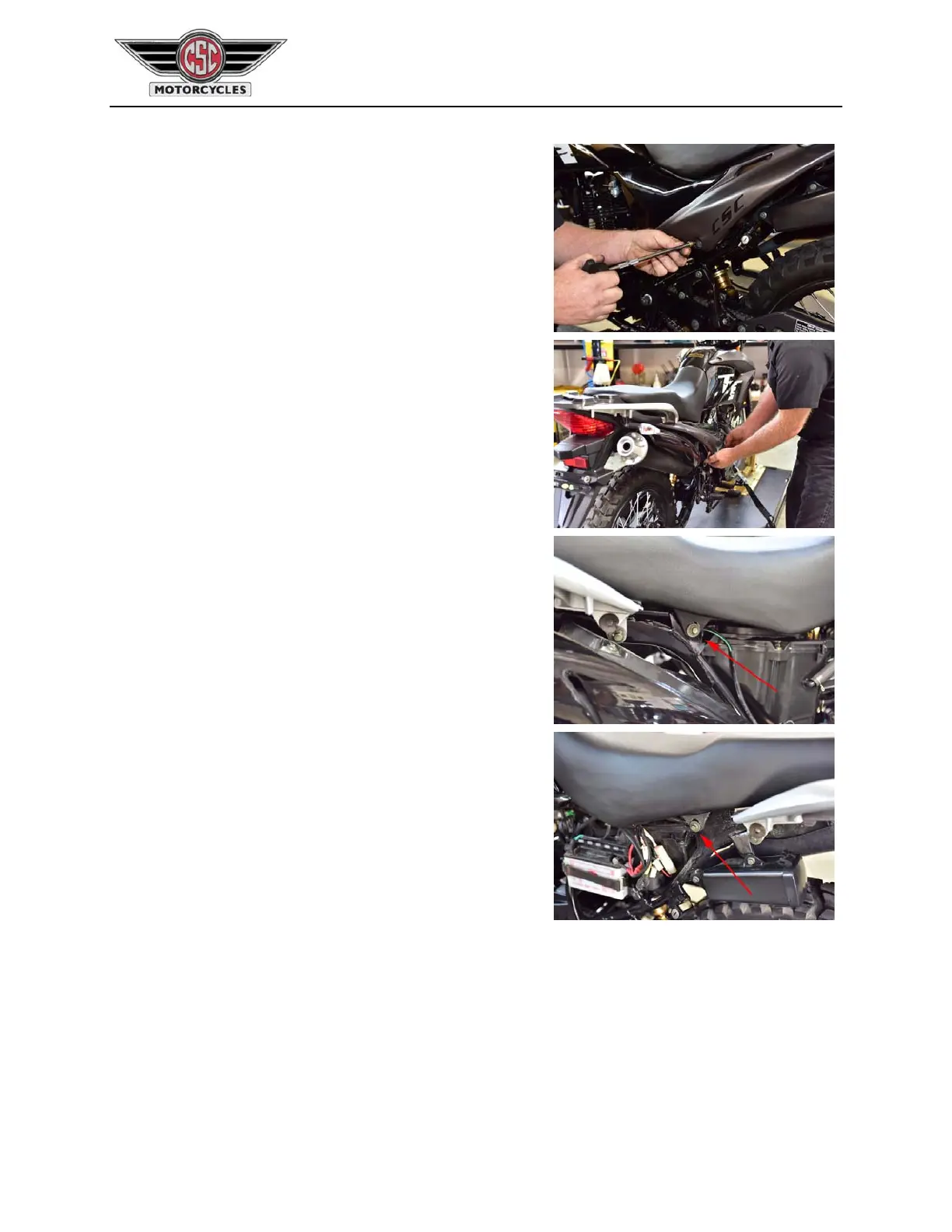

Removetherearbodypanelsontheleftandrightsideofthe
motorcycle.There’sasingleboltineachone.
Thepanelspopoffafteryouhaveremovedthebolt.

Next,removetheseat.There’sa10mmboltoneitherside.
Removetheseboltsandpulltheseatto
thereartoremove
it.
Removingthetankinvolves:

 Closingthefuelpetcock.
 Disconnectingthefuellinefromthefuelpetcocktothecarburetor.
 Removingthe10mmboltattherearofthetankandthetwoPhillipsheadscrewsunderthe
forwardbodypanels (oneoneachside ofthetank).
 Disconnectingthefuelsendingunitconnectorplug.
 Disconnectingthetankventlinefromthecarboncanister.
