46

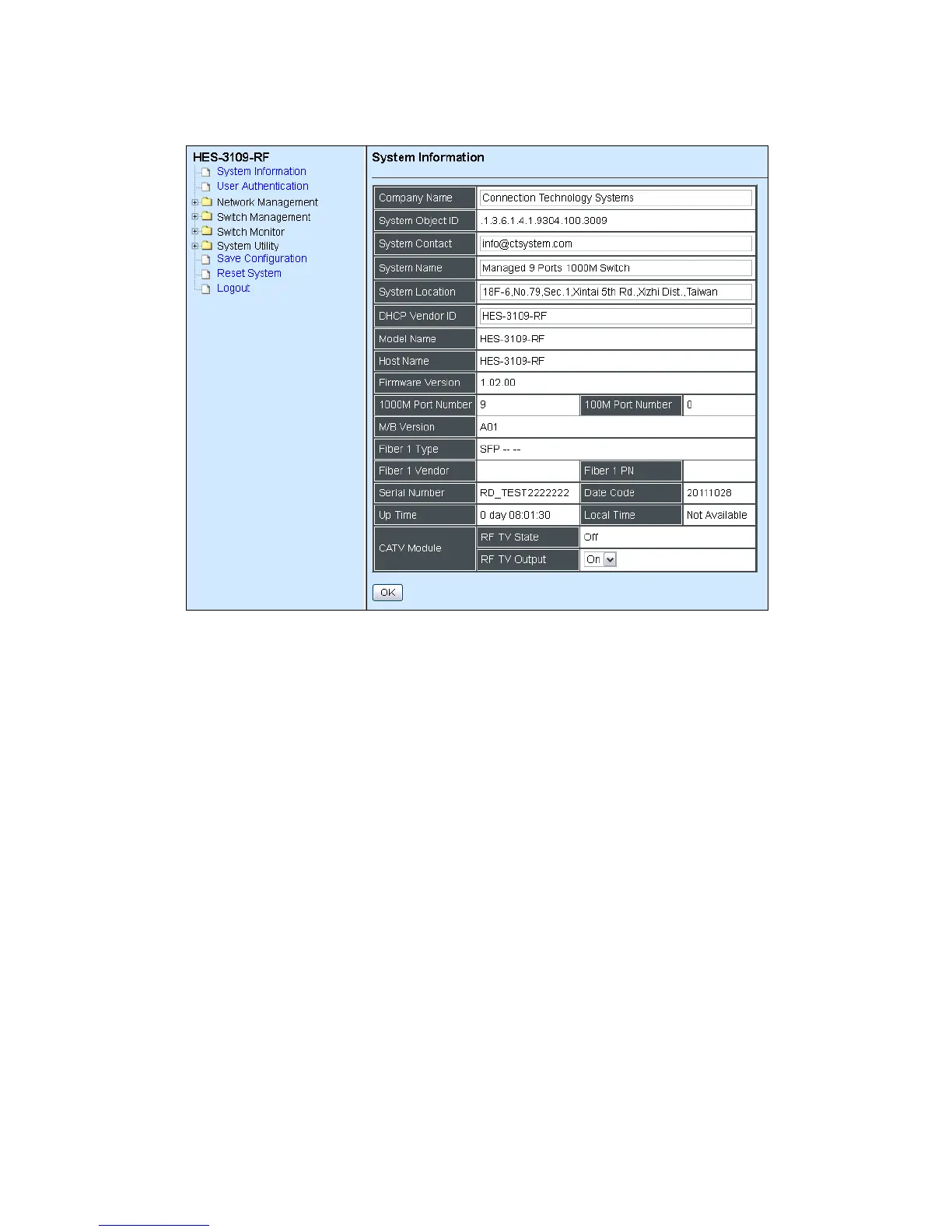

After a successful login, the screen appears as below.
1. System Information: Name the Managed Switch, specify the location and check the
current version of information.
2. User Authentication: Create and view the registered user list.
3. Network Management: Set up or view the IP address and related information about the
Managed Switch required for network management applications.
4. Switch Management: Set up switch or port configuration, VLAN configuration, QoS and
other functions.
5. Switch Monitor: View the operation status and traffic statistics of the ports.
6. System Utility: Upgrade firmware and load factory settings.
7. Save Configuration: Save all changes to the system.
8. Reset System: Reset the Managed Switch.
9. Logout: Exit the management interface.
