2. Port Counters Rates: This folder includes port traffic statistics (rates), port packet error
statistics (rates), and port packet analysis statistics (rates).
3. Port Counters Events: This folder includes port traffic statistics (events), port packet
error statistics (events), and port packet analysis statistics (events).
4. SFP Information: View the current port‟s SFP information, e.g. speed, distance, vendor
name, vendor PN, Vendor SN, temperature, voltage, TX Bias, TX power, etc..
5. IGMP Snooping: View a list of IGMP queries‟ information in VLAN(s) such as VLAN ID,
Querier and reports.
6. Loop Detection Status: View the current Loop Detection status of each port.
7. MAC Address Table: List current MAC addresses learned by the Managed Switch.
3.5.1 Switch Port State

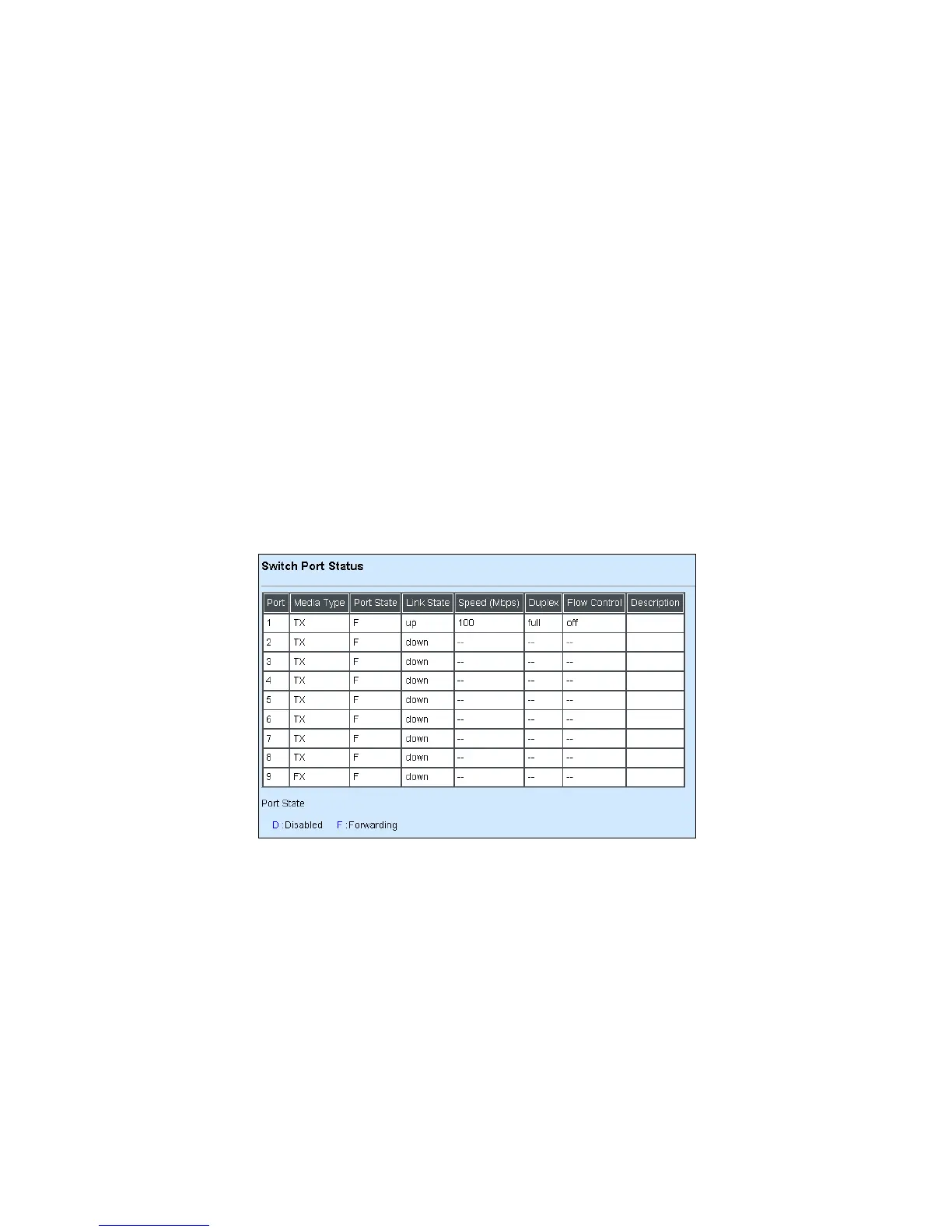

The following screen page appears if you choose Switch Monitor menu and then select
Switch Port State.
Port: The number of the port.
Media Type: The media type of the port, either Copper (TX) or Fiber (FX).
Port Sate: This shows each port‟s state which can be D (Disabled) or F (Forwarding).
Disabled: A port in this state can not receive and forward packets.
Forwarding: Packets can be forwarded.
Link State: The current link status of the port, either up or down.
Speed (Mbps): The current operation speed of each port.
