3.4.4 Rate Limit Configuration

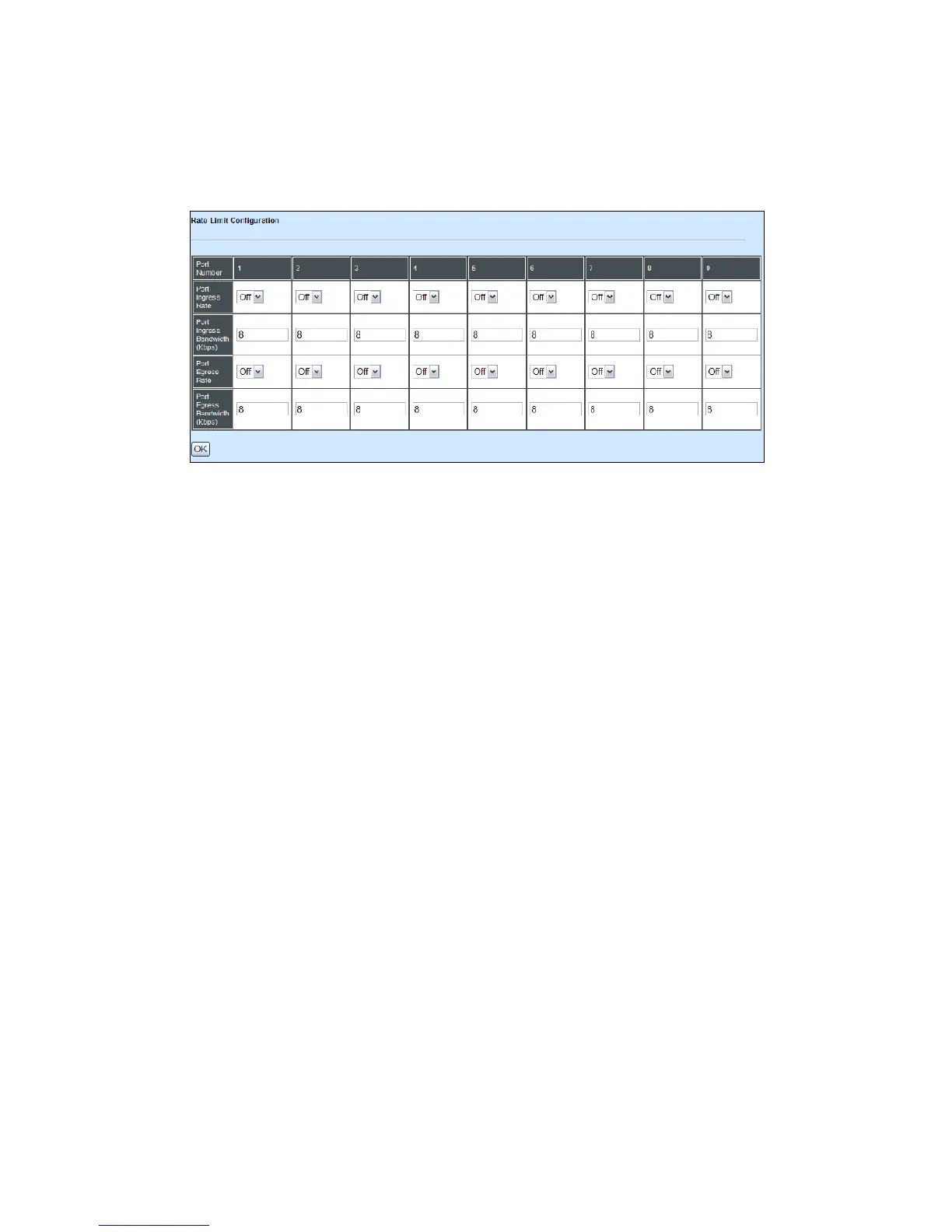

Click the folder Rate Limit Configuration from the left column and then the following screen
page appears.
Port Ingress Rate: Click the pull-down menu to set up Port Ingress Rate, on or off.
Port Ingress Bandwidth (Kbps): Enter ingress bandwidth for each port (the allowable
bandwidth is between 8 and 1048568).
Port Egress Rate: Click the pull-down menu to set up Port Egress Rate, on or off.
Port Egress Bandwidth (Kbps): Enter egress bandwidth for each port (the allowable
bandwidth is between 8 and 1048568).
Click the “OK” button to apply the settings.
3.4.5 QoS Priority Configuration
Network traffic is always unpredictable and the only basic assurance that can be offered is
the best effort traffic delivery. To overcome this challenge, Quality of Service (QoS) is applied
throughout the network. This ensures that network traffic is prioritized according to specified
criterion and receives preferential treatments.
QoS enables users to assign various grades of network service to different types of traffic,
such as multi-media, video, protocol-specific, time critical, and file-backup traffic. Click the
option QoS Priority Configuration from the Switch Management menu and then the
following screen page appears.
