TX Collisions: Total frames collision detected.
Total Errors: The number of total errors occurred.
3.5.2.3 Port Packet Analysis Statistics (Rates)

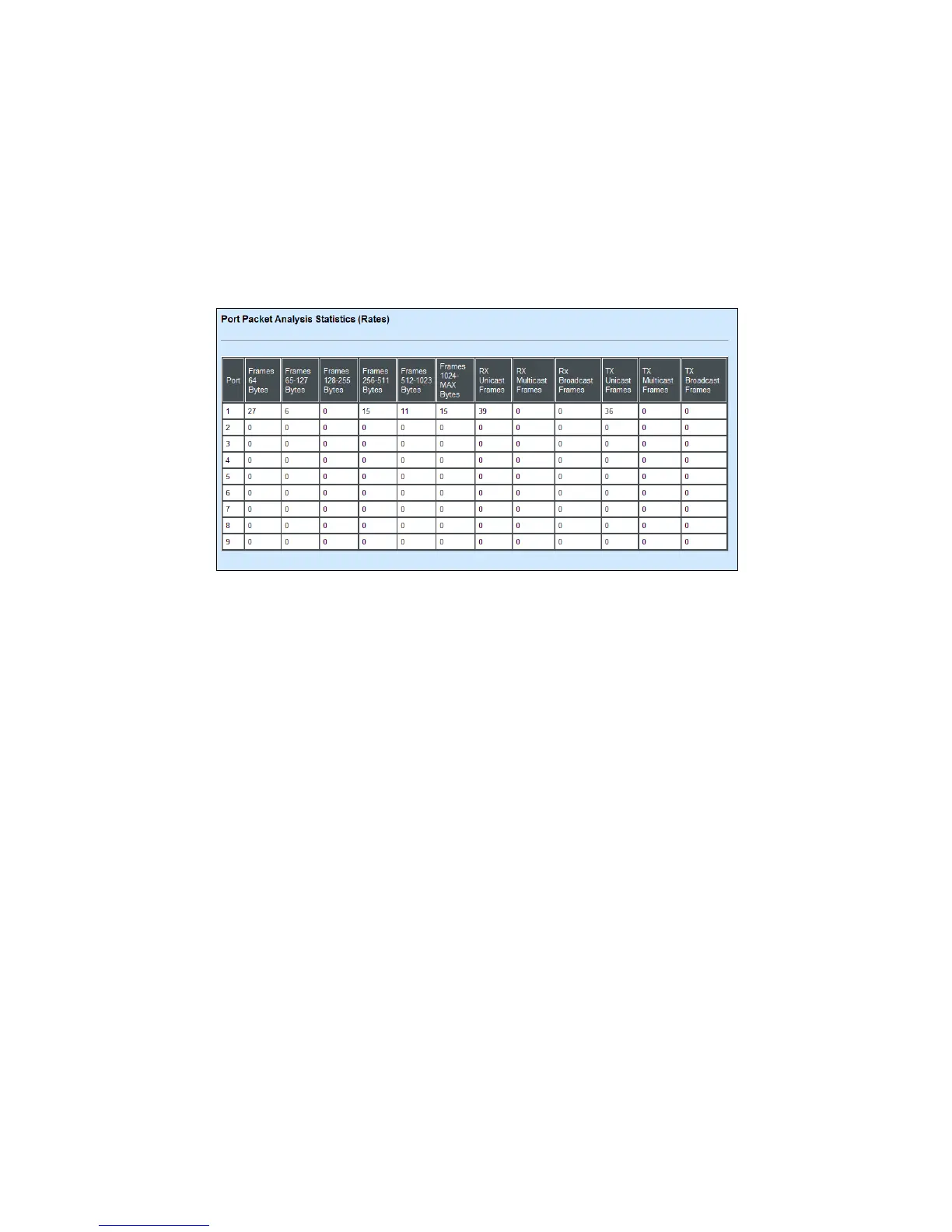

The following screen page appears if you choose Port Counters Rates and then select Port
Packet Analysis Statistics (Rates).
Frames 64 Bytes: 64 bytes frames received.
Frames 65-127 Bytes: 65-127 bytes frames received.
Frames 128-255 Bytes: 128-255 bytes frames received.
Frames 256-511 Bytes: 256-511 bytes frames received.
Frames 512-1023 Bytes: 512-1023 bytes frames received.
Frames 1024-MAX Bytes: Over 1024 bytes frames received.
RX Unicast Frames: Good unicast frames received.
RX Multicast Frames: Good multicast frames received.
RX Broadcast Frames: Good broadcast frames received.
TX Unicast Frames: Good unicast packets sent.
TX Multicast Frames: Good multicast packets sent.
TX Broadcast Frames: Good broadcast packets sent.
