CTS HES-3109 Series - SFP Port State; IGMP Snooping

76

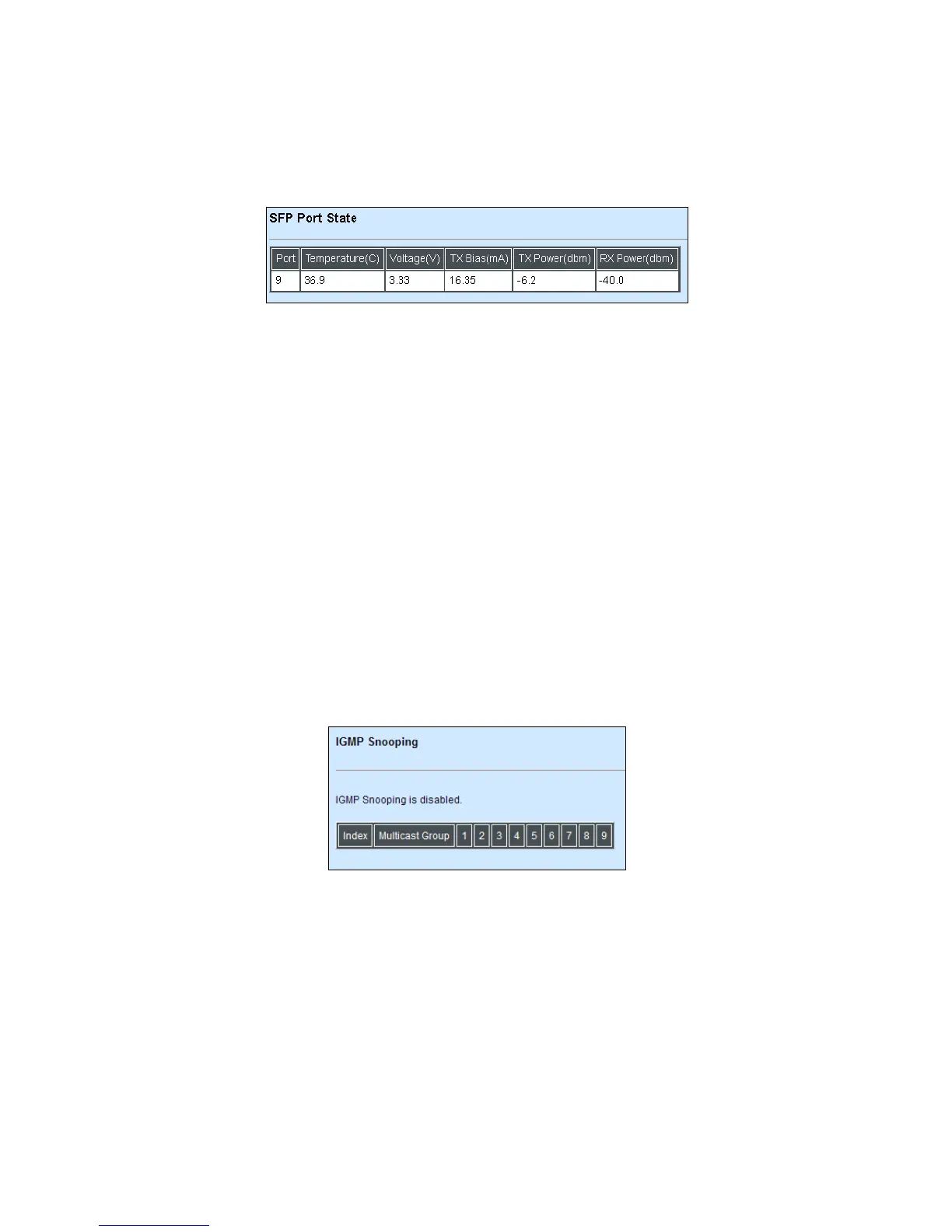

3.5.4.2 SFP Port State
The following screen page appears if you choose SFP Information and then select SFP Port
State.
Port: The port number of the slide-in SFP module.
Temperature (C): The Slide-in SFP module operation temperature.
Voltage (V): The slide-in SFP module operation voltage.
TX Bias (mA): The slide-in SFP module operation current.
TX Power (dbm): The slide-in SFP module optical Transmission power.
RX Power (dbm): The slide-in SFP module optical Receiver power.
3.5.5 IGMP Snooping
The following screen page appears if you choose Switch Monitor and then select IGMP
Snooping.
Multicast Group: This shows the multicast IP address of IGMP querier.
Port: The port(s) grouped in the specific multicast group.
