Curtis Instruments AC F4-A User Manual

2 — INSTALLATION AND WIRING
Curtis AC F4-A Motor Controller – August 2020 Return to TOC
pg. 6
LOW CURRENT CONNECTIONS
All logic and low power connections are through a single 35-pin AMPSEAL connector (mold in
the cover) utilizing gold-plated pins. e matching AMPSEAL receptacle’s wire silos come sealed
by a membrane. Pierce the membrane by inserting the individual terminated wires. To maintain the
IP65 rating, use the proper wire gauge and insulation thickness. Seal any non-used wire positions
that have their silo-diaphragm pierced with the specic AMPSEAL sealing plug. Do not mix gold
and tin pin types.
• Figure 4 shows the AMPSEAL receptacle (plug) housing. Note the molded-in silo numbering.
• Figure 5 illustrates the connection assignments (as the plug aligns with the controller).
• Table 2 lists the matching AMPSEAL vehicle-harness component part numbers.

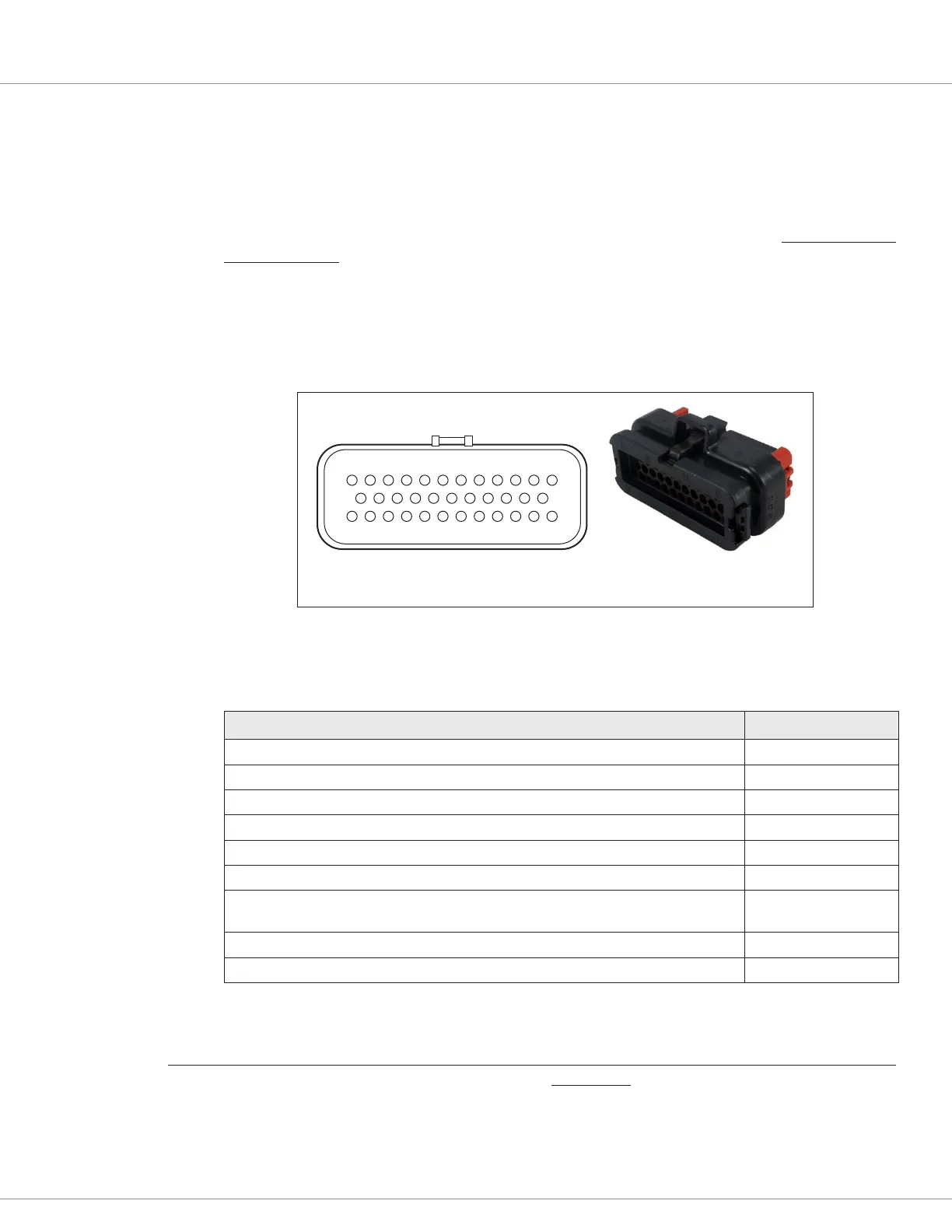

Figure 4
35-Pin AMPSEAL
Connector
13
24
1
23
35
12
AMPSEAL 35 PIN Connector Harness-side view
Note: e silo numbers are molded on the top and sides of the AMPSEAL connector receptacle (plug).
Table 2 The AMPSEAL Connector Components & Part Numbers
Matching AMPSEAL 35-pin Component* Part Number
AMPSEAL receptacle housing (the black vehicle-harness plug) 776164-1
Plug’s gold-plated socket terminals (strip form p/n) 770520-3
Plug’s gold-plated socket terminals (loose piece p/n) 770854-3
Silo seal plug (for non-used pin positions with a pierced membrane) 770678-1
Plug’s tin-plated socket terminals (strip form p/n) 770520-1
Plug’s tin-plated socket terminals (loose piece p/n) 770854-1
Harness wire size (gauge) 0.5 – 1.25 mm
2
(20 – 16 AWG)
Wire diameter (overall) [i.e., uses wire with thin-wall insulation] 1.7 – 2.7 mm
Hand Crimper for the wire-harness socket terminals 58440-1
*AMPSEAL components and tooling are available worldwide from multiple TE Connectivity electrical component distributors.
Reference the TE Connectivity Document: Application Specification 114-16016.
http://www.te.com/commerce/DocumentDelivery/DDEController
TE Connectivity website: http://www.te.com/usa-en/products/connectors/automotive-connectors/intersection/ampseal-connectors.html
