Curtis Instruments AC F4-A User Manual

APPENDIX D
Curtis AC F4-A Motor Controller – August 2020 Return to TOC
pg. 204
VEHICLE CAN-PORT WIRING
Install the vehicle CAN port as specied in CiA 303-1, Section 5.4, including the recommended
output voltage at the optional power supply of +18 VDC < V+ < +30 VDC in order to enable the use
of standard power supplies (24 VDC).
e Curtis 1313-xx31 Handheld Programmer can use batteries for its power. e preferred method is
to use the vehicle’s battery voltage (i.e., 24V) to power the handset. To use the vehicle battery, install
on the vehicle a 9-pin D-Sub female connector as illustrated, below.
Both the PC based Curtis Integrated Toolkit™ program that uses a USB/CAN dongle and the Curtis
1313-xx31 Handheld Programmer use male (pins) D-Sub connectors. Use D-Sub gender changers
should a conict occur.
Typically, the USB/CAN dongle uses the USB power, so the power pins are not used. For dongles not
conforming to CiA 303-1, to prevent damage, check the documentation of the CAN dongle before
connecting to a powered D-sub port.
1313-xx31 Wiring
D-Sub Pin Function
7 CAN_H
2 CAN_L
9 B+ (8 – 36 V)
6 B–

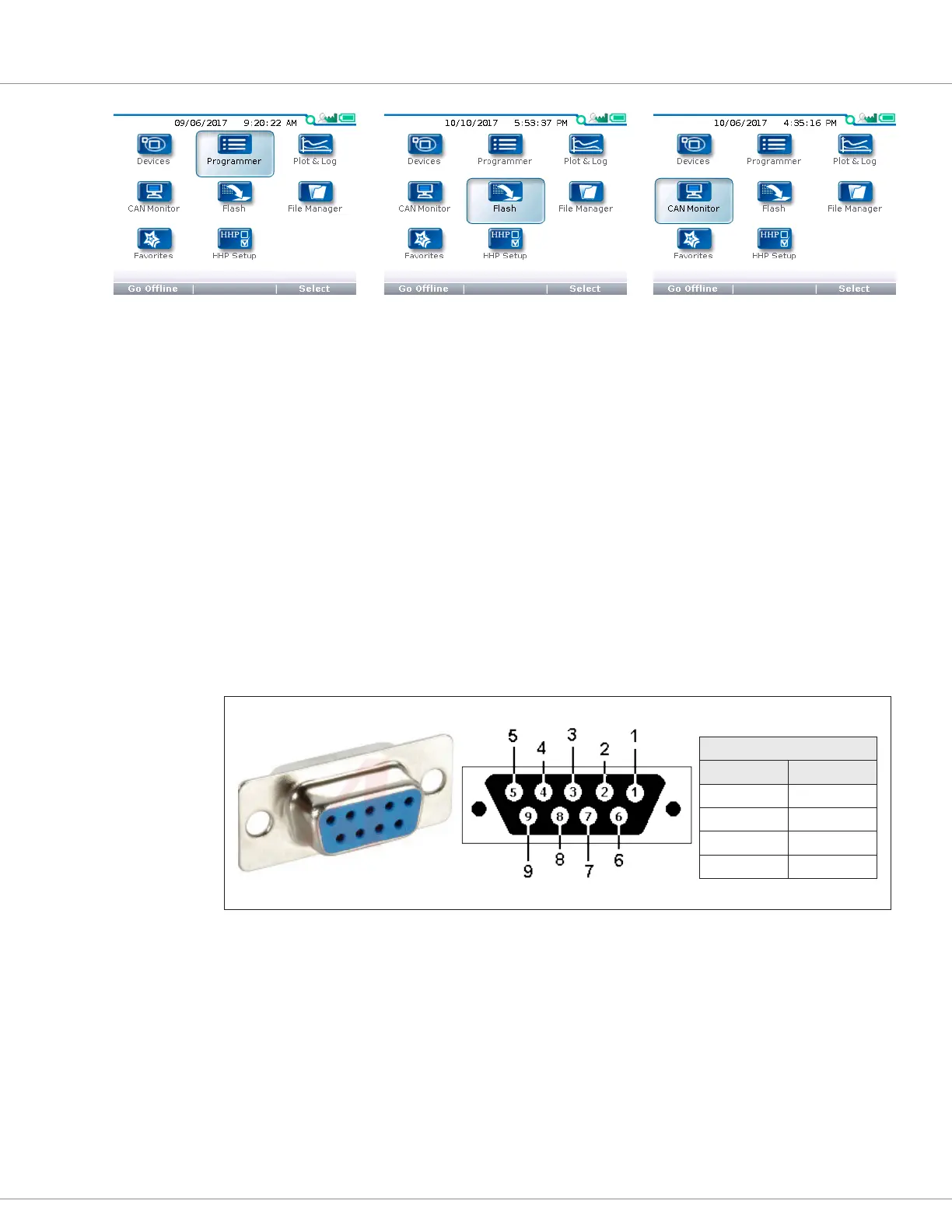

Vehicle CAN Port Wiring for 1313-xx31 Programmer
1313 HHP Programmer App 1313 HHP Flash App 1313 HHP CAN Monitor App
