186 D320 PLC User's Manual
Overview
This appendix describes in detail the use of the D50PGM10 pocket editor for programming,
monitoring, and troubleshooting the D50 PLC. The Pocket Editor provides mnemonic-only program
loader support for the D50 PLC in a heavy-duty, light-weight industrial package. The various
functions of the pocket editor are presented in a step-by-step procedural guide to simplify the use and
operation of the editor.
Specifications
Operating Specifications
Item Specification
Supported PLCs D50
Power Supply 5VDC supplied from connected PLC
Indicator LED’s and 7-segment display
Display
Capacity 22 LEDs; 5-digit 7-segment display
Keypad 20-key multifunction keypad

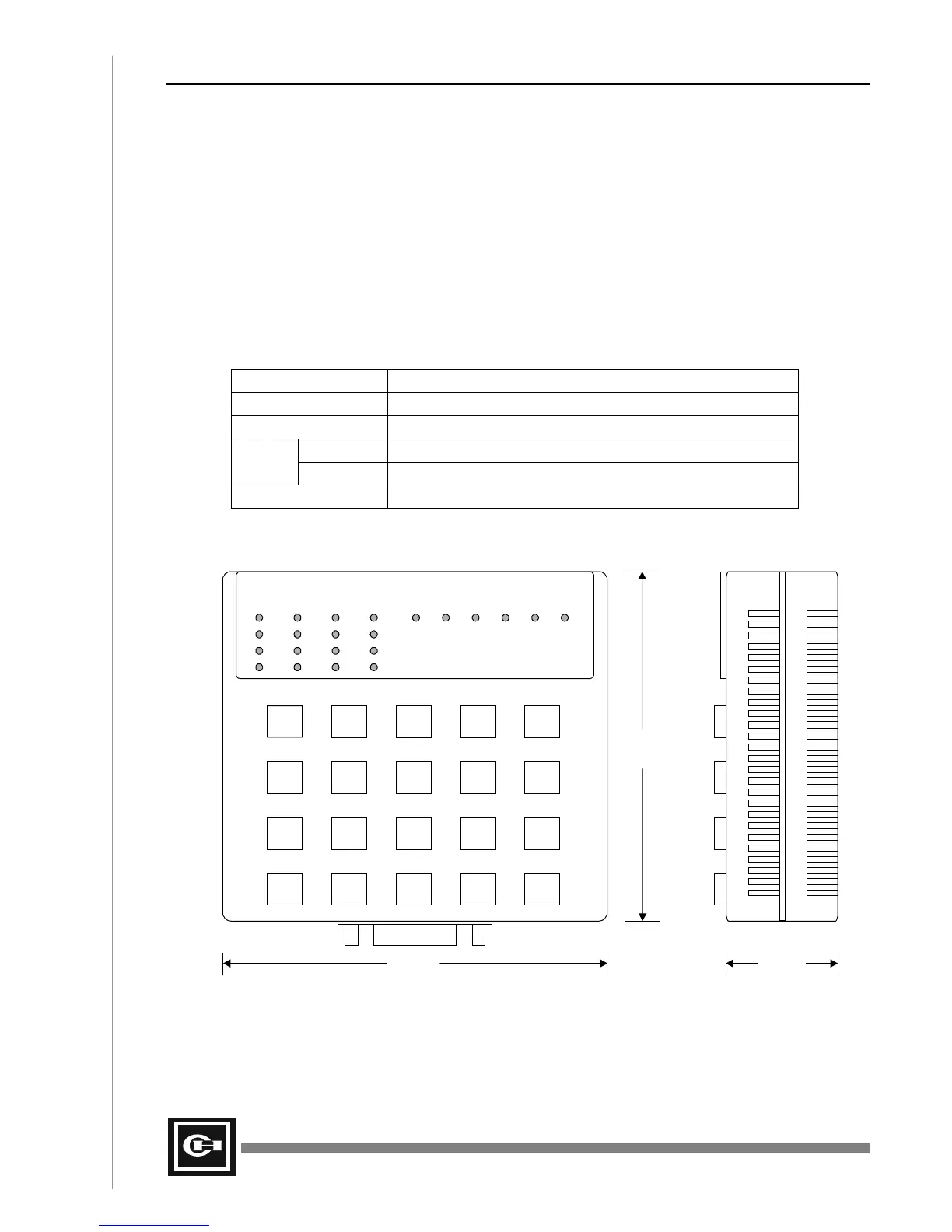

Dimensions
PGM-10
AND
OR
STR
NOT
OUT
TIM
CNT
DIF
MCS
MCR
SET
RST
SHF
RUN
ON
SST
RMKFWTC
AND OUT MCS DEL SHF
OR TIM MCR INS SCH
STR CNT SET ENT PRE
NOT DIF RST CLR NXT
K/7 F/8 W/9 FUN
0MONSST
M/4 5 6 AUX
R/1 2 3 ADR
CHK
RD
WR
3.15in
(80mm)
3.45in
(88mm)
1.0in
(25mm)
