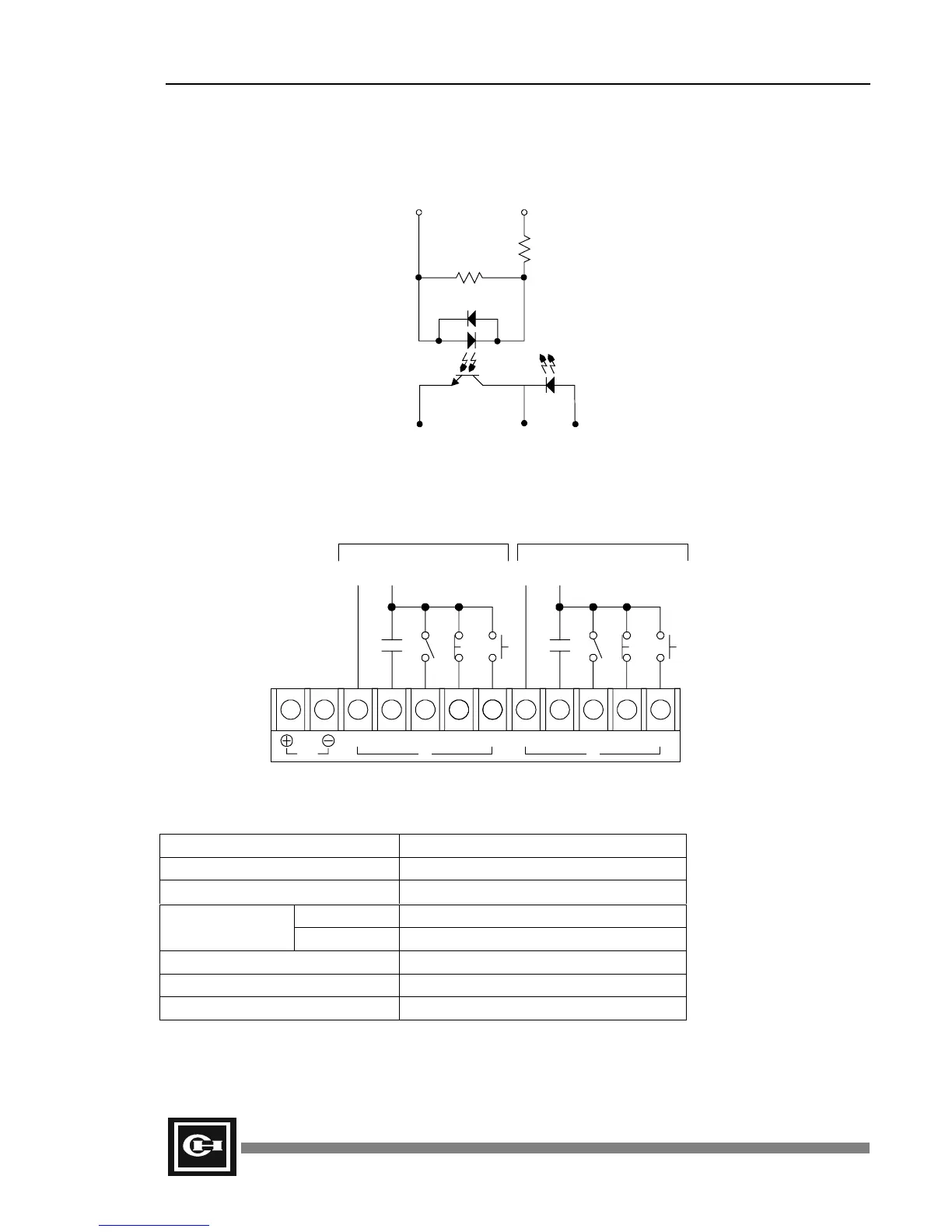

14 D50 PLC User's Manual
24VDC Input Specifications
Internal Circuit Diagram
Wiring Diagram
Specifications
Rated Voltage 12 to 24VDC
Operating Voltage Range 9 to 30VDC
Input Resistance
3.3 kΩ
Off On Less than 10ms
Input Delay Time
On Off Less than 10ms
Number of Inputs 8 points
Points per Common 4 points/common
Isolation Photocoupler
DC 24V
OUT
C0123 4567C
IN IN
24VDC
+
-
24VDC
-
+
Current
Sinking
Devices
Current
Sourcing
Devices
COM INPUT
