Cutler-Hammer D50 - Relay Output Specifications

16 D50 PLC User's Manual

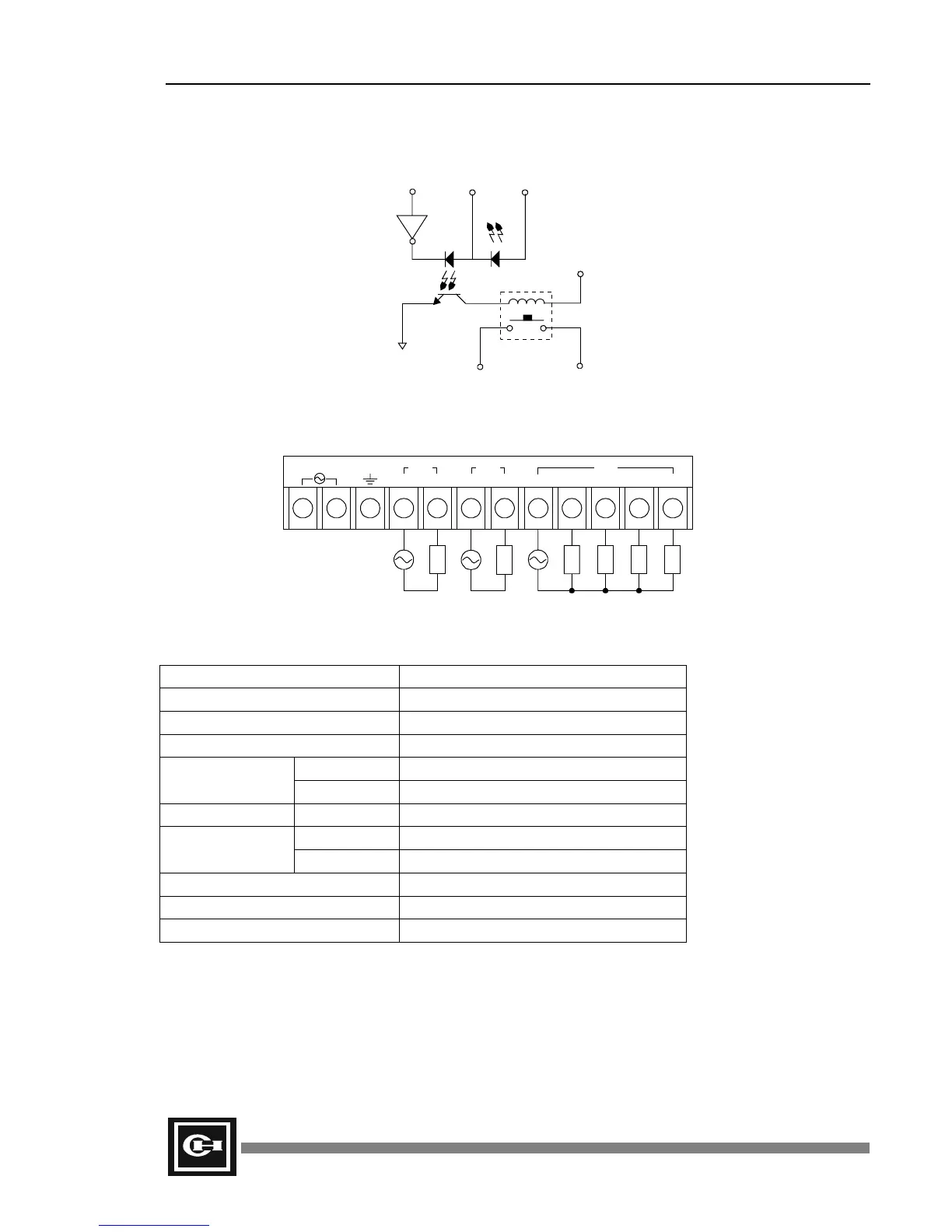

Relay Output Specifications
Internal Circuit Diagram
Wiring Diagram
Specifications
Rated Voltage 110/220VAC; 30VDC
Operating Voltage Range 85 to 132VAC
Electrical Life 200,000 operations @ rated current
Mechanical Life 10M operations
Per Output 2A
Max. Load Current
Per Common 4A
Min. Load Current Per Output 30mA
Off  On Less than 10ms
Output Delay Time
On  Off Less than 10ms
Number of Outputs 6 points
Points per Common 2 Isolated, 1 group of 4 points/common
Isolation Photocoupler
24VDC
GND
+24VDC
COM
OUT
0 1 2345CCC
OUT OUTOUTGND IN 100-240V
LOAD
LOAD
LOAD LOAD LOAD LOAD
