Cutler-Hammer D50 - Transistor (24 VDC) Output Specifications

Chapter 3: Product Specification 17

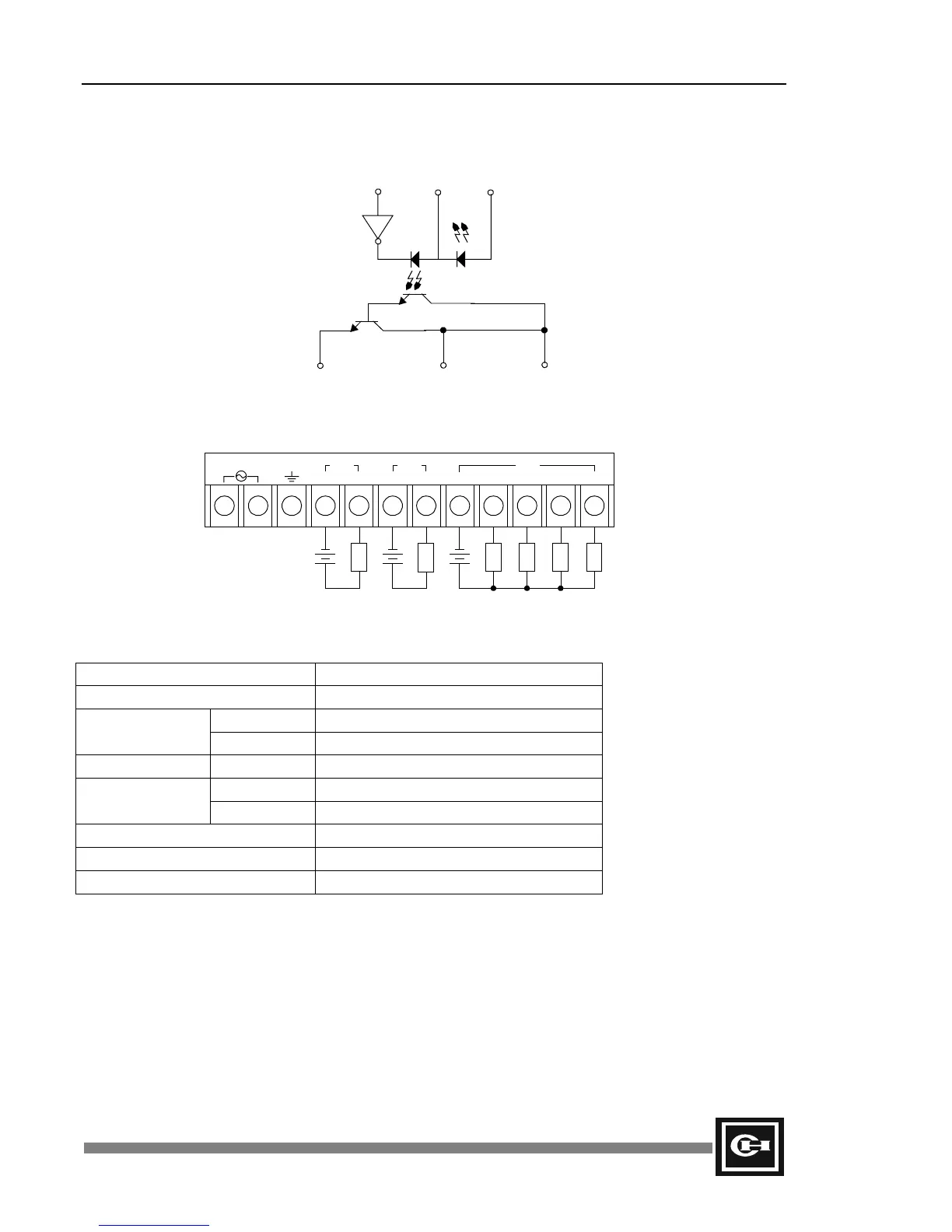

Transistor (24VDC) Output Specifications
Internal Circuit Diagram
Wiring Diagram
Specifications
Rated Voltage 24VDC
Operating Voltage Range 5 to 27VDC
Per Output 0.5A
Max. Load Current
Per Common 4A
Min. Load Current Per Output 10mA
Off  On Less than 1ms
Output Delay Time
On  Off Less than 1ms
Number of Outputs 6 points
Points per Common 2 Isolated, 1 group of 4 points/common
Isolation Photocoupler
0 1 2345CCC
OUT OUTOUTGND IN 100-240V
LOAD
LOAD
LOAD LOAD LOAD LOAD
24VDC
+
-
+
-
+
-
GNDCOM OUT
