Cutler-Hammer D50 - SSR (115 VAC) Output Specifications

18 D50 PLC User's Manual

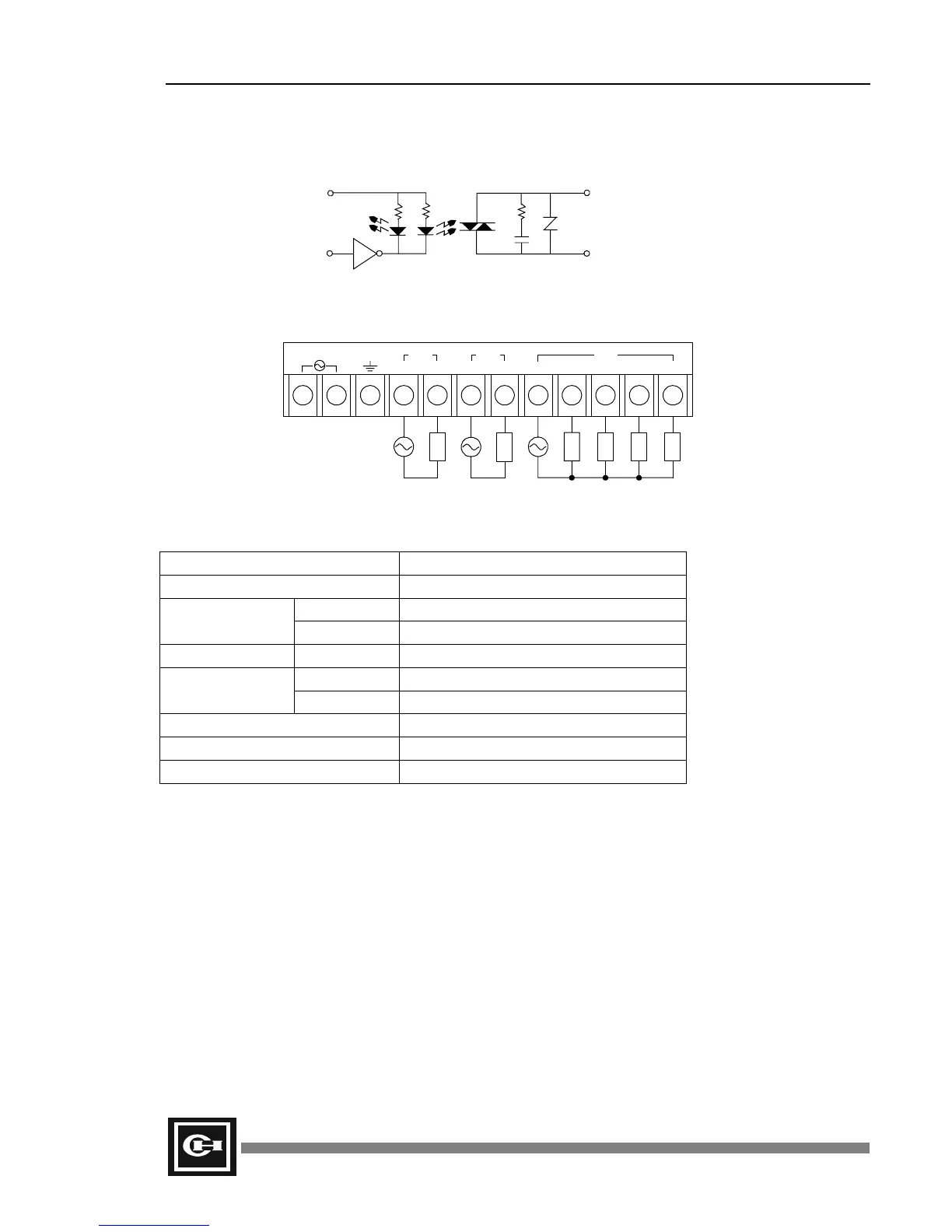

SSR (115/230VAC) Output Specifications
Internal Circuit Diagram
Wiring Diagram
Specifications
Rated Voltage 110/220VAC
Operating Voltage Range 85 to 132VAC
Per Output 0.5A
Max. Load Current
Per Common 3A
Min. Load Current Per Output 50mA
Off  On Less than 5ms
Output Delay Time
On  Off Less than 12ms
Number of Outputs 6 points
Points per Common 2 Isolated, 1 group of 4 points/common
Isolation Photocoupler
