62 D50 PLC User's Manual
(OUT)
(SET)
(RST)
Instruction
Mnemonic Output Range
■ Bit
Byte
OUT
SET
RST
Relay output
On output
Off output
Word
Ladder
OUT: Relay coil turns On or Off based on the state of the input conditions.
SET: Relay coil turns On when the input conditions are true.
RST: Relay coil turns Off when the input conditions are true.
Description
For an OUT instruction, you cannot use the same address twice.
OUT, SET, and RST instructions must be connected to the right bus and not in the middle of the
circuit.
1. OUT—Use for external I/O (R), internal (M), and retentive (K) contacts. On or Off according
to status of the input condition.
2. SET—Use for external I/O (R), internal (M), and retentive (K) contacts. The same address
can be used more than once. When the input conditions are true, the coil is turned On and
stays on unless turned off by a RST. The output is turned Off in the Stop mode.
3. RST—Use for external I/O (R), internal (M), and retentive (K) contacts. The same address
can be used more than once. When the input conditions are true, the coil is turned Off and
stays off unless turned on by a SET. The output is Off in the Stop mode.
4. When using retentive coils (K) in OUT, SET, or RST, the state is maintained. It will remain
On or Off even after placed in the Stop mode and power is turned off.

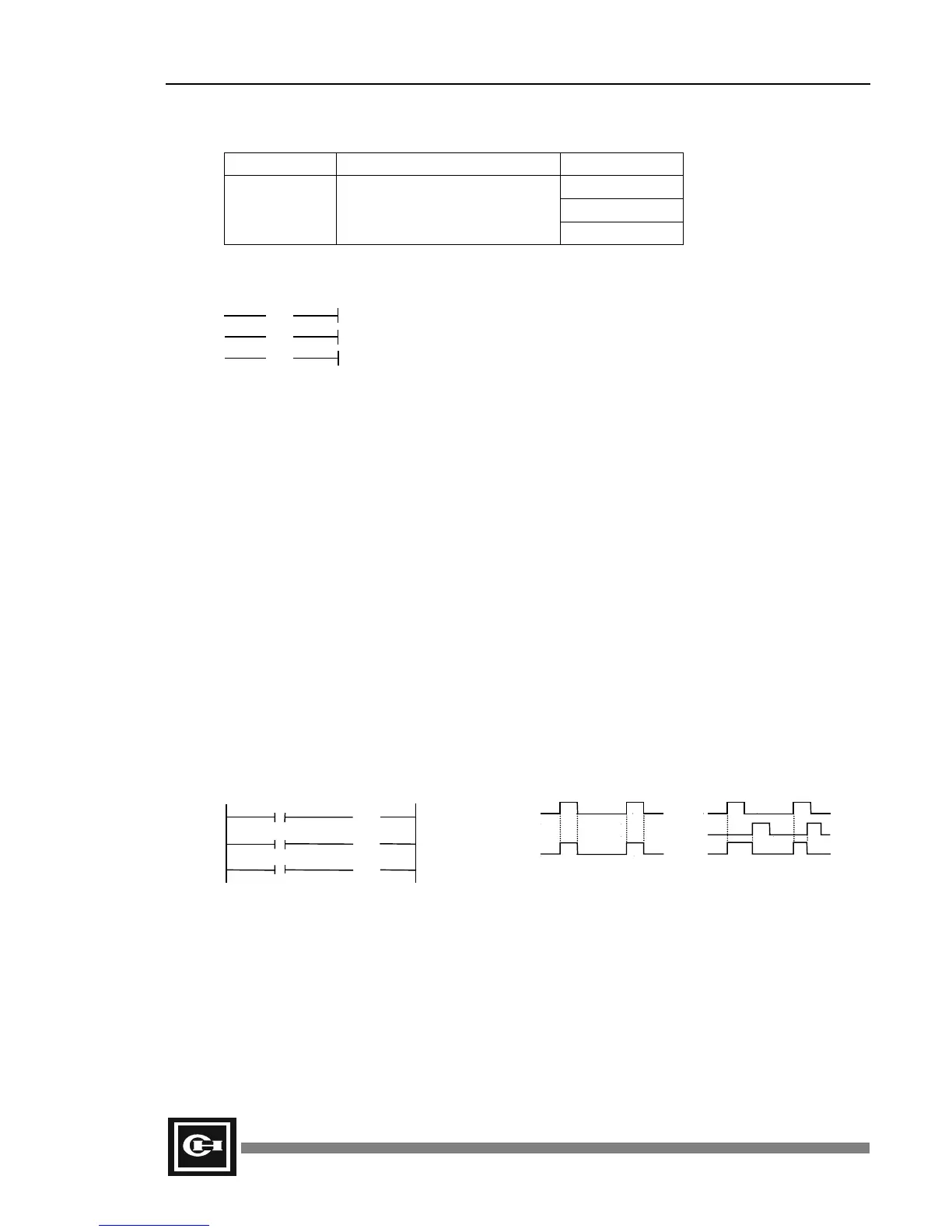

Example
Program Expression Time Chart
M000.4 follows contact logic for R001.1 input.
When R002.2 contact is On, M000.5 output is On.
When R002.3 contact is On, M000.5 output is Off.
R001.1 M000.4
(OUT)
R002.2 M000.5
(SET)
R002.3 M000.5
(RST)
R001.1 R002.2
R002.2
M000.4 M000.5
