Chapter 2: System Configuration 9

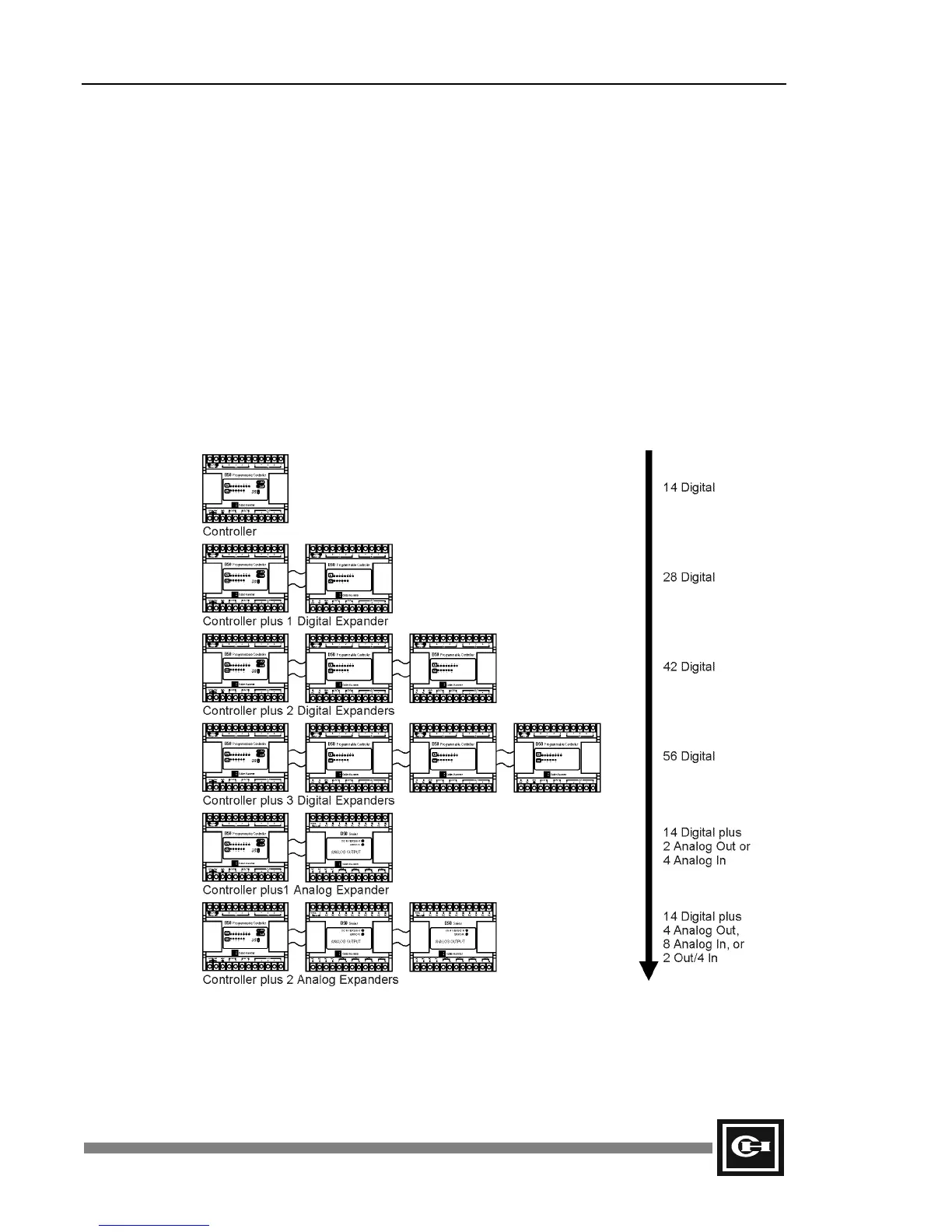

D50 PLC Expansion Configurations
• All digital I/O modules, both controller and expander, contain 14 I/O points – 8 digital inputs,
and 6 digital outputs.
• Up to 3 digital expansion units can be added to the controller.
• Up to 2 analog expansion units can be added to the controller. These can be either two analog
input modules, two analog output modules, or one of each.
• Any type of digital and analog expansion unit can be mixed and matched as required for the
application.
• The digital and analog expansion units may be added in any order.
• A maximum of 56 digital points and 8 analog channels are available. This is achieved by
using three digital expansion units, and two analog input expansion units.
