198 D320 PLC User's Manual
Delete Instruction

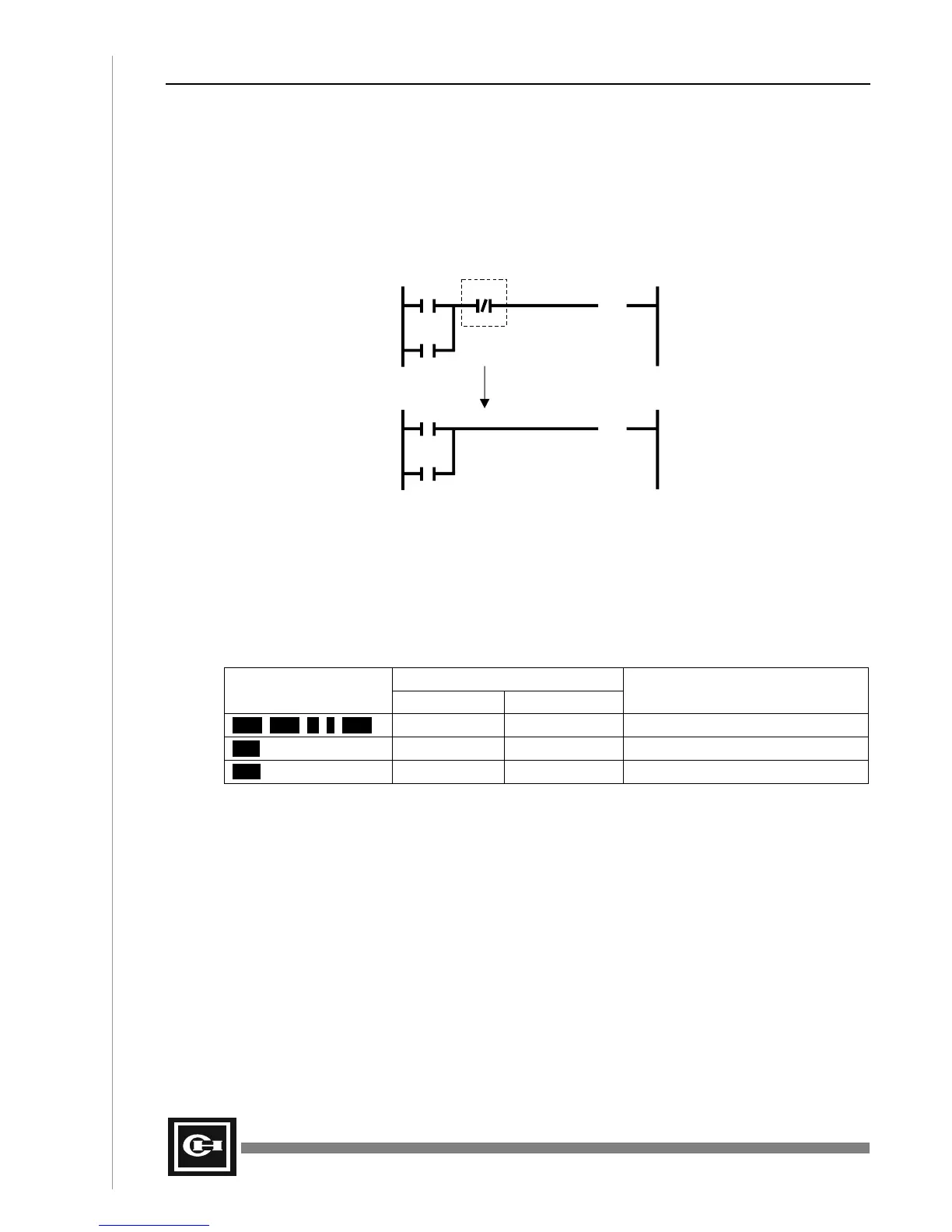

In the example below, one contact is deleted from the rung of ladder, as shown.
• Function: Delete an existing step out of the D50 PLC program
• PLC Mode: STOP
Ladder Program
Mnemonic Program
STR R0.1 STR R0.1
OR K15.2 OR K15.2
ANN M0.5 OUT K15.4
OUT K15.4
Operating Procedure
Display
Key Sequence
LED 5-Digit Display
Remarks
AND NOT M 5 SCH AND NOT M 5 Search for instruction to delete
DEL AND NOT M d.0005 Ready to delete – marked with d.
ENT OUT K 01504 Next instruction will be displayed
R0.1 K15.4
(OUT)
K15.2
R0.1 K15.4
(OUT)
M0.5
K15.2
