78 D50 PLC User's Manual

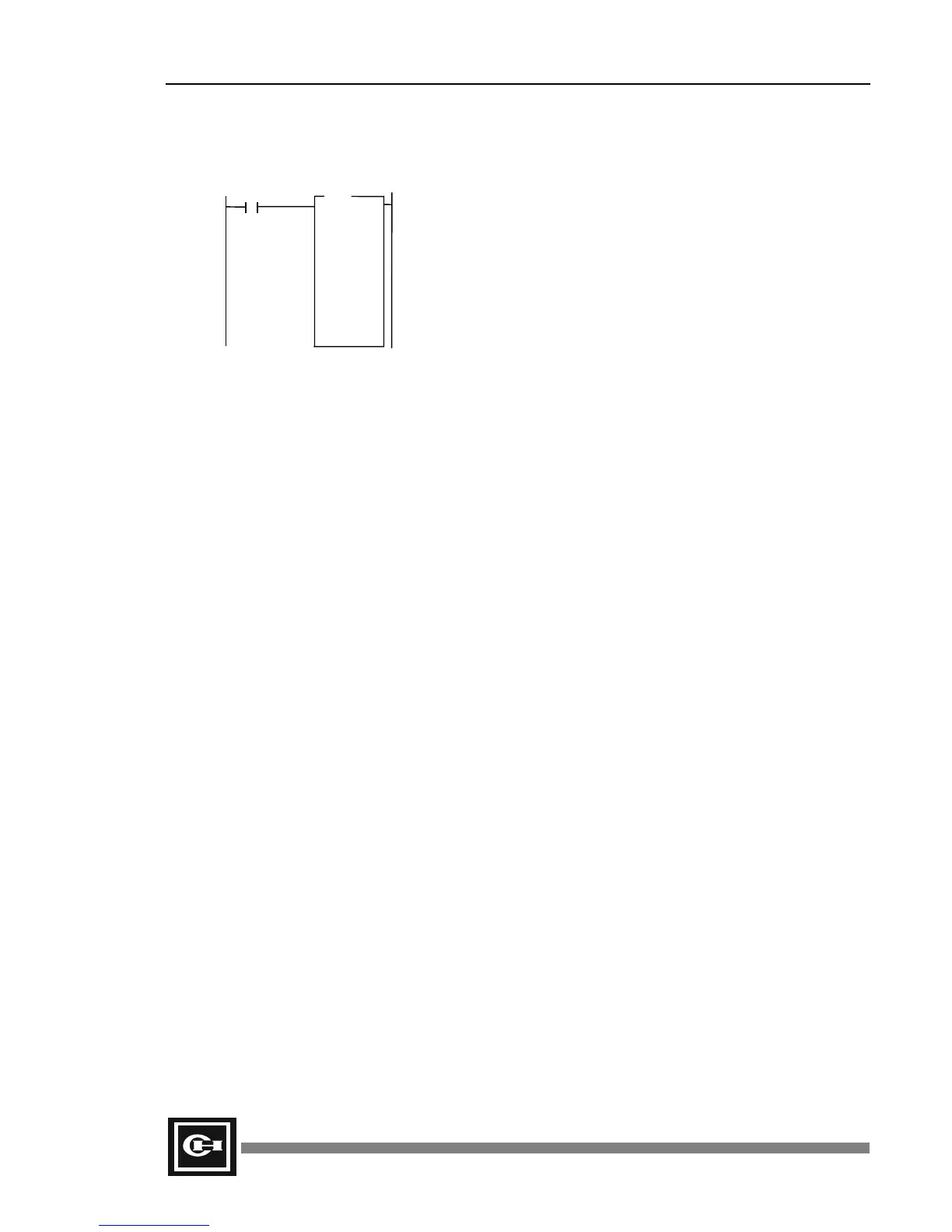

Example
Program Expression Operation Results
Initial conditions: W0 = 00017 = $0011
W1 = 00001 = $0001
W2 = 00025 = $0019
W3 = 00250 = $00FA
Operation results: W10 = 00042 = $002A
W11 = 00267 = $010B
W12 = 00048 = $0030
ADD
D = W10
S1 = W0
S2 = W2
DADD
D = W11
S1 = W0
S2 = W3
ADDB
D = W12
S1 = W0
S2 = W2
R0
R
