Chapter 6: Instructions 85
Example

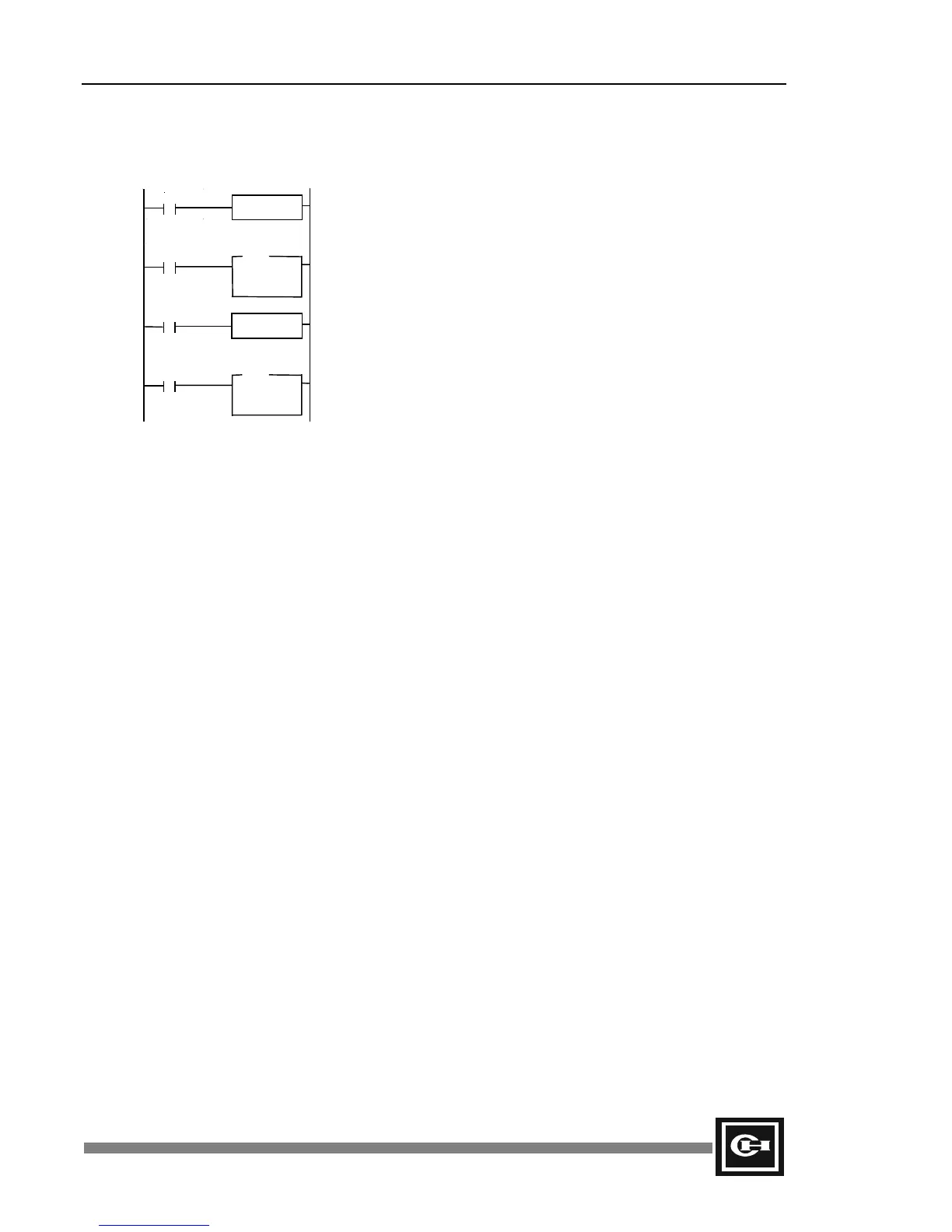

Program Expression Operation Results
Initial conditions: W0 = 00016 = $0010
W1 = 00002 = $0002
Operation results: W10 = 00016 - 00002 - 1 = 00013
W11 = $0010 - $0002 - 0 = $0008
R0.0
R
SBC
D = W10
S1 = W0
S2 = W1
R0.0
R
SC
R0.0
R
SBCB
D = W11
S1 = W0
S2 = W1
R0.0
R
RC
