46D-Link DCS-5220 User Manual
Section 3 - Configuration

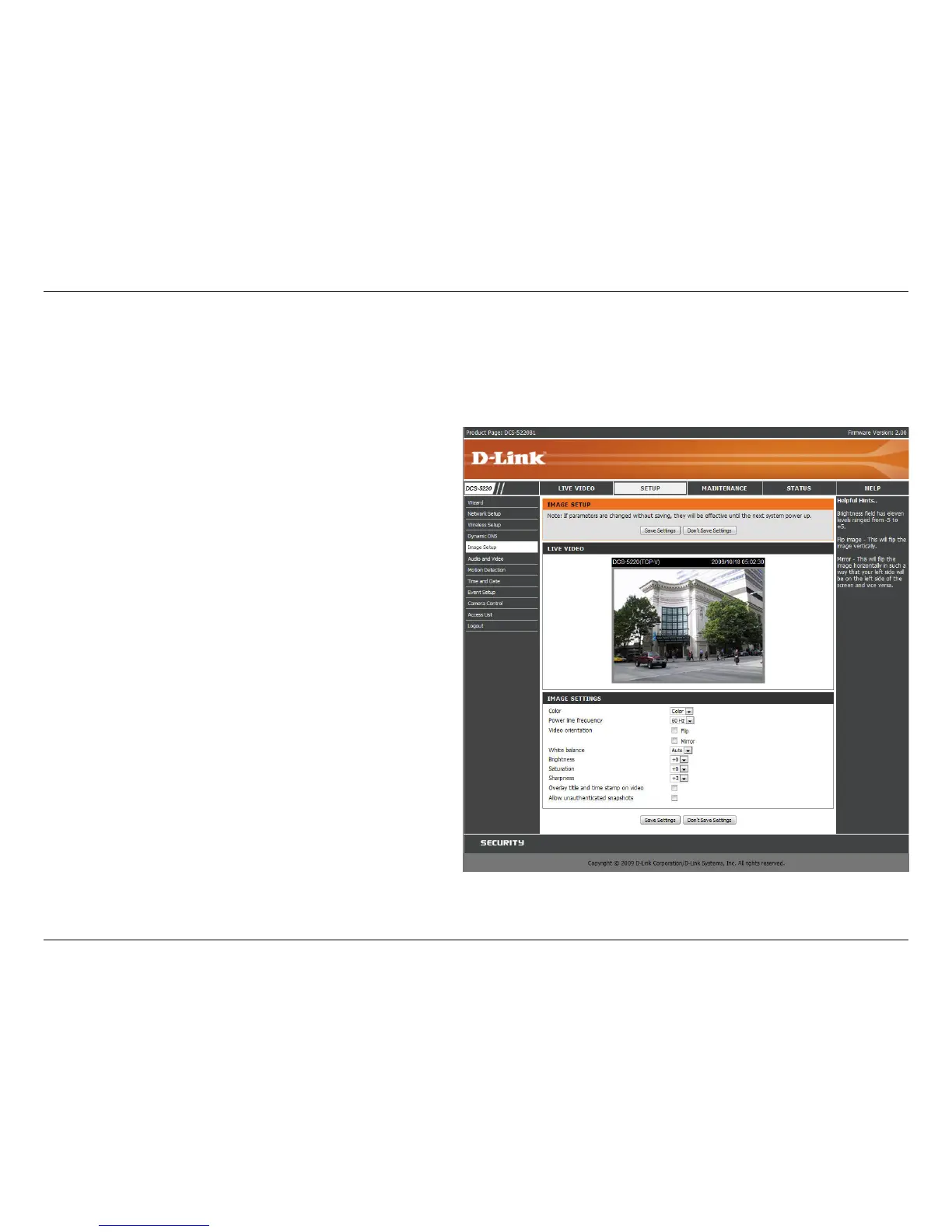

Image Setup
You may congure the image settings of the video for your network camera. A preview of the image will be shown in
the window of Live Video. Click Save Settings to save and activate your changes.
Color:
Power Line
Frequency:
Video Orientation:
White Balance:
Brightness:
Select either a Color or B/W (black and white,
monochrome) video display.
Select either 50 or 60Hz.
Flip will vertically rotate the video. Mirror will
horizontally rotate the video. You may check
both options if the camera is being installed
upside down.
Select either Auto or Fix from the drop-down
box. Select Auto to automatically adjust the
white balance of the object. Otherwise, select
Fix to manually set the white balance conditions
in advance.
Select to change the brightness value for the
Network Camera. The range varies from -5
to +5.
