48D-Link DCS-5220 User Manual
Section 3 - Configuration
Mode:
Frame Size:
Maximum
frame rate:
Video quality:
Mute:
Select either JPEG or MPEG4. In JPEG mode,
the video frames are independent. However,
MPEG4 consumes much less network bandwidth
than JPEG.
Select 176 x 144, 352 x 240 or 640 x 480 pixels
for the frame size. We recommend 176 x 144
for mobile viewing and 640 x 480 for a computer
monitor.
The minimum frame rate value is 1fps and the
maximum is 30fps. We recommend 30fps for
computer monitors and 5fps for mobile viewing.
This setting limits the maximum refresh frame rate.
To set a xed bandwidth regardless of the video
quality, select Constant bit rate and the desired
bandwidth. Select Fixed Quality to optimize the
bandwidth utilization and video quality.
Select to mute audio.
Audio and Video

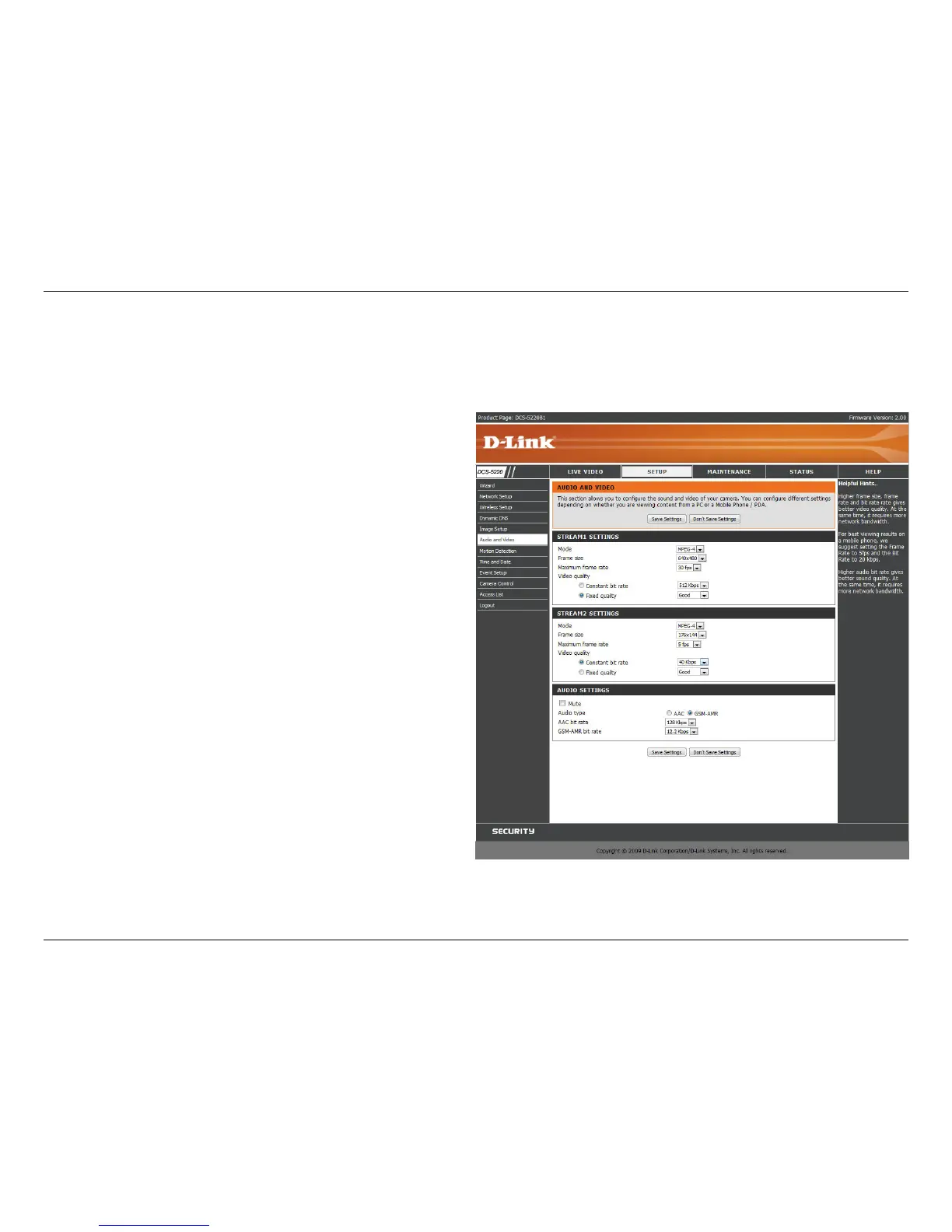

Settings for two video streams (stream 1 and stream 2) can be congured here. You may congure one setting for
computer display and the other one for mobile display.
