Section 3 - Configuration

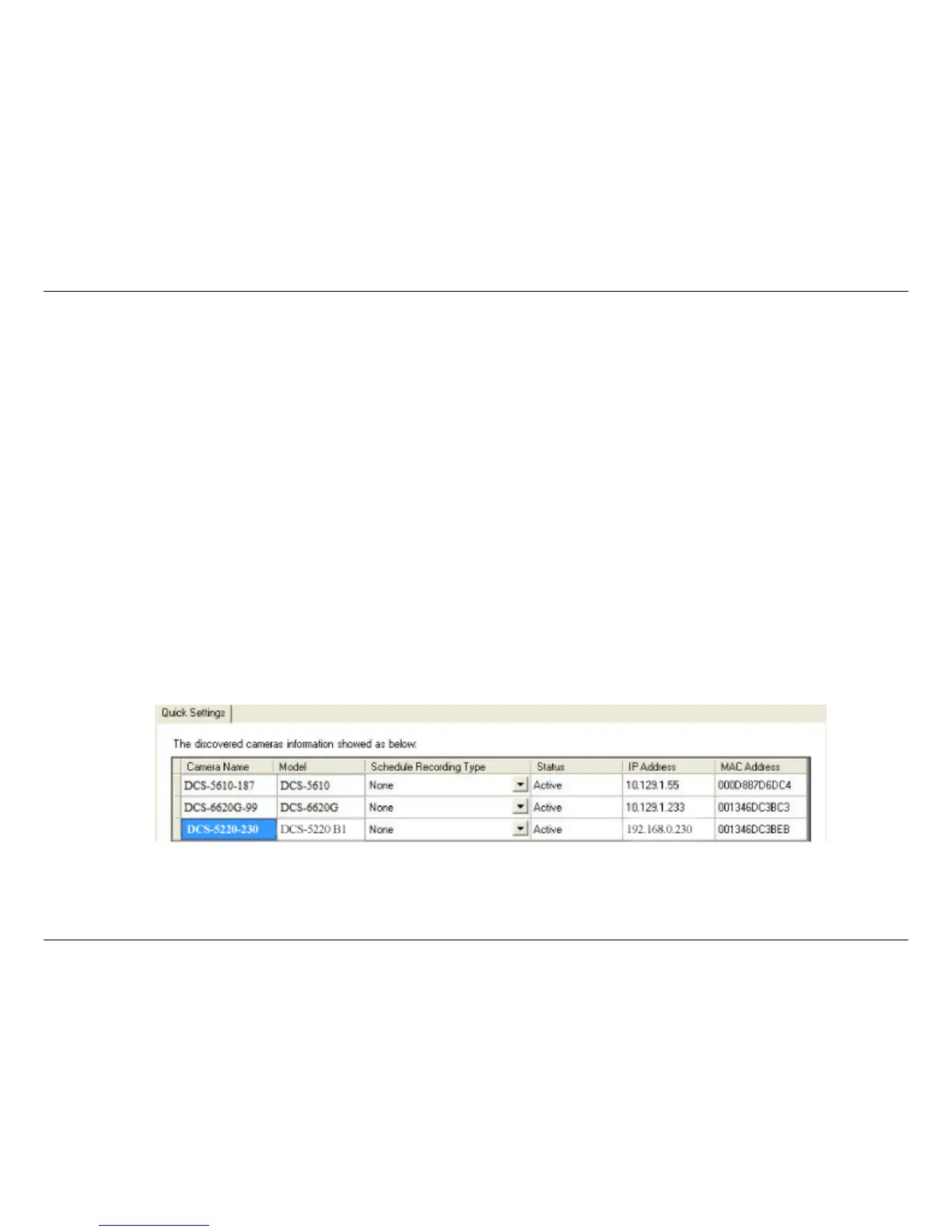

D-ViewCam shows the detected network camera(s) information. You can select the recording mode for each
camera.
• 24/7 Continuous Recording: Continuously records 24 hours a day, 7 days a week.
• 24/7 Motion Detection Recording: Continuously monitors, but only records when motion is detected.
• Ofce Hours Only: Continuously monitors during ofce hours (8:00AM to 6:00PM), and only records when
motion is detected.
• Non-Ofce Hours Only: Continuously monitors during non-ofce hours (6:00PM to 8:00AM), and only records when
motion is detected.
Note: Excluding 24/7 Continuous Recording, all other schedule recording modes can only record when motion is detected. Please refer
to the user manual for more information.
Click Next to continue.

D-Link DCS-5220 Specifications

Operating Environment

operating temperature	0˚ to 40˚C (32˚- 104˚F)
storage temperature	-40˚ to 70˚C (-14˚ - 158˚F)
humidity	Max. 95% RH

Power

external power supply	12V DC 1.5A
power consumption	4.8 Watts

Camera Specifications

cmos sensor	1/4”
minimum illumination	0.5 Lux @ F2.0
viewing angle horizontal	270º
viewing angle vertical	90º

Video and Audio

video resolution at 160x120	Up to 30fps
video resolution at 176x144	Up to 30fps
video resolution at 320x240	Up to 30fps
video resolution at 640x480	Up to 30fps
audio bitrate AAC	16kbps~128kbps
audio bitrate GSM-AMR	4.75kbps~12.2kbps

Weight and Dimensions

width	4.1”
height	4.4”
depth	4.3”
item weight	0.7 lbs
packaging weight	2.9 lbs
