8D-Link DCS-5220 User Manual
Section 1 - Product Overview

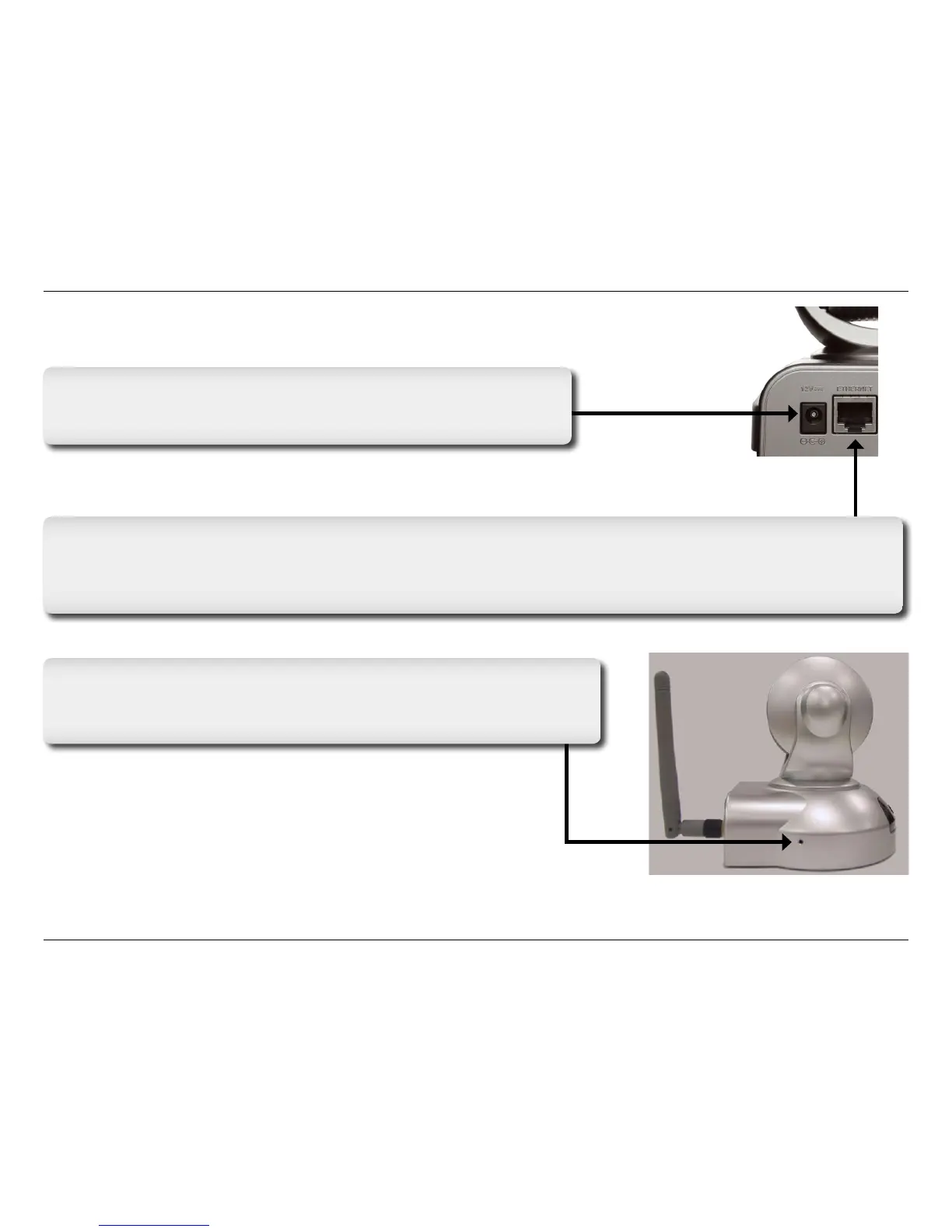

Ethernet Cable Connector
The DCS-5220 features a RJ-45 connector for connections to 10Base-T Ethernet cabling or 100Base-TX Fast
Ethernet cabling. The port supports the NWay protocol, allowing the DCS-5220 to automatically detect or negotiate
the transmission speed of the network.
Reset / Restore Button
Press this button to reset or restore the DCS-5220, please see page 104
for detail.
DC Power Connector
The DC Power input connector is labeled DC 12V with a single jack
socket to supply power to the DCS-5220.
