D-Link DWR-921 User Manual

DWR-921 4G LTE Router
User Manual
Configuring via Web-based Interface
((
On the Wi-Fi / WMM page, you can enable the Wi-Fi Multimedia function.
The WMM function implements the QoS features for Wi-Fi networks. It helps to improve the
quality of data transfer over Wi-Fi networks by prioritizing different types of traffic.
Select the needed action from the drop-down list in the Work mode section to configure the
WMM function.
• Auto: The settings of the WMM function are configured automatically (the value is
specified by default).
• Manual: The settings of the WMM function are configured manually. When this value is
selected, the Access Point and Station sections are displayed on the page.

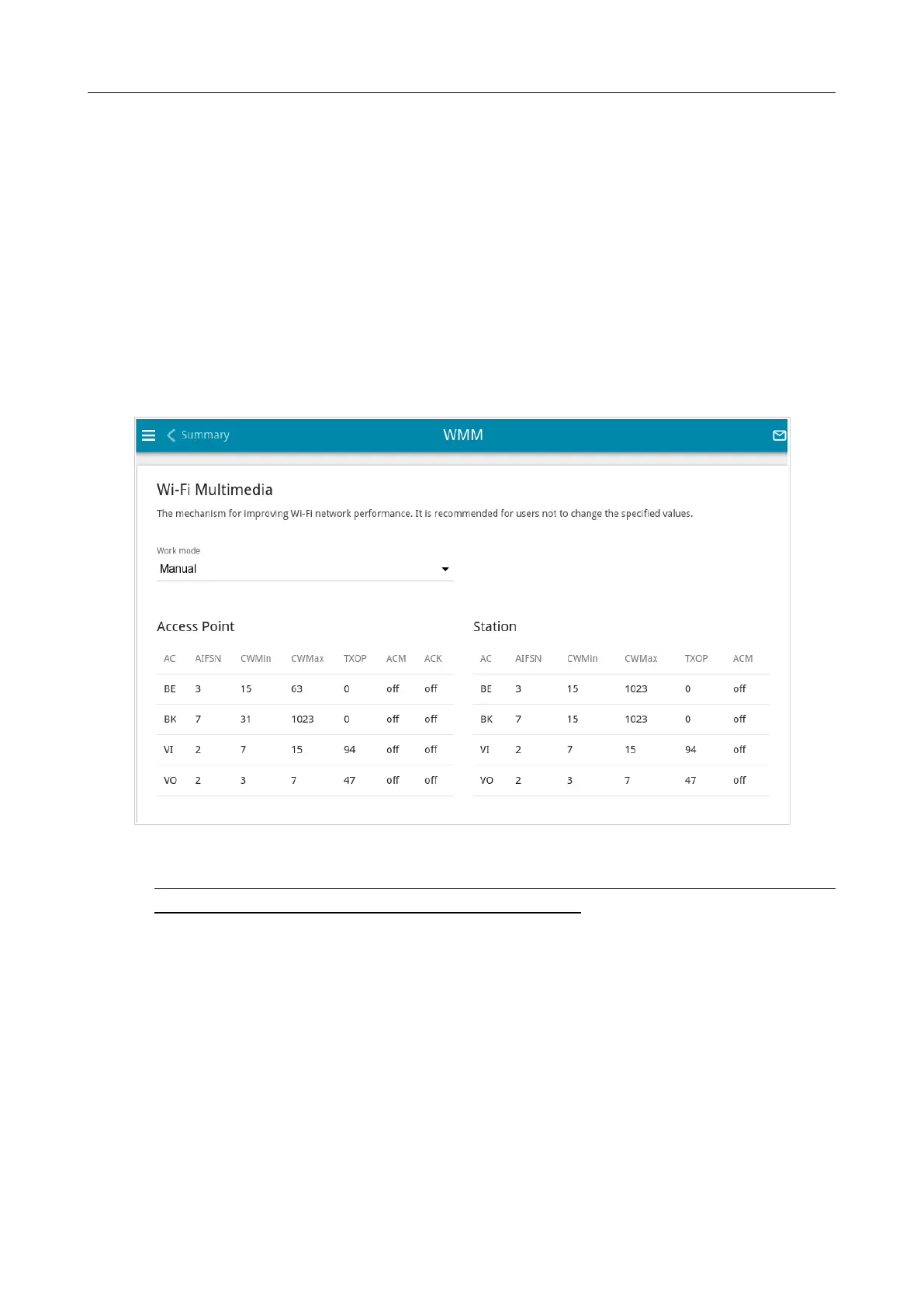

Figure 125. The page for configuring the WMM function.
!
All needed settings for the WMM function are specified in the device's system. Changing
parameters manually may negatively affect your WLAN!
The WMM function allows assigning priorities for four Access Categories (AC):
• BK (Background), low priority traffic (print jobs, file downloads, etc.).
• BE (Best Effort), traffic from legacy devices or devices/applications that do not support
QoS.
• VI (Video).
• VO (Voice).
Page 155 of 255

D-Link DWR-921 Specifications

General

VPN support	L2TP/PPTP/IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Antennas quantity	2
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Certification	CE, Wi-Fi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black, White
LED indicators	3G, LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	111.5 mm
Width	190 mm
Height	23.5 mm
Weight	500 g
