D-Link DWR-921 User Manual

DWR-921 4G LTE Router
User Manual
Configuring via Web-based Interface
Connection of Multimedia Devices
The Multimedia Devices Connection Wizard helps to configure LAN ports or available wireless
interfaces of the router for connecting additional devices, for example, an IPTV set-top box or IP
phone. Contact your ISP to clarify if you need to configure DWR-921 in order to use these devices.
To start the Wizard, on the Home page, select the Connection of Multimedia Devices section.
If you need to select a port or wireless interface in order to use an additional device, left-click the
relevant element in the LAN section (the selected element will be marked with a frame). Then click
the APPLY button.

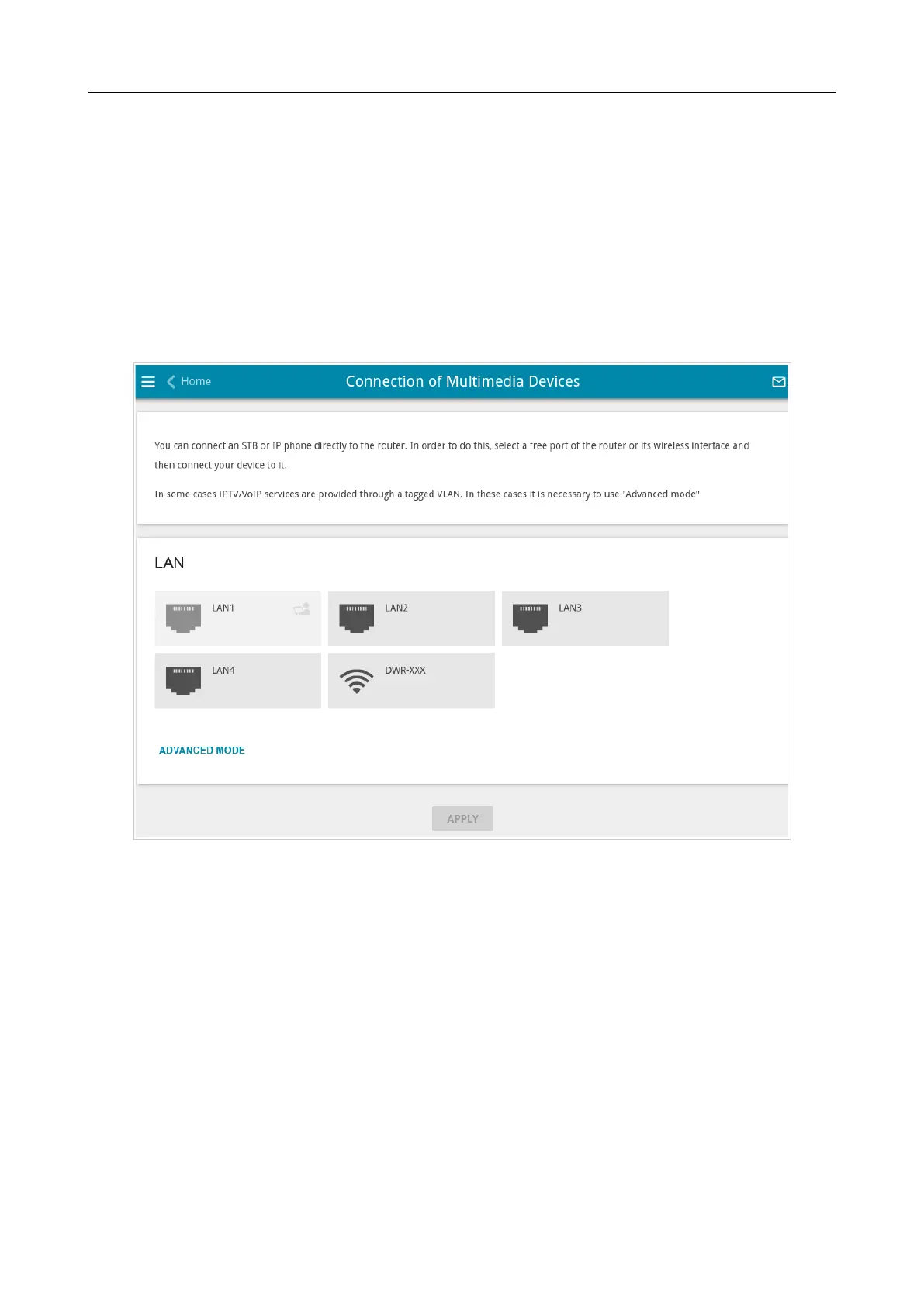

Figure 53. The Multimedia Devices Connection Wizard. The simplified mode.
Page 64 of 255

D-Link DWR-921 Specifications

General

VPN support	L2TP/PPTP/IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Antennas quantity	2
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Certification	CE, Wi-Fi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black, White
LED indicators	3G, LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	111.5 mm
Width	190 mm
Height	23.5 mm
Weight	500 g
