D-Link DWR-921 User Manual

DWR-921 4G LTE Router
User Manual
Configuring via Web-based Interface
If you need to configure a connection via VLAN, click the ADVANCED MODE button.

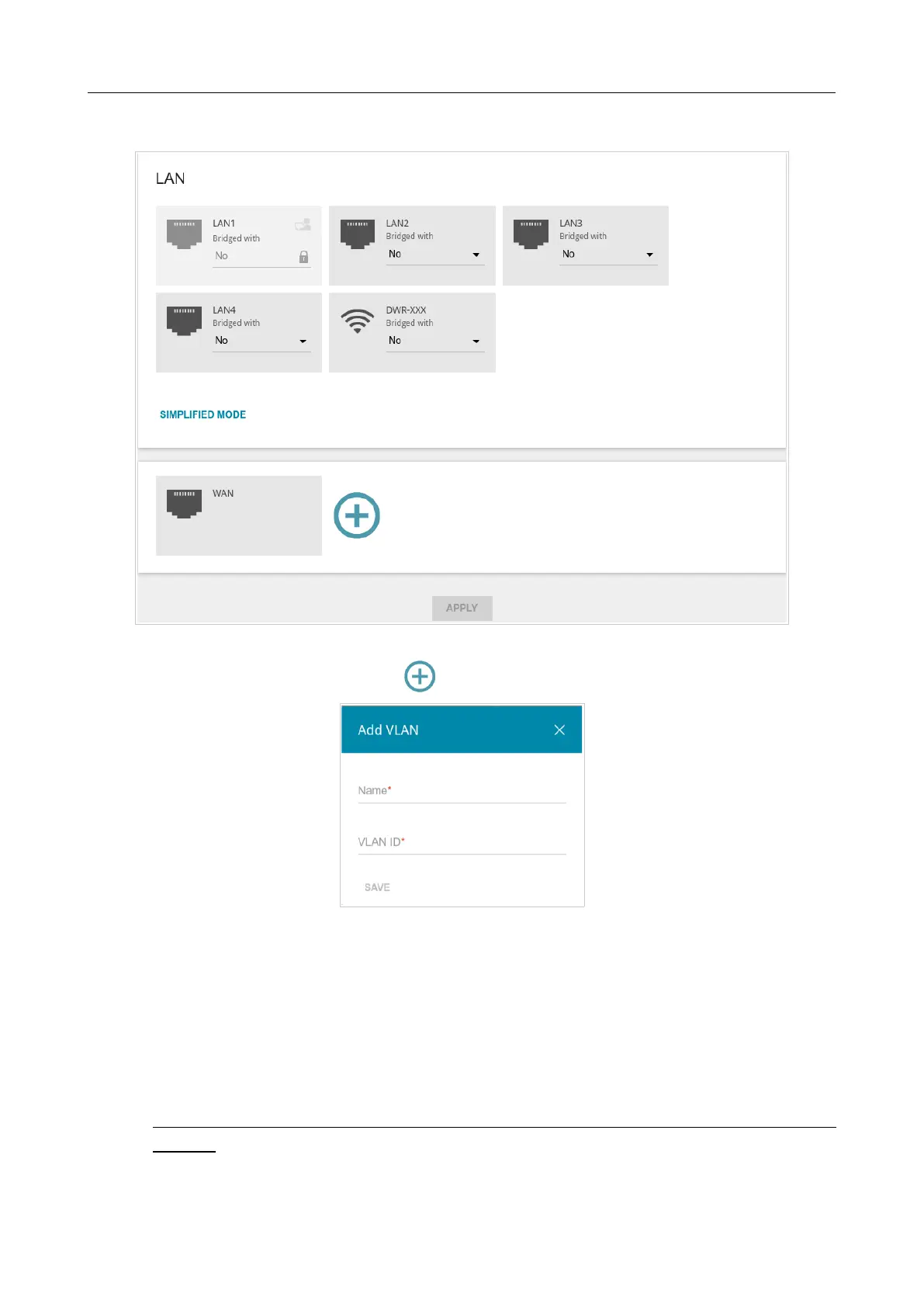

Figure 54. The Multimedia Devices Connection Wizard. The advanced mode.
In the WAN section, click the Add icon ( ).
Figure 55. Adding a connection.
In the opened window, specify a name of the connection for easier identification in the Name field
(you can specify any name). Specify the VLAN ID provided by your ISP and click the SAVE
button.
Then in the LAN section, from the Bridged with drop-down list of the element corresponding to
the LAN port or wireless interface to which the additional device is connected, select the created
connection. Click the APPLY button.
!
The selected port or wireless interface cannot use the default connection to access the
Internet.
To deselect the port or wireless interface in the simplified mode, left-click the selected element (the
frame will disappear) and click the APPLY button.
Page 65 of 255

D-Link DWR-921 Specifications

General

VPN support	L2TP/PPTP/IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Antennas quantity	2
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Certification	CE, Wi-Fi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black, White
LED indicators	3G, LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	111.5 mm
Width	190 mm
Height	23.5 mm
Weight	500 g
