Configuring via Web-based Interface
!)*&/+010
This configuration step is available for the Router mode.
1. On the IPTV page, select the Is an STB connected to the device checkbox.

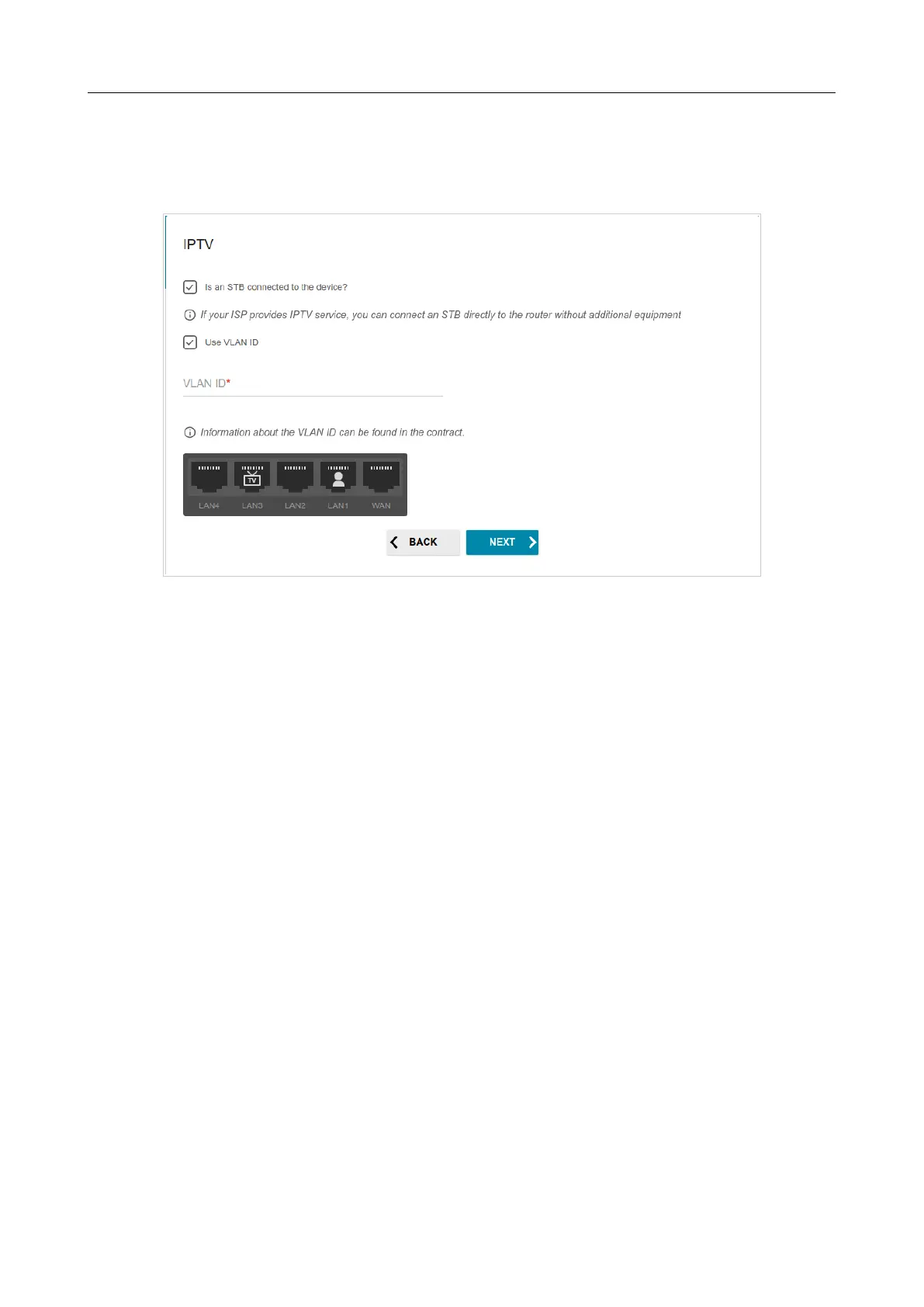

Figure 49. The page for selecting a LAN port to connect an IPTV set-top box.
2. Select a free LAN port for connecting your set-top box.
3. If the IPTV service is provided via a VLAN channel, select the Use VLAN ID checkbox
and fill in the VLAN ID field.
4. Click the NEXT button to continue or click the BACK button to specify other settings.
