D-Link DWR-921 User Manual

DWR-921 4G LTE Router
User Manual
Configuring via Web-based Interface
$(
Select the needed operation mode and click the NEXT button.
Router
In order to connect your device to a wired ISP, on the Device mode page, from the Connection
method list, select the Wired connection value. Then from the Work mode list select the
Router value. In this mode you can configure a WAN connection, set your own settings for the
wireless network, configure LAN ports to connect an STB or VoIP phone, and set your own
password for access to the web-based interface of the device.

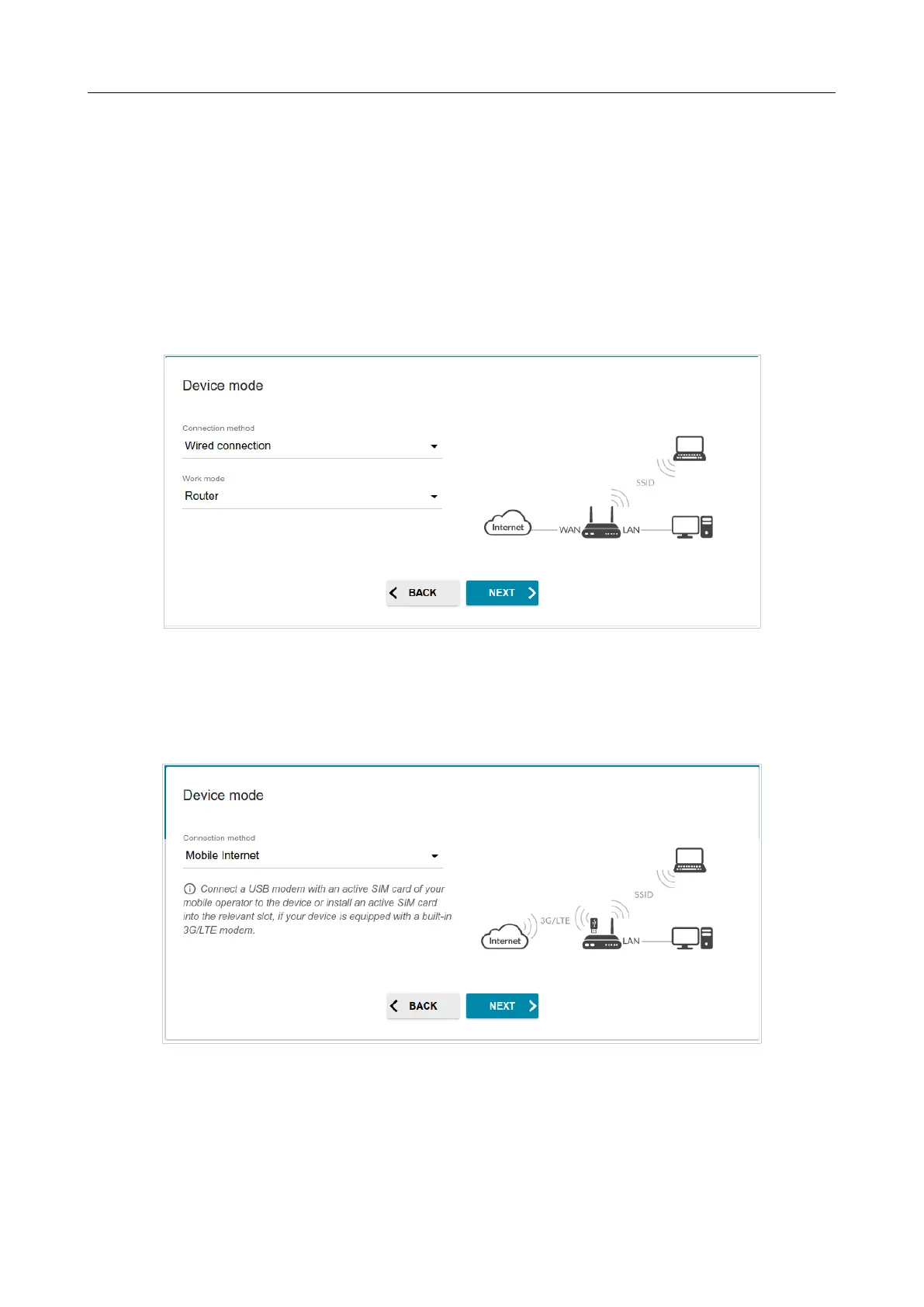

Figure 33. Selecting an operation mode. The Router mode.
In order to connect your device to the network of a 3G or LTE operator, on the Device mode
page, from the Connection method list, select the Mobile Internet value. In this mode you can
configure an LTE WAN connection, set your own settings for the wireless network, and set your
own password for access to the web-based interface of the device.
Figure 34. Selecting an operation mode. The Mobile Internet mode.
Page 43 of 255

D-Link DWR-921 Specifications

General

VPN support	L2TP/PPTP/IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Antennas quantity	2
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Certification	CE, Wi-Fi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black, White
LED indicators	3G, LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	111.5 mm
Width	190 mm
Height	23.5 mm
Weight	500 g
