D-Link DWR-921 User Manual

DWR-921 4G LTE Router
User Manual
Configuring via Web-based Interface
Access Point or Repeater
In order to connect your device to a wired router for adding a wireless network to the existing local
network, on the Device mode page, from the Connection method list, select the Wired
connection value. Then from the Work mode list select the Access point value. In this mode
you can change the LAN IP address, set your own settings for the wireless network, and set your
own password for access to the web-based interface of the device.

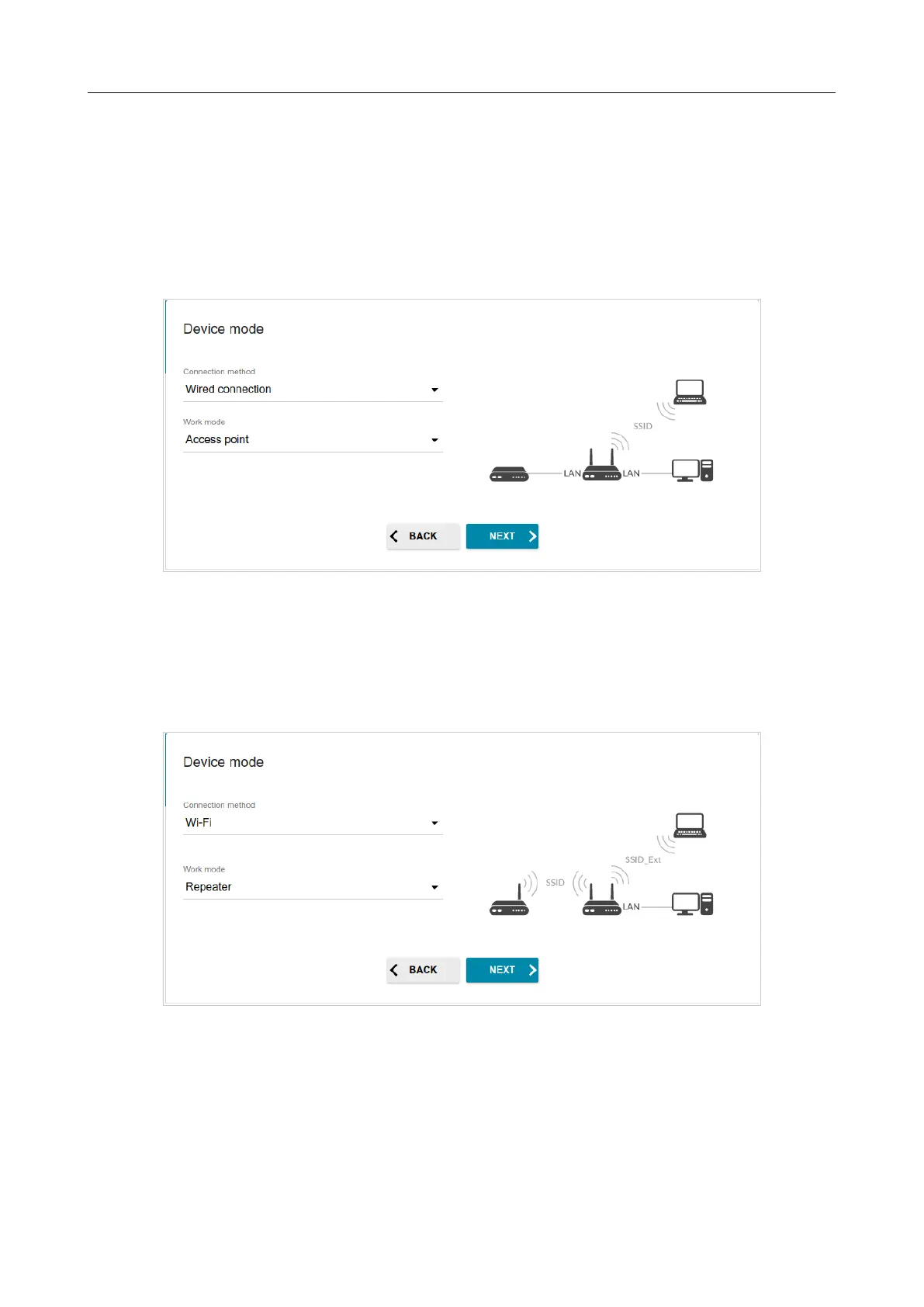

Figure 36. Selecting an operation mode. The Access point mode.
In order to connect your device to a wireless router for extending the range of the existing wireless
network, on the Device mode page, from the Connection method list, select the Wi-Fi value.
Then from the Work mode list select the Repeater value. In this mode you can change the LAN
IP address, connect your device to another access point, set your own settings for the wireless
network, and set your own password for access to the web-based interface of the device.
Figure 37. Selecting an operation mode. The Repeater mode.
Page 45 of 255

D-Link DWR-921 Specifications

General

VPN support	L2TP/PPTP/IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Antennas quantity	2
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Certification	CE, Wi-Fi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black, White
LED indicators	3G, LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	111.5 mm
Width	190 mm
Height	23.5 mm
Weight	500 g
