D-Link DWR-921 User Manual

DWR-921 4G LTE Router
User Manual
Configuring via Web-based Interface
CHAPTER 4. CONFIGURING VIA WEB-BASED
INTERFACE
Initial Configuration Wizard

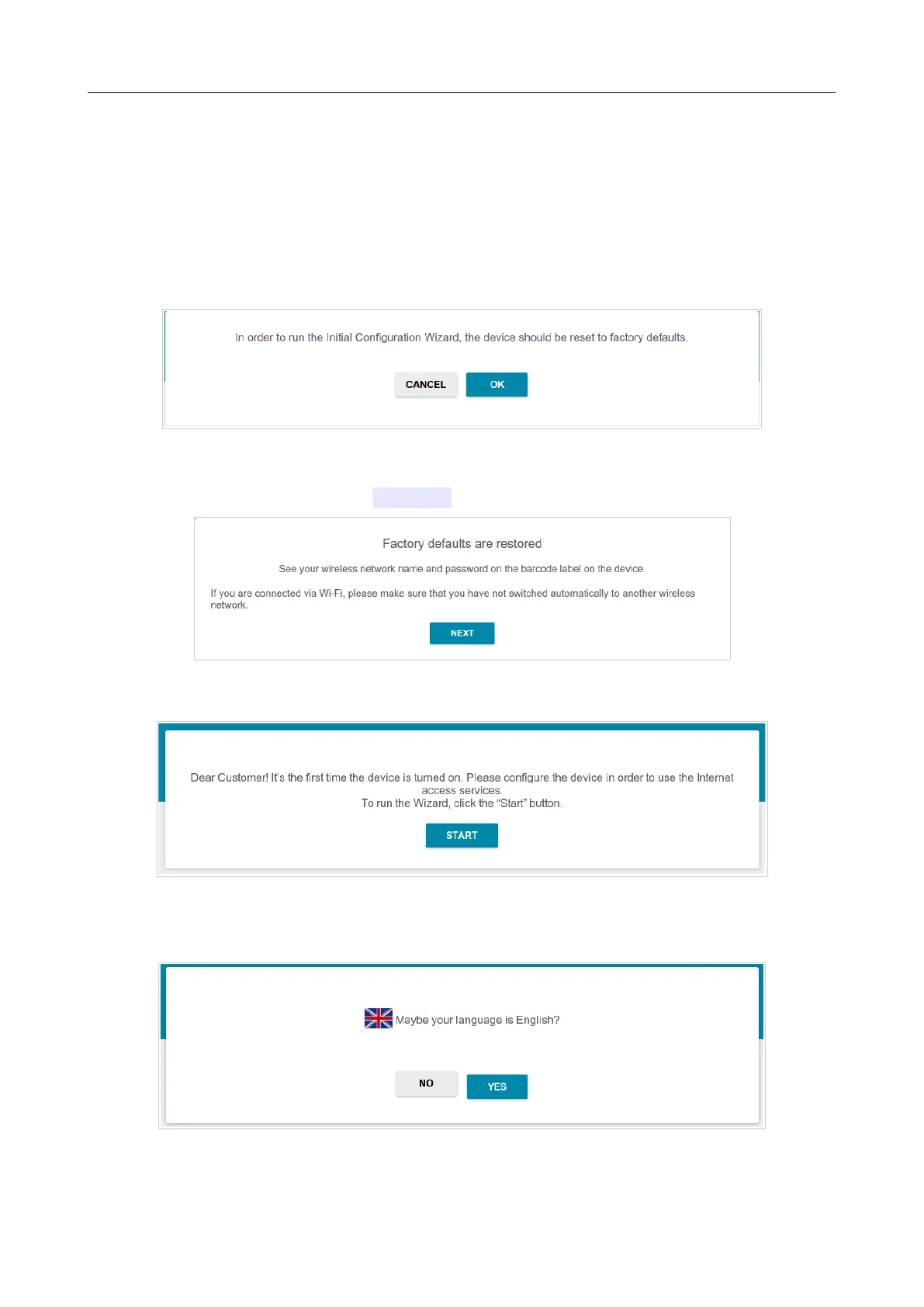

To start the Initial Configuration Wizard, go to the Initial Configuration section. On the opened
page, click the OK button and wait until the factory default settings are restored.
Figure 28. Restoring the default settings in the Wizard.
If you perform initial configuration of the router via Wi-Fi connection, please make sure that you
are connected to the wireless network DWR-921 and click the NEXT button.
Figure 29. Checking connection to the wireless network.
Click the START button.
Figure 30. Starting the Wizard.
On the opened page, click YES in order to leave the current language of the web-based interface or
click NO to select another language.
Figure 31. Selecting a language.
Page 41 of 255

D-Link DWR-921 Specifications

General

VPN support	L2TP/PPTP/IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Antennas quantity	2
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Certification	CE, Wi-Fi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black, White
LED indicators	3G, LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	111.5 mm
Width	190 mm
Height	23.5 mm
Weight	500 g
