D-Link DWR-921 User Manual

DWR-921 4G LTE Router
User Manual
Configuring via Web-based Interface
*41""
On the Advanced / ALG/Passthrough page, you can allow the router to use RTSP, enable the
SIP ALG and PPPoE/PPTP/L2TP/IPsec pass through functions.
SIP is used for creating, modifying, and terminating communication sessions. This protocol allows
telephone calls via the Internet.
RTSP is used for real-time streaming multimedia data delivery. This protocol allows some
applications to receive streaming audio/video from the Internet.
The PPPoE pass through function allows PPPoE clients of computers from your LAN to connect to
the Internet through connections of the router.
The PPTP pass through, L2TP pass through and IPsec pass through functions allow VPN PPTP,
L2TP and IPsec traffic to pass through the router so that clients from your LAN can establish
relevant connections with remote networks.

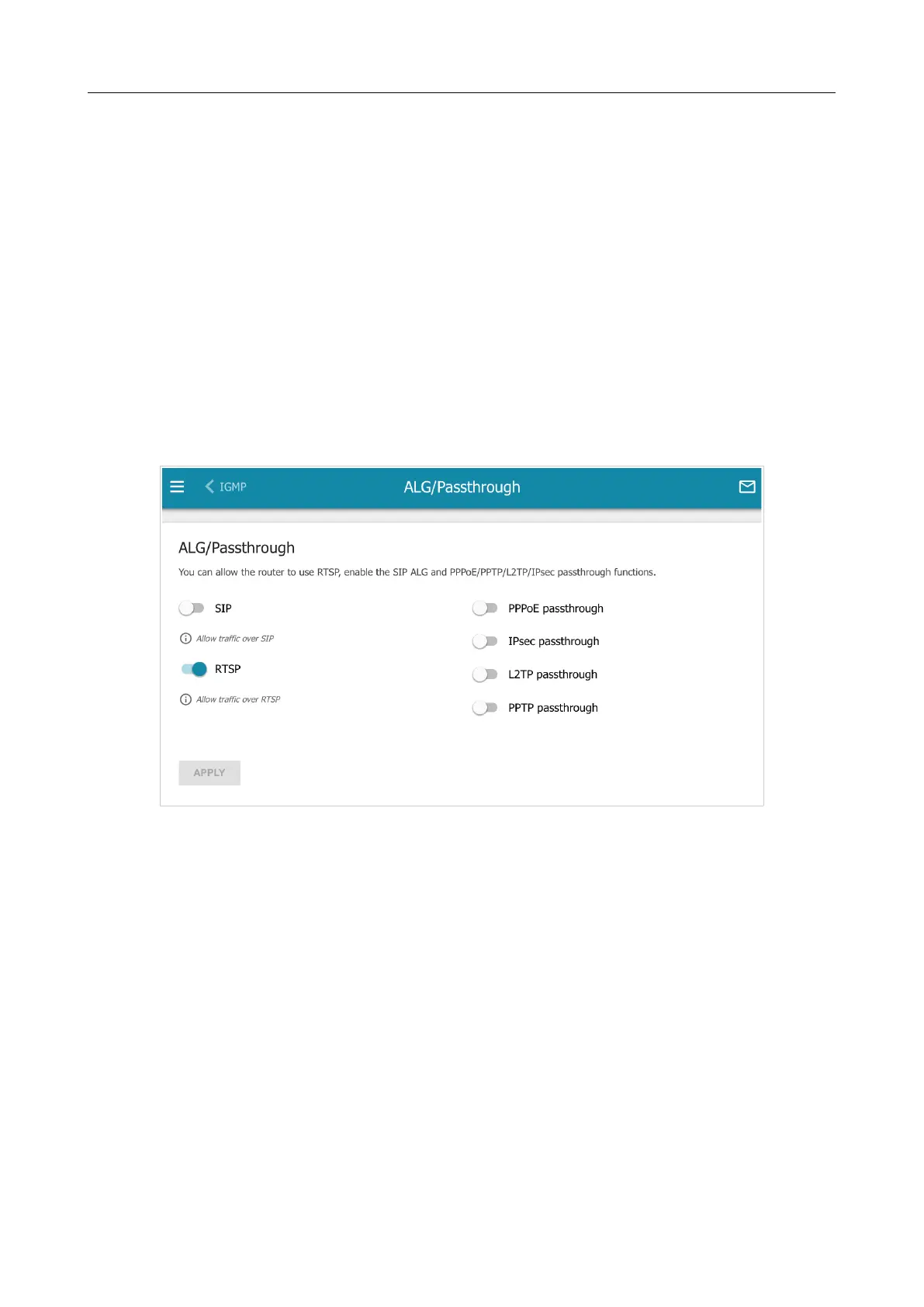

Figure 156. The Advanced / ALG/Passthrough page.
Page 198 of 255

D-Link DWR-921 Specifications

General

VPN support	L2TP/PPTP/IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Antennas quantity	2
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Certification	CE, Wi-Fi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black, White
LED indicators	3G, LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	111.5 mm
Width	190 mm
Height	23.5 mm
Weight	500 g
