D-Link DWR-921 User Manual

DWR-921 4G LTE Router
User Manual
Configuring via Web-based Interface
Connections Setup
In this menu you can configure basic parameters of the router's local area network and configure
connection to the Internet (a WAN connection).
&
On the Connections Setup / WAN page, you can create and edit connections used by the router.
By default, a Dynamic IPv4 connection is configured in the system. It is assigned to the WAN
port of the router.

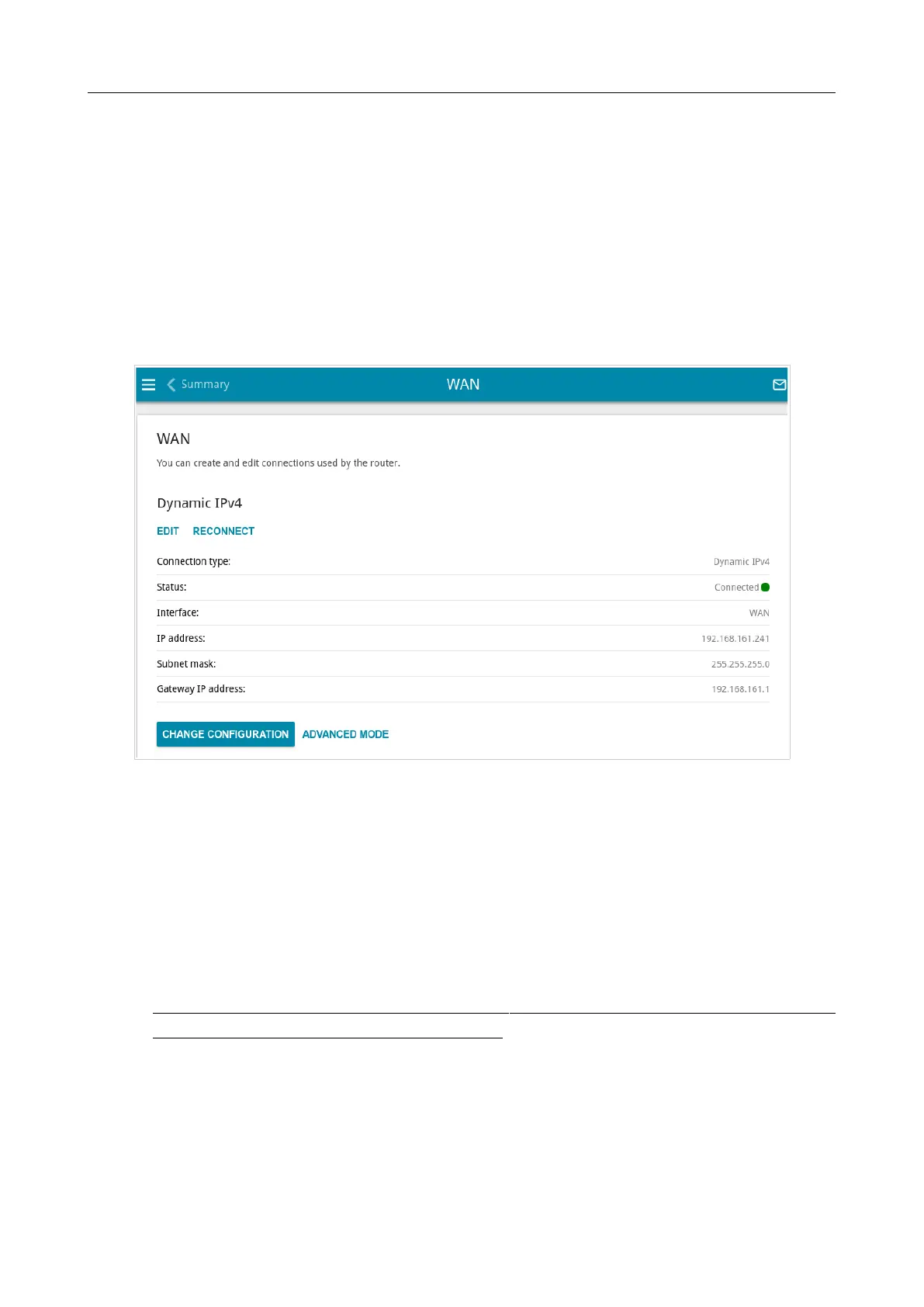

Figure 64. The Connections Setup / WAN page. The simplified mode.
To edit an existing connection, click the EDIT button. On the opened page, change the needed
parameters and click the APPLY button.
To disconnect a connection and establish it again, click the RECONNECT button.
To remove an existing connection and create a new one, click the CHANGE CONFIGURATION
button. Upon that the connection creation page opens.
To create several WAN connections, go to the advanced mode. To do this, click the ADVANCED
MODE button.
!
When connections of some types are created, the Connections Setup / WAN page is
automatically displayed in the advanced mode.
Page 75 of 255

D-Link DWR-921 Specifications

General

VPN support	L2TP/PPTP/IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Antennas quantity	2
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Certification	CE, Wi-Fi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black, White
LED indicators	3G, LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	111.5 mm
Width	190 mm
Height	23.5 mm
Weight	500 g
