D-Link DWR-921 User Manual

DWR-921 4G LTE Router
User Manual
Configuring via Web-based Interface
If upon one of the operations described above you have entered an incorrect value in the PIN code
field three times (the number of remaining attempts is displayed in the PIN input window), the SIM
card inserted into the LTE modem is blocked.

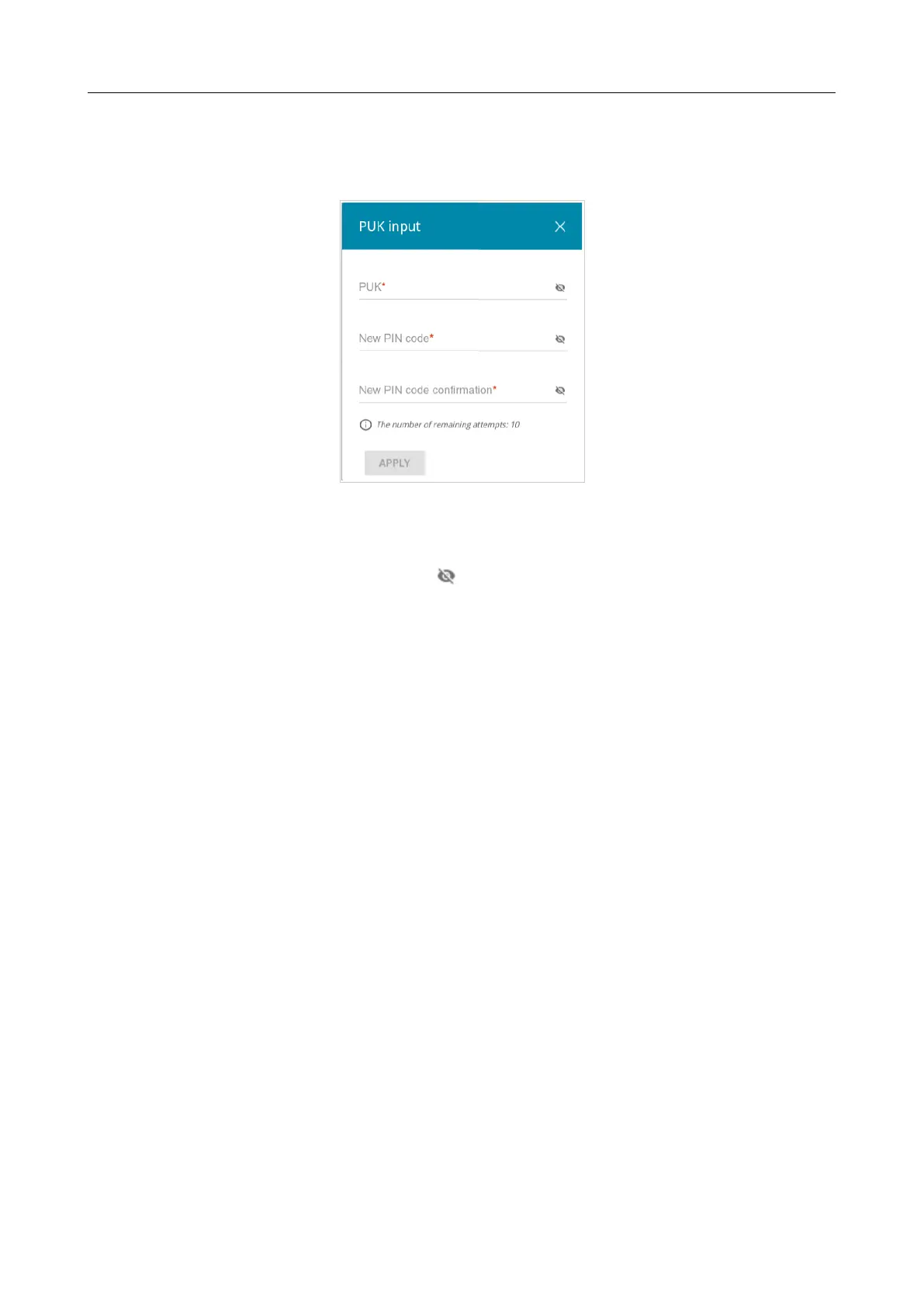

Figure 134. The LTE Modem / Modem 1 / Basic Settings page. The window for PUK code input.
For further use of the card, click the PUK INPUT button, enter the PUK code in the relevant field,
and then specify a new PIN code for your SIM card in the New PIN code and New PIN code
confirmation fields. Click the Show icon ( ) to display the entered values. Click the APPLY
button.
Click the USSD button to go to the LTE Modem / Modem 1 / USSD page.
Page 169 of 255

D-Link DWR-921 Specifications

General

VPN support	L2TP/PPTP/IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Antennas quantity	2
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Certification	CE, Wi-Fi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black, White
LED indicators	3G, LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	111.5 mm
Width	190 mm
Height	23.5 mm
Weight	500 g
