DXS-3350SR Gigabit Layer 3 Switch

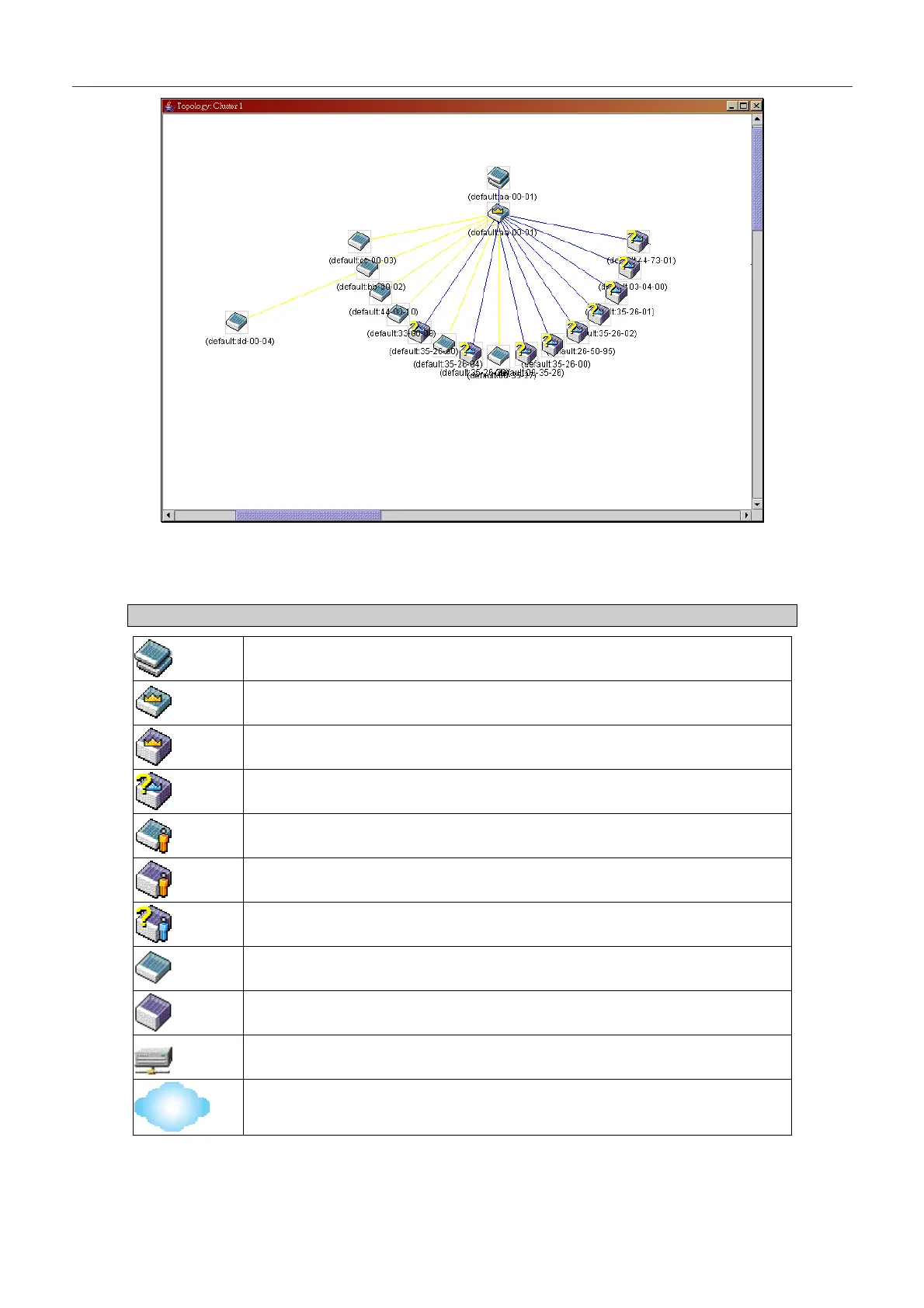

Figure 10- 5. Topology view
This screen will display how the devices within the Single IP Management Group are connected to other groups and
devices. Possible icons in this screen are as follows:
Icon Description
Group
Layer 2 commander Switch
Layer 3 commander Switch
Commander Switch of other group
Layer 2 member Switch.
Layer 3 member Switch
Member Switch of other group
Layer 2 candidate Switch
Layer 3 candidate Switch
Unknown device
Non-SIM devices
