DXS-3350SR Gigabit Layer 3 Switch

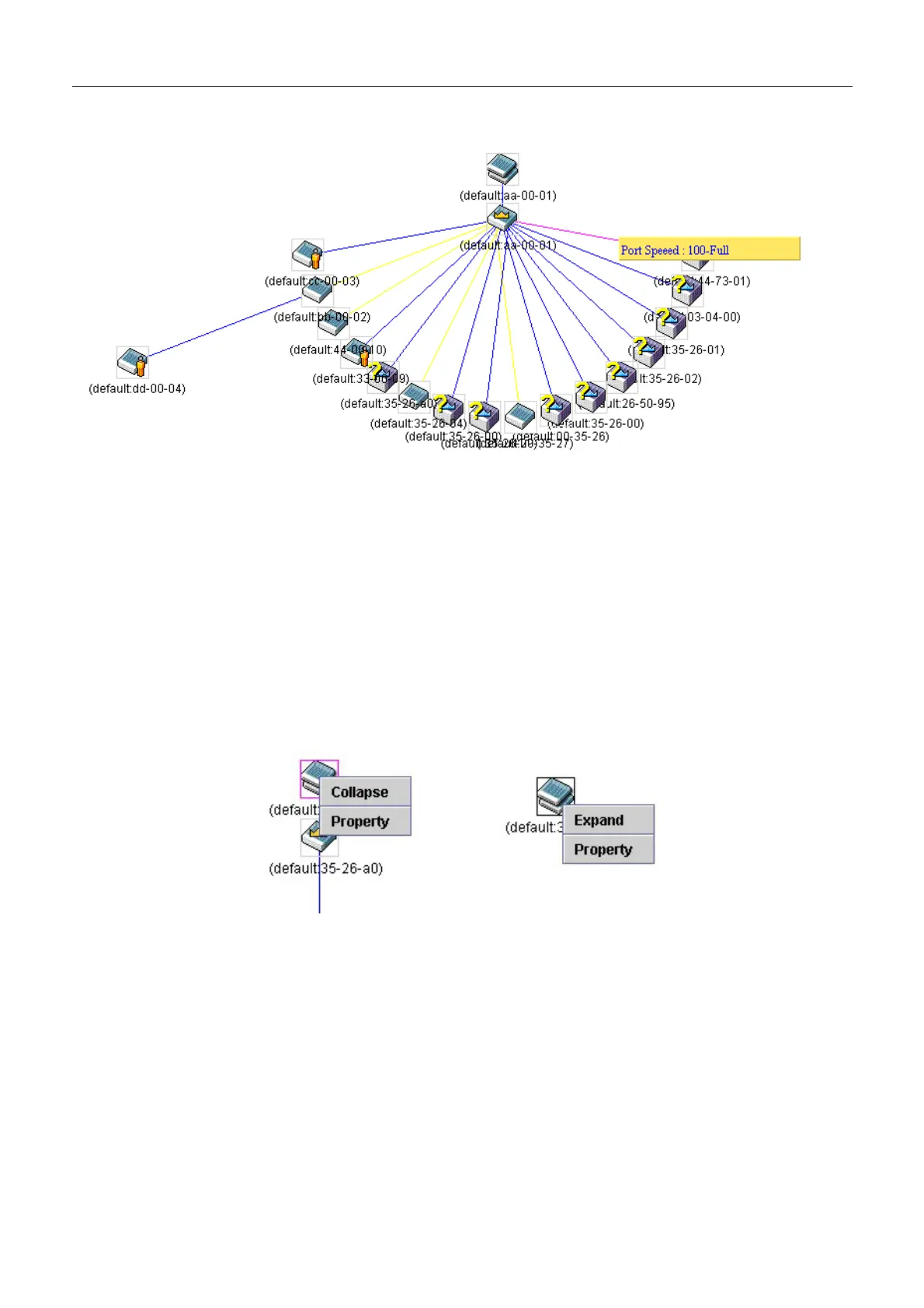

Figure 10- 7. Port Speed Utilizing the Tool Tip
Right Click
Right clicking on a device will allow the user to perform various functions, depending on the role of the Switch in the SIM
group and the icon associated with it.
Group Icon
Figure 10- 8. Right Clicking a Group Icon
The following options may appear for the user to configure:
Collapse - to collapse the group that will be represented by a single icon.
Expand - to expand the SIM group, in detail.
Property - to pop up a window to display the group information.
256
